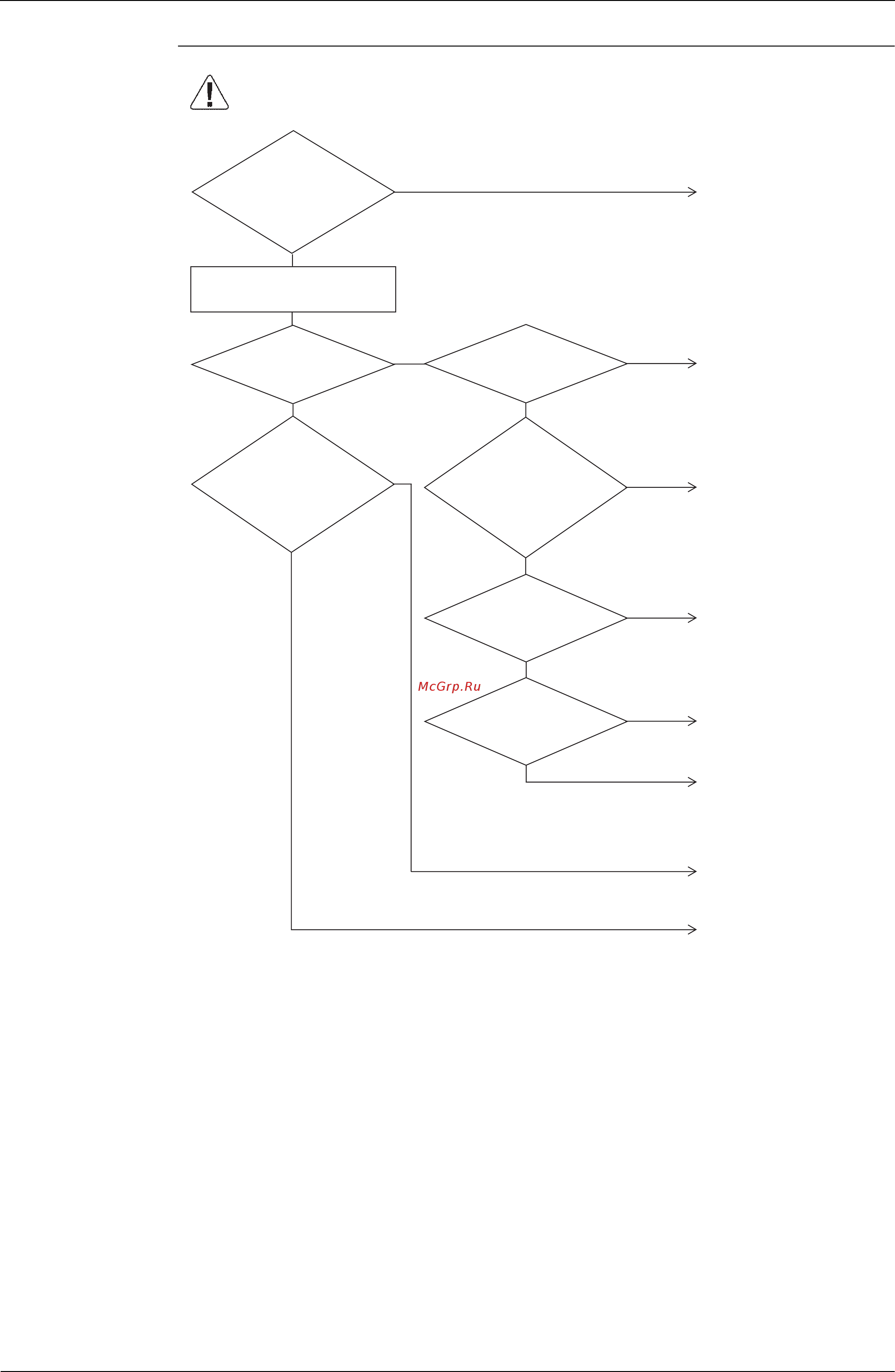

Troubleshooting by Indication on the Remote Controller SiE39-404
220 Troubleshooting
Troubleshooting
(V2821)
Replace K1M.
Repair wiring.
Turn on again.
Replace the outdoor unit
PC board (A1P).
Turn K1M ON.
NO
Is
220 ~ 240 V of
power reaching the
K1M coil?
Is
220 ~ 240 V
at the connector X1A of
inverter PC
board.
Replace the inverter PC
board.
Replace the inverter PC
board.
Does
the voltage
between terminals
P2(or P3) and N3 gradually
rise to 556 VDC (Y1)
after turning
on?
Monitor field power
supply.
Replace the inverter
PC
b
oard.
The voltage
between the P2
(or P3) and N3 terminals
is380 VDC (Y1) or
more when the
compressor is
running.
Is
connection
wire connected
between the connector
X21A and X6A?
Is
220 ~ 240 V
at the connector X1A of
outdoor PC board
side?
Check the transmission
wiring between the
outdoor unit PC board
and inverter unit.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
NO
NO
NO
YES
YES
YES
YES
YES
NO
NO
NO
YES
YES
