Troubleshooting (OP: Central Remote Controller) SiE39-404
236 Troubleshooting
3. Troubleshooting (OP: Central Remote Controller)
3.1 “UE” Malfunction of Transmission Between Central
Remote Controller and Indoor Unit
Remote
Controller
Display
UE
Applicable
Models
All models of indoor units
RXYQ5~48M
Method of
Malfunction
Detection
Microcomputer checks if transmission between indoor unit and central remote controller is
normal.
Malfunction
Decision
Conditions
When transmission is not carried out normally for a certain amount of time
Supposed
Causes
Malfunction of transmission between optional controllers for centralized control and indoor unit
Connector for setting master controller is disconnected.
Failure of PC board for central remote controller
Defect of indoor unit PC board

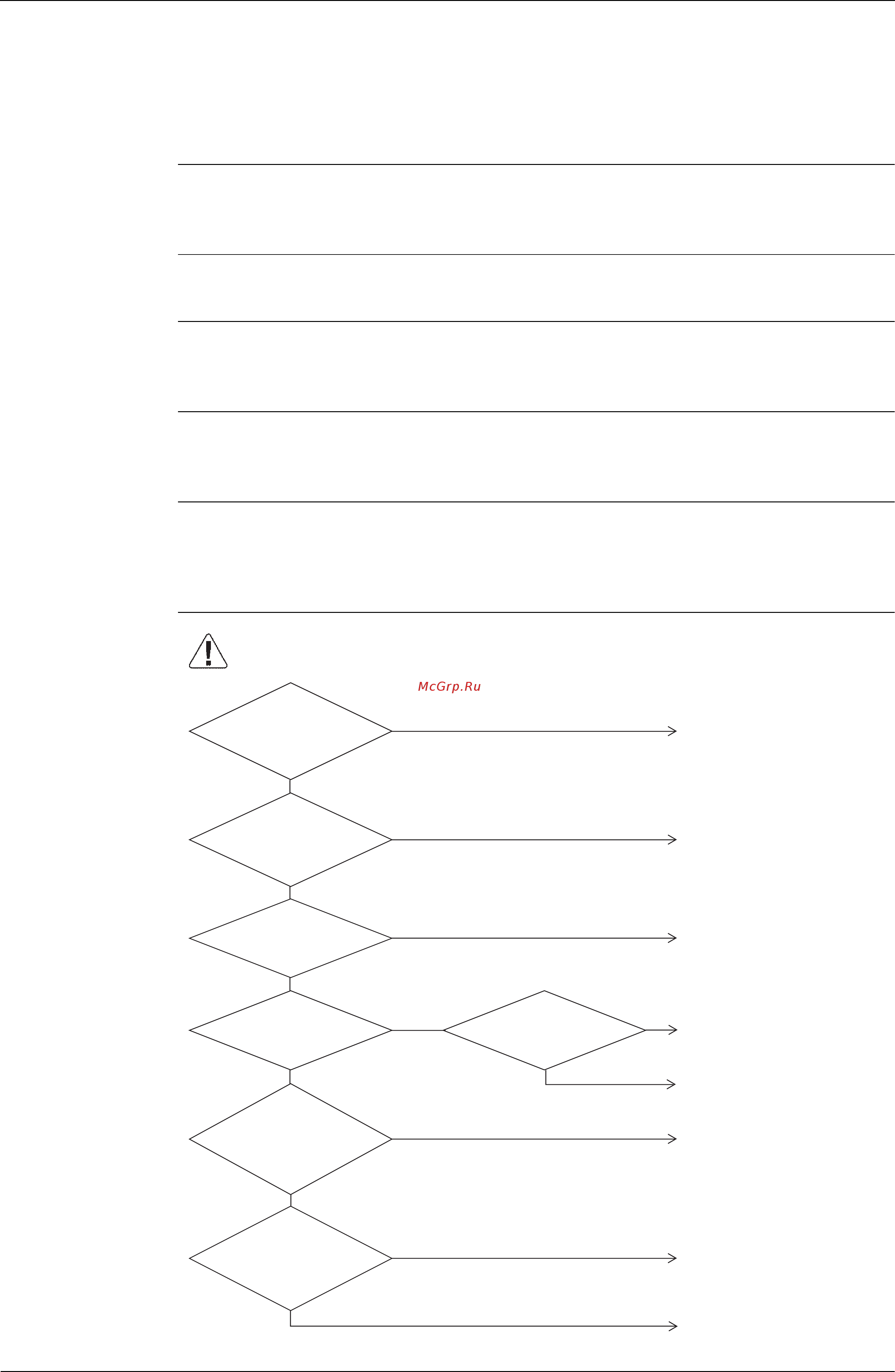

Troubleshooting
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Caution
Is the
power supply turned
on for indoor units displaying
malfunction?
Is
transmission wiring
disconnected or wired
incorrectly?
Is the
transmission wiring
with the master controller
disconnected or wired
incorrectly?
Is the
master controller's
connector for setting
master controller
disconnected?
Set the group No. correctly.
Replace indoor unit PC
board.
Fix the wiring correctly.
Fix the wiring correctly.
Connect the connector
correctly.
Replace the central PC board.
Reset power supply
sim
ultaneously for all optional
controllers for centralized
control.
Turn indoor unit's power
supply.
Has
an indoor unit once
connected been remove
or itsaddress
changed?
Is the group
No. of malfunctioning
indoor unitsset?
Is transmission
with all indoor units
malfunctioning?
(V2832)
YES
YES
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
NO
