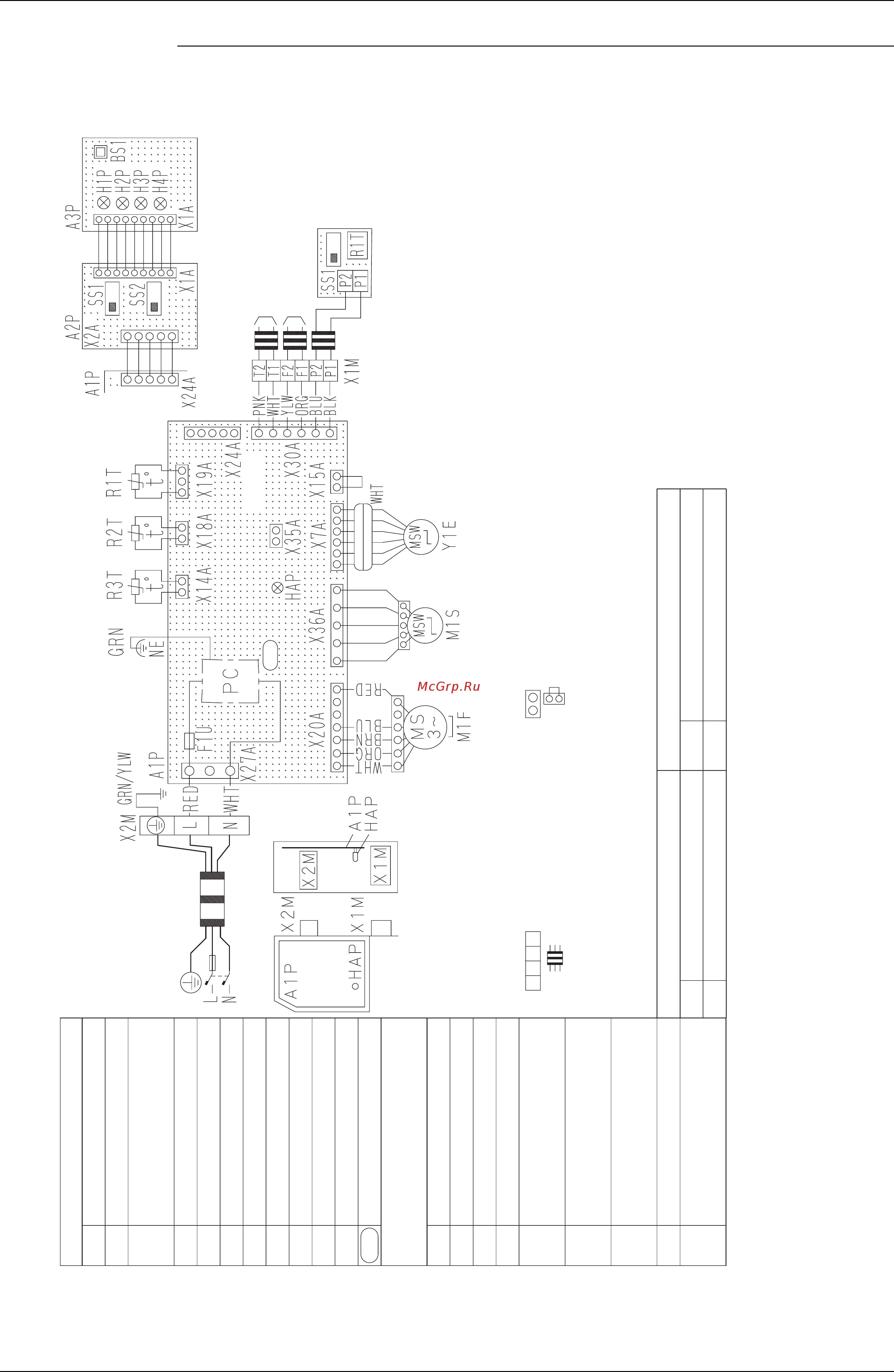

SiE39-404 Wiring Diagrams for Reference
Appendix 285
FXAQ20M / 25M / 32MVE / 40M / 50M / 63MVE
3D034206A
A1P
F1U
HAP
M1S
M1F
R1T
R2T
R3T
X1M
X2M
Y1E
PC
Printed circuit board
Fuse (훾, 3A, 250V)
Light emitting diode
(Service monitor-green)
Motor (Swing flap)
Motor (Indoor fan)
Thermistor (Air)
Thermistor (Coil liquid pipe)
Thermistor (Coil gas pipe)
Ter minal block (Control)
Ter minal block (Power)
Electronic expansion valve
Power circuit
Indoor unit
A2P
A3P
BS1
H1P
H2P
H3P
H4P
SS1
SS2
Printed circuit board
Printed circuit board
Push botton (On/off)
Light emitting diode (On-red)
Light emitting diode
(Timer-green)
Light emitting diode
(Filter sign-red)
Light emitting diode
(Defrost-orange)
Selector switch (Main/sub)
Selector switch
(infrared remote control)
Receiver/Display unit (Attached to
infrared remote control
R1T
SS1
Thermistor (Air)
Selector switch (Main/sub)
Wired remote control
X15A
X35A
Connector (Float s
witch)
Connector (Group control ad
aptor)
Connector for optional parts
Notes:
1. : Terminal : Connector
: Field wiring : Connector
2. In case using central remote control, connect it to the unit in
accordance with the attached installation manual.
3. Symbolsshowsas follows: RED: red, WHT: white, GRN: green,
PNK: pink, YLW: yellow, BLK: black, ORG: orange, BRN: brown,
BLU: blue
4. When connecting the input wires from outside,
forced off or on/off control operation can be
selected by remote control. In details, refer to the
inst
allation manual attached the unit.
5. Remote control model variesaccording to the
combination system, confirm engineering dataand
catalogs, etc. before connecting.
6. Confirm the method of setting the selector switch
(SS1, SS2) of wired remote control and infrared
remote control by installation manual and
engineering data, etc.
7. X24A is connected when the wiress remote control
kit isbeing used.
Transmission wiring
central remote control
Note: 2
Note: 4
Input from outside
Receiver/display unit
(infrared remote control)
Note: 7
Note: 7
PC
Wired remote
control
Power supply
Side Front
Control box
(Indoor unit)
220-240V
~
50Hz
220V
~
60Hz
