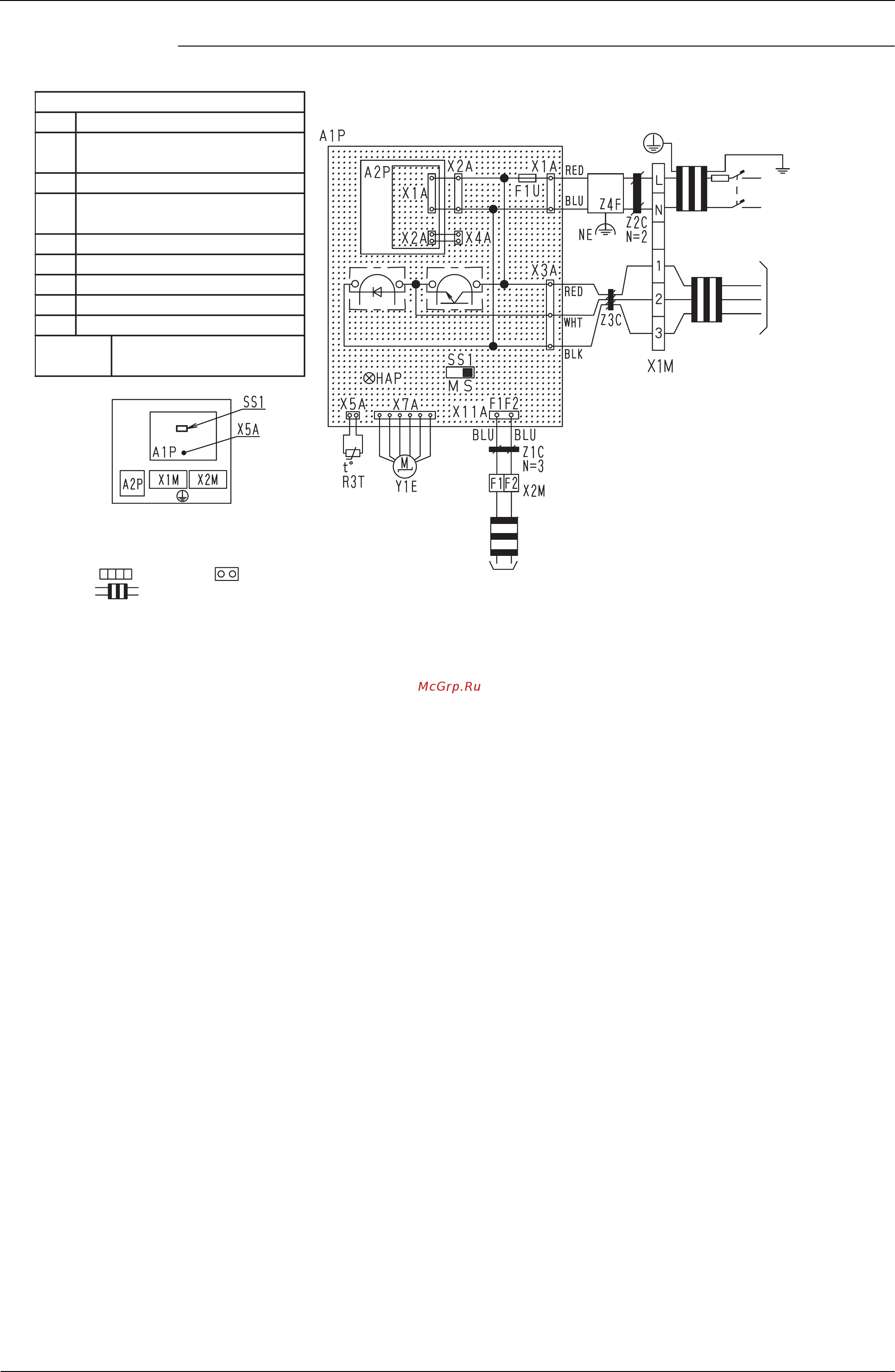

Wiring Diagrams for Reference SiE39-404
292 Appendix
BEVQ71M / 100M / 125MVE
3D044901A
A1P
A2P
F1U
HAP
R3T
SS1
X1M
X2M
Y1E
Printed circuit board assy
Power supply printed circuit
board assy (220-240V/16V)
Fuse (훾, 10A, 250V)
Light emitting diode
(Service monitor-green)
Thermistor (Gas)
Selector switch (M/S)
Terminal strip (Power)
Terminal strip (Transmission)
Electronic expansion valve
Z1C • Z2C
Z3C • Z4C
Noise filter
Notes:
1. : Terminal, : Connector
2. : Field wiring.
3. This wiring diagram only shows the BEV unit.
See the wiring diagramsand installation manuals for the wiring and settings for the indoor, outdoor, and
BSunits.
4. See the indoor unit’s wiring diagram when installing optional parts for the indoor unit.
5. Only one indoor unit may be connected to the BEV unit.
See the indoor unit’s wiring diagram for when connecting the remote control.
6. Alwaysuse the sky air connection adapter for the indoor unit when us
ing a central control unit.
Refer to the m
anual attached the unit when connecting.
7. Cool/heat changeover of indoor units connected to BEV unit cannot be carried out unless they are
connected to BSunit.
In case of asystem with BEV unit only, cool/heat selector is required.
8. Set the SS1 to “M” only for the BEV unit connected to the indoor unit which is to have cool/heat switching
capability, when connecting the BSunit.
The “
M/S” on the SS1 stands for “Main/
sub”.
This isset to “S” when shipped from the factory.
9. Connect the attached thermistor to the R3T.
10. Symbolsshow as follows. (BLU: blue, RED: red, WHT: white, BLK: black)
Power supply
To outdoor unit
Control box
To indoor unit
50
~
220-240V
60
~
220-240V
BEV unit
