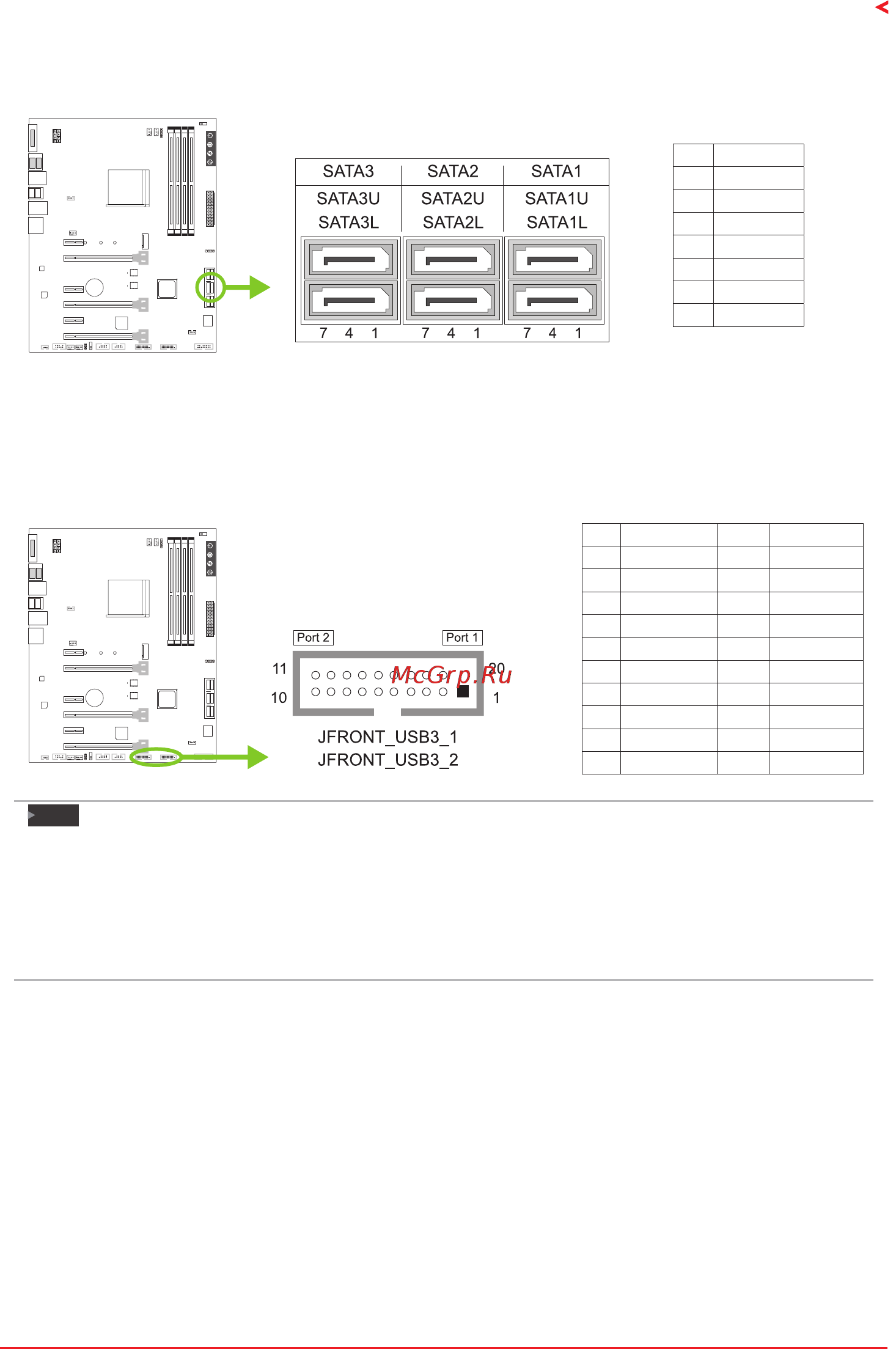

SATA1/SATA2/SATA3: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

JFRONT_USB3_1/2: Header for USB 3.1 Gen1 (5Gb/s) Ports at Front Panel

This header allows user to add addional USB ports on the PC front panel, and also can be

connected with a wide range of external peripherals.

• JFRONT_USB3_2 connector : Support Lightning Charger up to 12V/1.5A output and

APPLE mode (5V/2.4A).

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

Note



Pleasenotethatthechargingvoltagewillbechangingwiththebaerycondion.



PleasenotethatthechargingampereisdependedontheFrontPanelUSB3.1Gen1cable(Tradional

cableisonly900mA)



LightningChargerfuncononlyforJFRONT_USB3_2connector,andthisJFTONT_USB3_2connector

nosupportACPI-S3/S4funcon.



PleaserefertoChapter3.3formoredetailLighngcharger(QuickCharge2.0)sowareseng.
