Biostar X370GT7 Версия 5.x [52/83] 2 散热片

8 | 第二章: 硬件安装

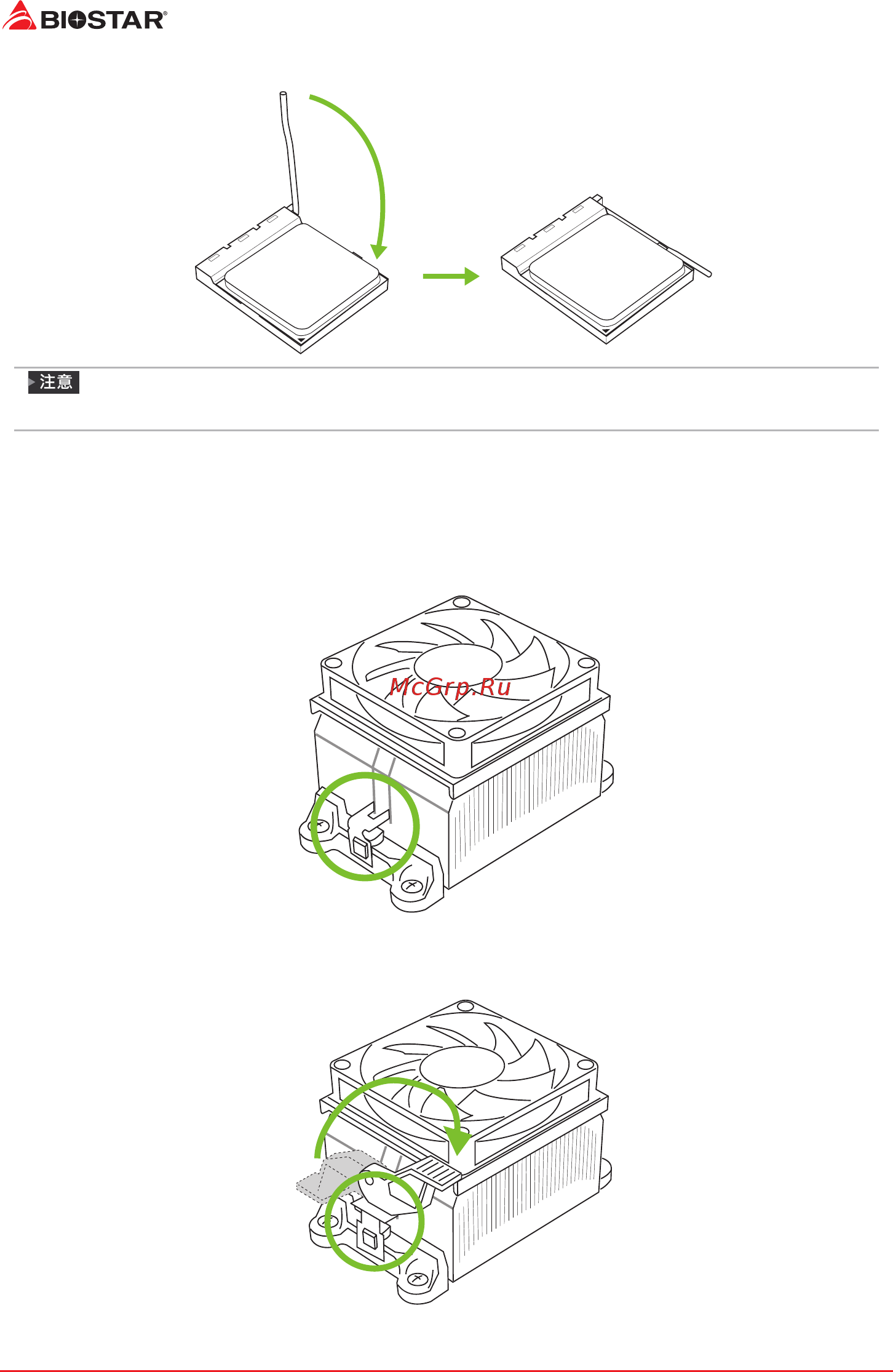

步骤4: 固定CPU，将拉杆闭合。

请于拔除CPU插槽之前，关闭电源。

2�2 散热片

<类型A>

步骤 1: 将散热片和风扇组件放置在支架上。散热片夹对准插座固定凸耳，再将弹簧夹扣

到固定凸耳上。

步骤2: 将另一边的固定夹向下压，扣住支架上的塑胶凸耳。然后固定，使风扇和散热片

扣住支架底座。
