Biostar X370GT7 Версия 5.x [59/83] Bios_sw1 双bios切换开关

第二章: 硬件安装 | 15

X370GT7

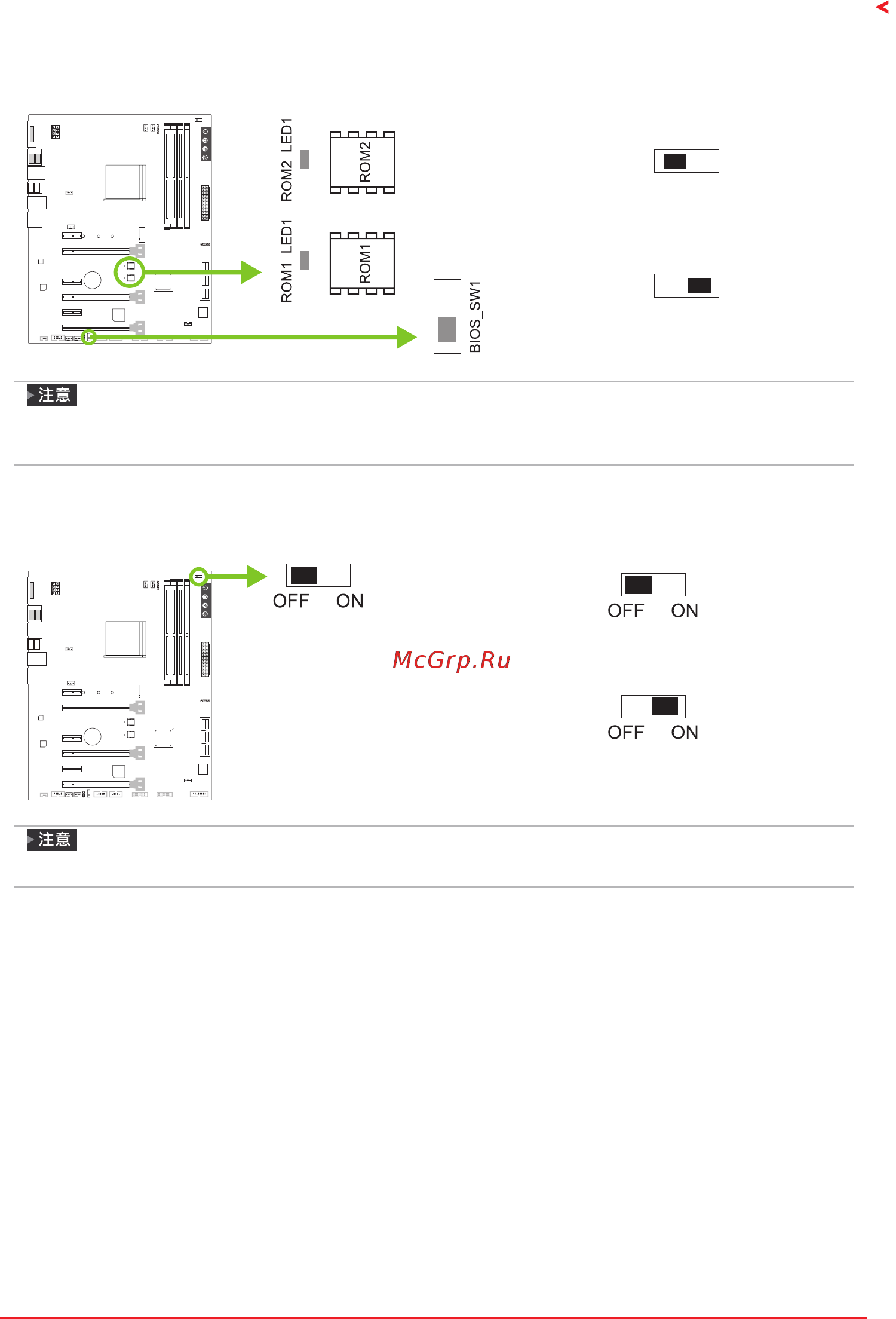

BIOS_SW1: 双BIOS切换开关

此开关让你从双BIOS (ROM1/ROM2) 中选择其一作为开机之用。

主BIOS (ROM1)运作中

LED指示燈（ROM1_LED）將会点亮，

顯示主BIOS正运作中。

备用BIOS (ROM2)运作中

LED指示燈（ROM2_LED）將会点亮，

顯示备用BIOS正运作中。

当你的系统開機時，不要使用此开关。

在刷新BIOS之前，请确保该开关设置为你想要刷新的BIOS ROM。

LN2_SW1: LN2模式跳线

当启用LN2模式时，CPU将在其最低频率运行（例如，800MHz）以避免系统意外的当

机。

关闭OFF(默认)

启用ON

我们不负责超频造成的损失或风险。
