18 | 第二章: 硬件安装

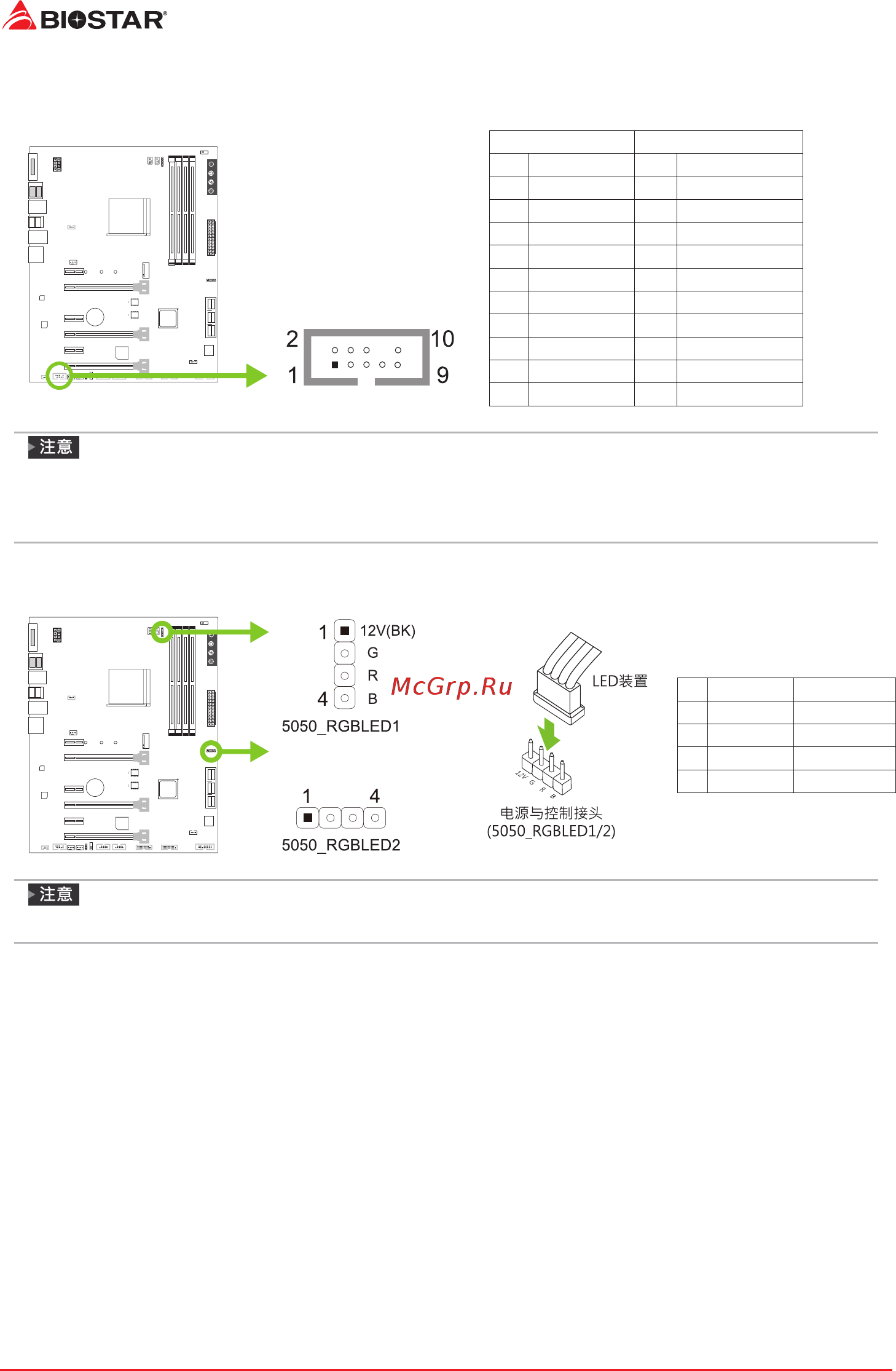

F_AUDIO1: 前置面板音频接头
此接头可连接音频输出数据线，支持HD(高清)音频和AC’97。
HD Audio AC’97
针 定义 针 定义
1 Mic Left in 1 Mic In
2 接地 2 接地
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out
»
建议您连接前置高清音频插孔，享用主板高清音频功能。
»
如果要连接AC’97前置音频输出数据线，请关闭”前置面板插孔检测功能”。此功能在系统音频
工 具 中可 见。
5050_RGBLED1/2: RGB LED装置 (5050 SMD) 接头
此接头提供12V电源与RGB控制讯号，可连接RGB LED装置（5050 SMD）。
针 电缆颜色 定义
1 12V (黑色) VCC12
2 G (绿色) LED_GREEN
3 R (红色) LED_RED
4 B (蓝色) LED_BLUE
»
确保正确將针脚连接到LED装置，错误的连接可能会损坏您的LED装置或主板。
