12 | 第二章: 硬件安装
Ryzen - DDR最高频率支持表
最高频率 DIMMA1 DIMMA2 DIMMB1 DIMMB2
DDR4-2667 --
SR -- --
DDR4-2667 --
DR -- --
DDR4-2667 --
SR -- SR
DDR4-2400 --
DR -- DR
DDR4-2133
SR SR SR SR
DDR4-1866
DR DR DR DR
»
SR - Single-rank DIMM, 1R x4 or 1R x8。
»
DR - Dual-rank DIMMs, 2R x4 or 2R x8。
»
为了更好的DDR4模块兼容性，请按照上述列表安装您的DDR4模块。

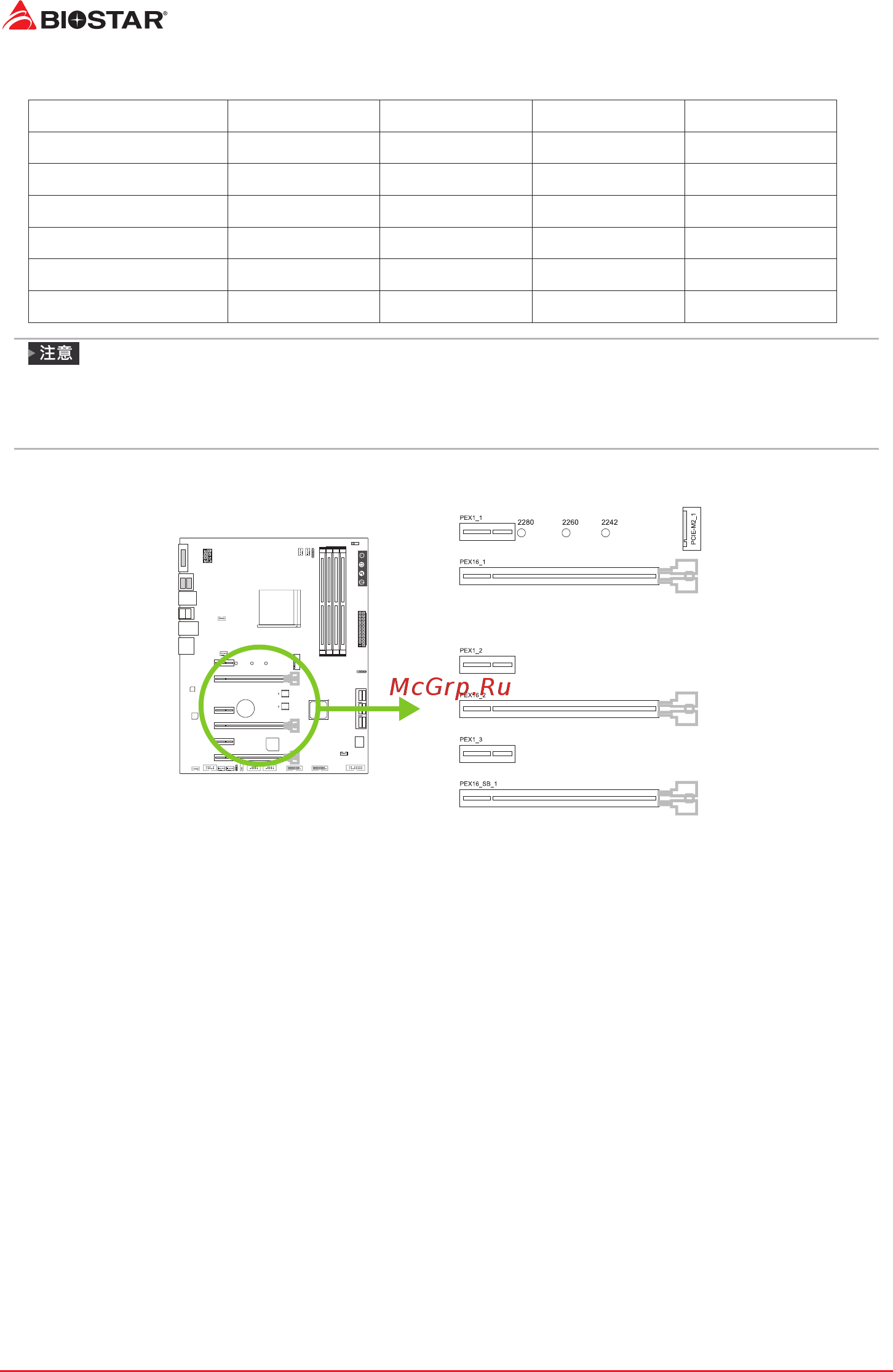

2�5 扩展槽
PEX16_1/PEX16_2: PCI-Express Gen3 x16 插槽
(APU & CPU @x8 + NA 模式 ; Ryzen @x16 + NA or @x8 + @x8 模式)
• 符合PCI-Express 3.0规范。
• 同步单向最大理论带宽为16GB/s，总带宽为32GB/s。
PEX16_SB_1: PCI-Express Gen2 x16 插槽 (x4 模式)
• 符合PCI-Express 2.0规范。
• 同步单向最大理论带宽为2GB/s，总带宽为4GB/s。
PEX1_1/1_2/1_3: PCI-Express Gen2 x1 插槽
• 符合PCI-Express 2.0规范。
• 同步单向最大理论带宽为500MB/s，总带宽为1GB/s。
PCIE-M2_1: M�2 (Key M) 插槽
(M�2 (32Gb/s) : 带宽取决于CPU，Ryzen为32Gb/s ; APU & NPU为16Gb/s)
• M.2插槽支持M.2 Type 2242/2260/2280 SSD模块。安装M.2模块前请将六角柱放
到正确的位置。
• 支持M.2 SATA III (6.0 Gb/s)模块与M.2 PCI Express Gen3 x4模块(32 Gb/s)。
