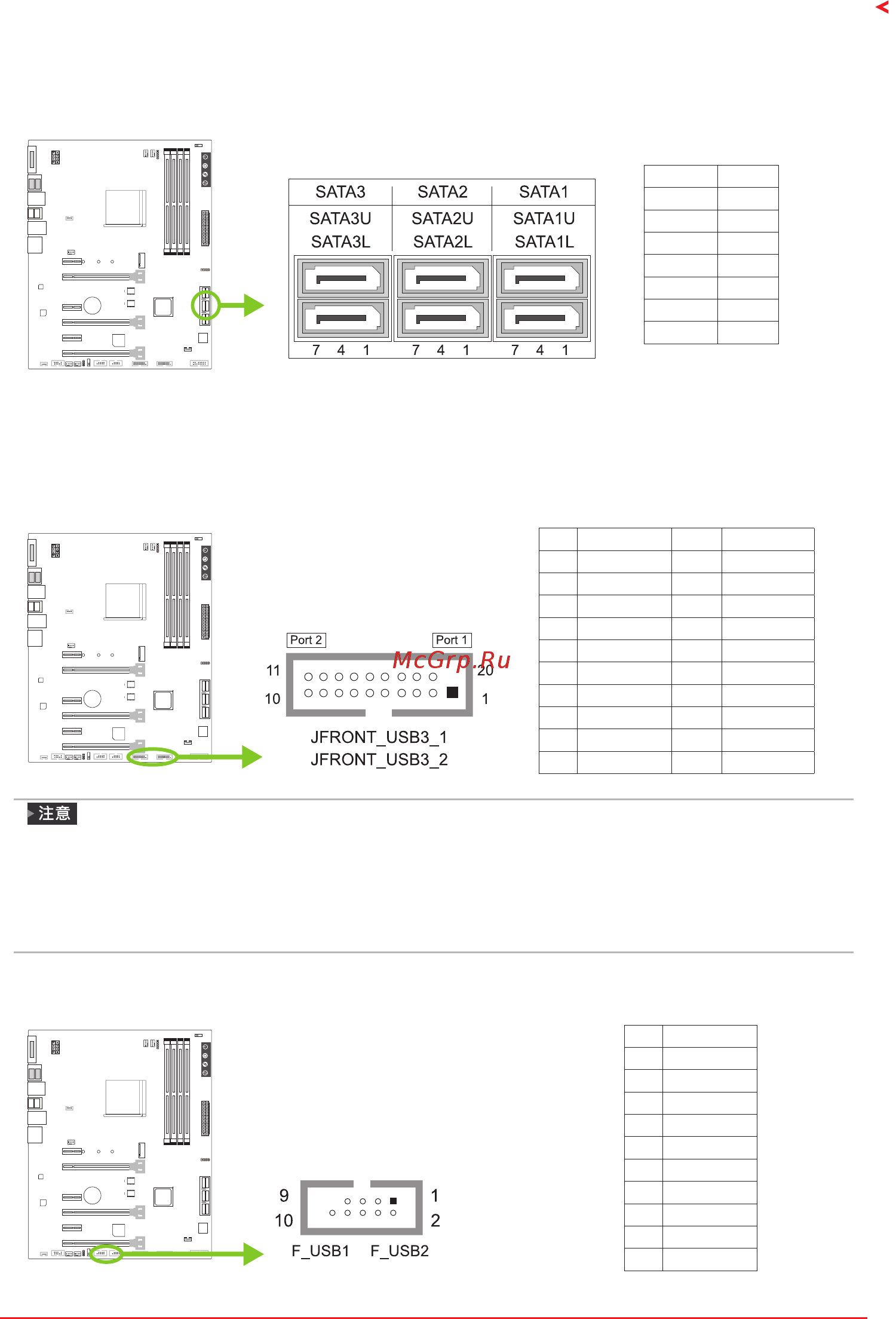

第二章: 硬件安装 | 17
X370GT7
SATA_1/SATA_2/SATA_3: 串行ATA 6�0 Gb/s 接口
此接口通过SATA数据线连接SATA硬盘。
针 定义
1 接地
2 TX+
3 TX-
4 接地
5 RX-
6 RX+
7 接地
JFRONT_USB3_1/2: 前置面板USB 3�1 Gen1 (5Gb/s)接头
PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。
• JFRONT_USB3_2
接头
: 支持闪电充电器，电压 / 电流为12V / 1.5A输出並支持苹果
模式（5V / 2.4A）。
针 定义 针 定义
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 接地
4 接地 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 接地
7 接地 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
»
请注意，充电电压会随着电池电压的变化而跟着改变。
»
请注意，充电电流取决于前置面板USB3.1 Gen1电缆。(传统电缆只有900mA)
»
闪电充电功能仅适用与JFRONT_USB3_2接头连接，并且此JFTONT_USB3_2连接器不支持
ACPI - S3 / S4功能。
»
有关详细信息，请参阅第3.3章照明充电器（Quick Charge 2.0）软件设置。
F_USB1/2: 前置面板USB 2�0接头
PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。
针 定义
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 接地
8 接地
9 Key
10 NC
