第二章: 硬件安装 | 19
X370GT7

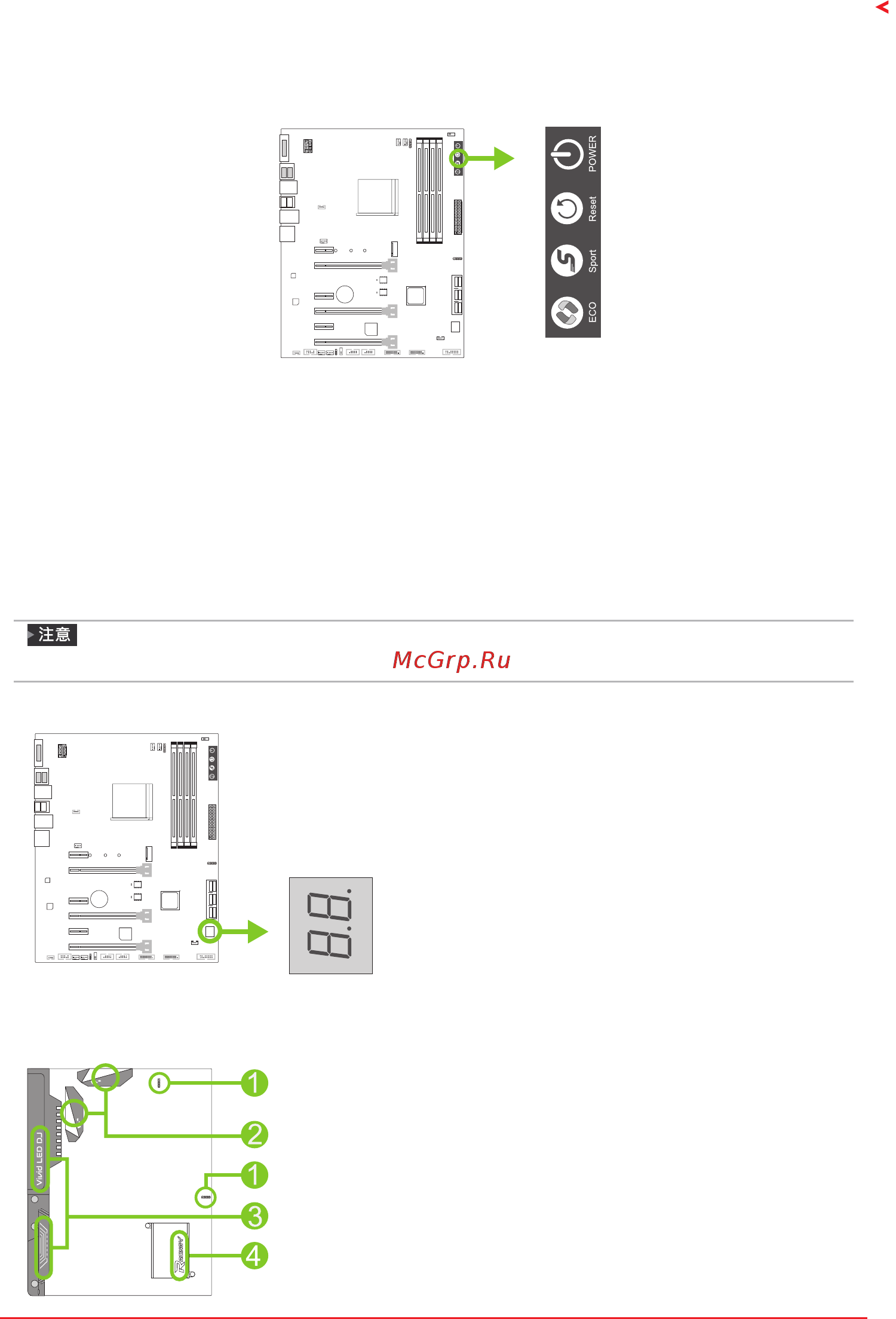

2�8 智能开关/指示器/LED灯
触控按钮
ECO模式：
启动ECO模式，会在可能情况下稍微地降低系统性能，以节省能源。
SPORT模式：
启动SPORT模式，会以最大限度提高系统性能，但可能使用较多的能源。
Reset：
轻触此按钮以重启系统。
Power：
轻触此按钮以开启或关闭系统。
» ECO/SPORT 模式按钮仅限于Windows环境下运行RACING GT软件时才可以使用。
指示器
BIOS开机自检代码指示器：
当系统启动时此指示器会显示开机自检代
码。若要获取更多详情，请参考4.3章节的
BIOS开机自检代码。
LED灯
下面的LED灯由RACING GT软件控制。请参考3.3章节的软件设置。
1. RGB LED 接头
2. MOSFET散热片LED灯
3. VIVID 盔甲LED灯
4. 南侨散热片LED灯
