32 | Chapter 3: UEFI BIOS & Soware

LIGHTNING CHARGER (Quick Charge 2.0)

Quick Charge 2.0 (QC 2.0) soware funcon provides the user with quick charge and le

transfer.

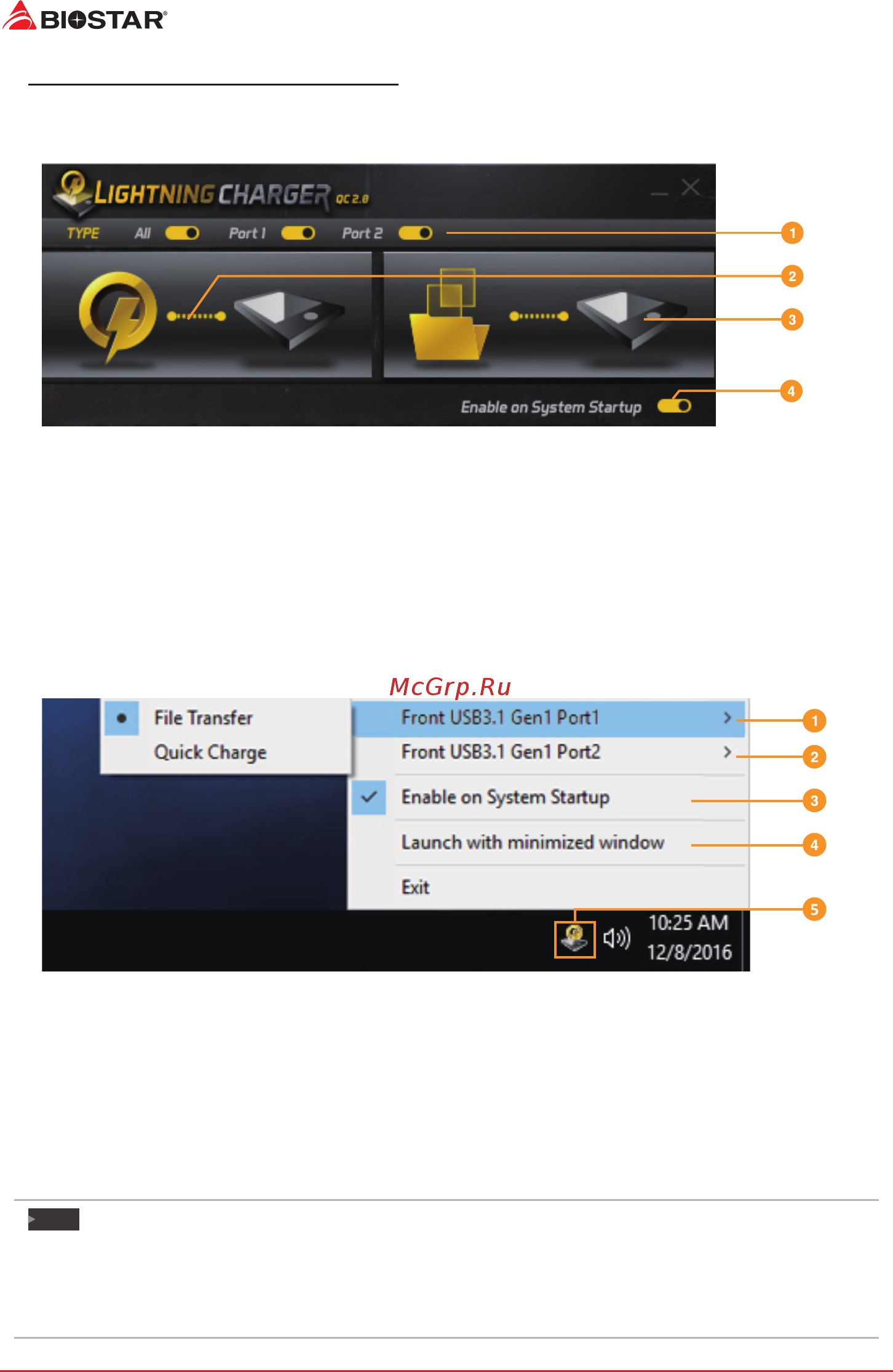

LIGHTNING CHARGER UI:

1. TYPE: Allows users to select a Port.

• All (Default): Enable Front USB3.1 Gen1 Port1 & Front USB3.1 Gen1 Port2 to transfer

les or quick charge.

• Port1 / 2: Enable Front USB3.1 Gen1 Port1 / 2 to transfer les or quick charge.



Youmayonlyacvateonefunconatagivenme.



Uponportre-selecon,itwillsllretaintheprevioussengs.

2. QUICK CHARGE: Fast Charging mode.

3. FILE TRANSFER: File Transfer mode. (Charge Current: 0.5A)

4. Enable on System Startup: Automacally starts the LIGHTNING CHARGER program upon

system startup.

LIGHTNING CHARGER ICON:

1. Front USB3.1 Gen1 Port1: Allows you to set to File Transfer or Quick Charge funcon for

the Front USB3.0 Port1.

2. Front USB3.1 Gen1 Port2: Allows you to set to File Transfer or Quick Charge funcon for

the Front USB3.0 Port2.

3. Enable on System Startup: Automacally starts the LIGHTNING CHARGER program upon

system startup.

4. Launch with minimized window: Minimize the applicaons to system tray.

5. Charger Boost System Tray Icon: Brings up the LIGHTNING CHARGER program giving you

the opon to choose File Transfer or Quick Charge funcon.

Note



SupportLightningChargerupto12V/1.5AoutputandAPPLEmode(5V/2.4A).



Pleasenotethatthechargingvoltagewillbechangingwiththebaerycondion.



PleasenotethatthechargingampereisdependedontheFrontPanelUSB3.1Gen1cable.

(Tradionalcableisonly900mA)



LightningChargerfuncononlyforJFRONT_USB3_2connector.
