第四章:帮助信息 | 37

X370GT7

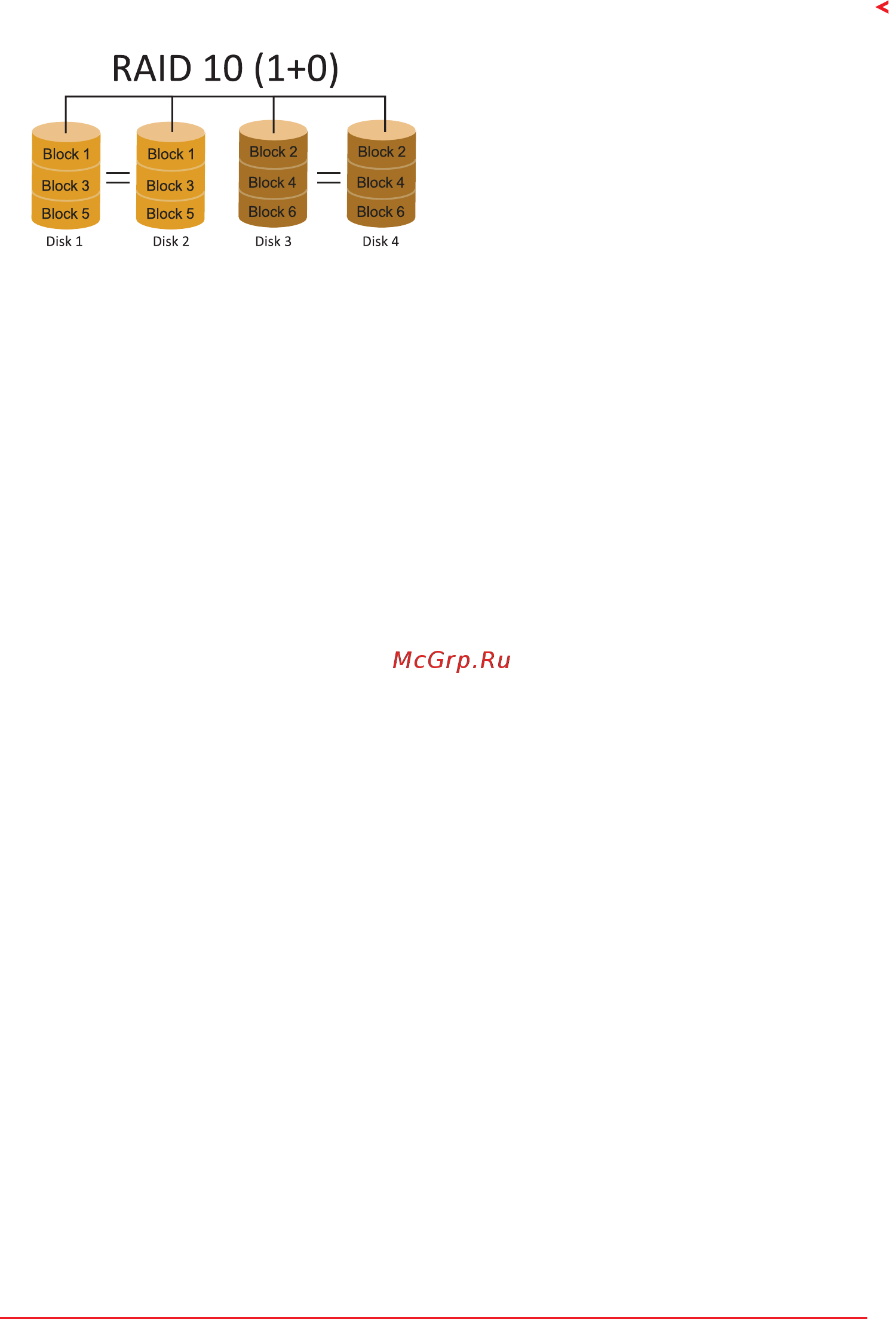

RAID 10模式是对RAID 0/ RAID 1两种不同

模式的结合，可以同时支持带区集和镜像，

这样既可以提升速度又可以加强数据的安全

性。

性能及优点

• 驱动器: 最少4块硬盘，最多6或8块。

• 优点: 容量和性能的优化允许冗余的自动化。在一个阵列，可以同时使用其它的RAID，

并允许剩余的磁盘。

• 缺点: 数据冗余需要两倍可用磁盘空间，与RAID1相同。

• 容错: 是。
