SiE30-408 Adaptors for Connection of Air Conditioners
Appendix 201
5. Adaptors for Connection of Air Conditioners
5.1 Wiring Adaptor for Electrical Appendices (2)
<KRP4A51, 52, 53, 54>
<Application / Intended use>
This adapter enables remote operation control, remote temperature setting, operation display,
fetch of malfunction display, and others, but cannot be used in combination with other
centralized controllers. A single unit of this adapter performs a batch control of a group
connected through the remote controller transmission line (P1 / P2).
Note: No systems without remote controller are available. A single unit of remote controller is
absolutely needed.
Furthermore, for two-remote-controller system, this adapter is not usable.

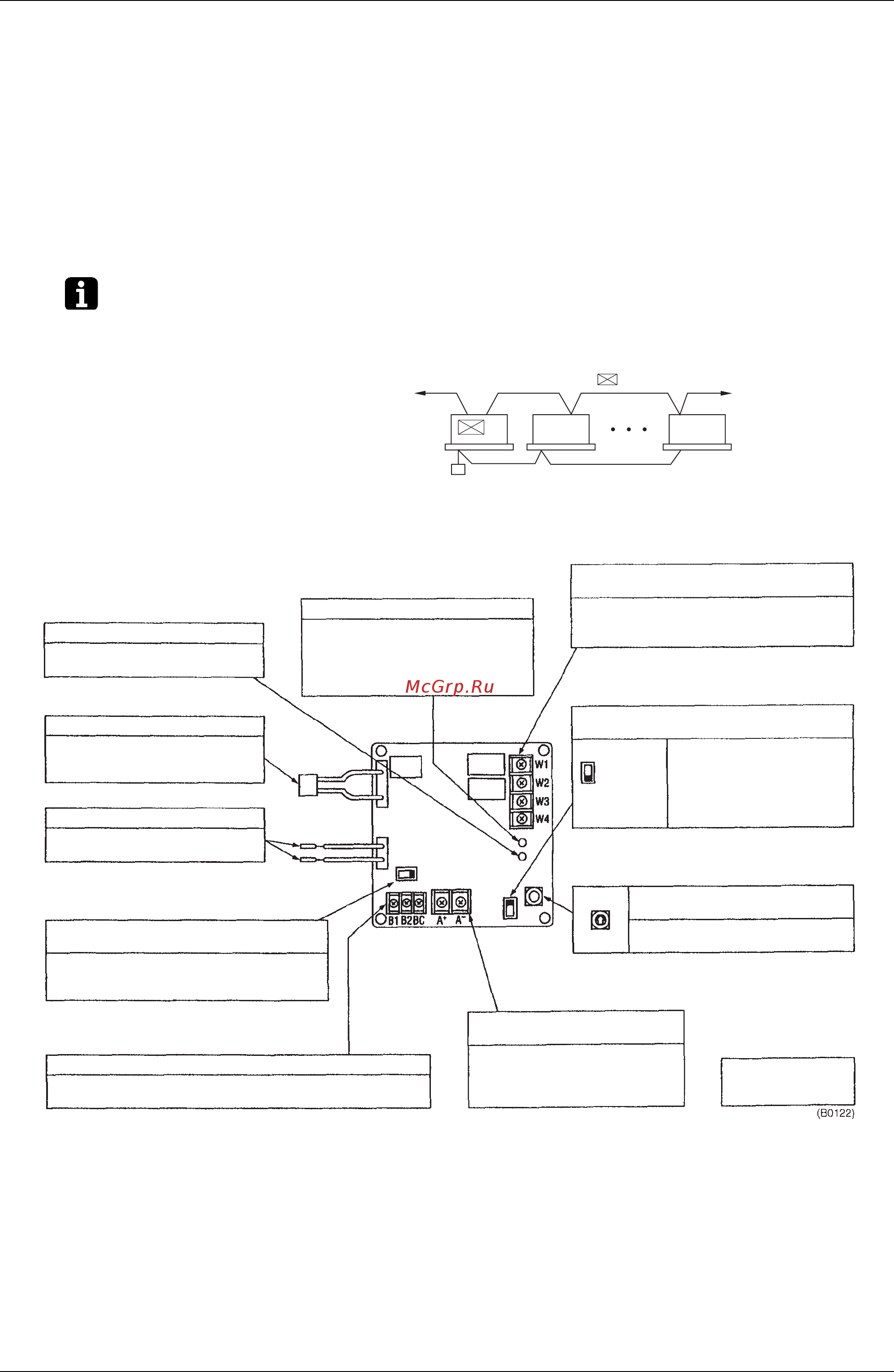

5.1.1 Part Names and Functions
5.1.2 Wiring
1. For a start, make wire connections between the indoor and outdoor units, between
respective power supplied, and between the indoor unit and remote controller, and then check
whether or not the units normally operate. (Particularly, in order to use the adapter in
combination with the group control of the remote controller, check to be sure the jumper wiring.)
For details, refer to information in the Installation Manual of indoor unit and outdoor unit.
2. Lastly, make wire connections to external equipment such as the centralized control monitor
and other settings.
For details, refer to information in “Wiring to external controller (e.g. centralized control
monitor)”.
(Up to 16 unitsat maximum)
Adapter for group remote control
To outdoor unitTo centralized monitor panel
SERVICE MONITOR (H1P: Green)
This lamp flashes while the CPU is
operating normaly.
TRANSMISSION WIRING (P1, P2)
To P1 and P2 on indoor unit
terminal board
REMOTE CONTROL INPUT TERMINAL BOARD (X1M)
Connects control input from the remote control (central control
monitor, timer, etc.).
POWER SUPPLY CONNECTOR
To connector on indoor unit PC
board
(SKY AIR···X23A, VRV···X18A)
CHANGEOVER SWITCH (SS1) (Factory set:
VOLT.)
Set to “NON VOLT” to input a no-voltage
normally open contactor on the remote control
input terminal board (TeS1).
TEMPERATURE S
ETTING INPUT
TERMINAL (X2M)
Temperature setting is determined
by a resistance value between 0
and 135. Never apply voltage to
this or any reason whatsoever.
For details, see back
page of the
ELECTRIC WIRING.
IMPOSSIBLE
POSSIBLE
SS2
TEMPERATURE SETTING ON/OFF SWITCH
(SS2) (Factory set: POSSIBLE)
To enable temperature setting
with the remote controller, set
to “POSSIBLE”.
To isolate temperature setting
at the remote control point,
set to “IMPOSSIBLE”.
CONTROL MODE SELECTOR
SWITCH (RS1) (Factory set: 0)
For selecting the type of system
operation permitted via remote.
TERMINAL BOARD FOR DISPLAY SIGNAL
(X3M)
Connects operation and error output to a
remote point (central control monitor, etc.)
(Norm
al operation: W1, W2; Error: W3, W4)
SERVICE MONITOR (H10P: Red)
This lamp lightsup when trouble
occurs in electrical wiring or setting
switches. Remote control is disabled.
(This LED is out in constant
operation.)
