HRV-Related SiE30-408
242 Appendix
7.5 Central Control System (DCS302B61)
7.5.1 Collective / Individual Operation (Central Remote Controller)
Purposes and
Functions
It is possible to have collective On / Off or individual On / Off without zone control (while setting
the 64 zones).
It is also possible to connect the unified On / Off controller and etc.
Cautions: 1. It is required the local setting of the group number for central control.
2. The HRV unit judges the ventilation mode individually.

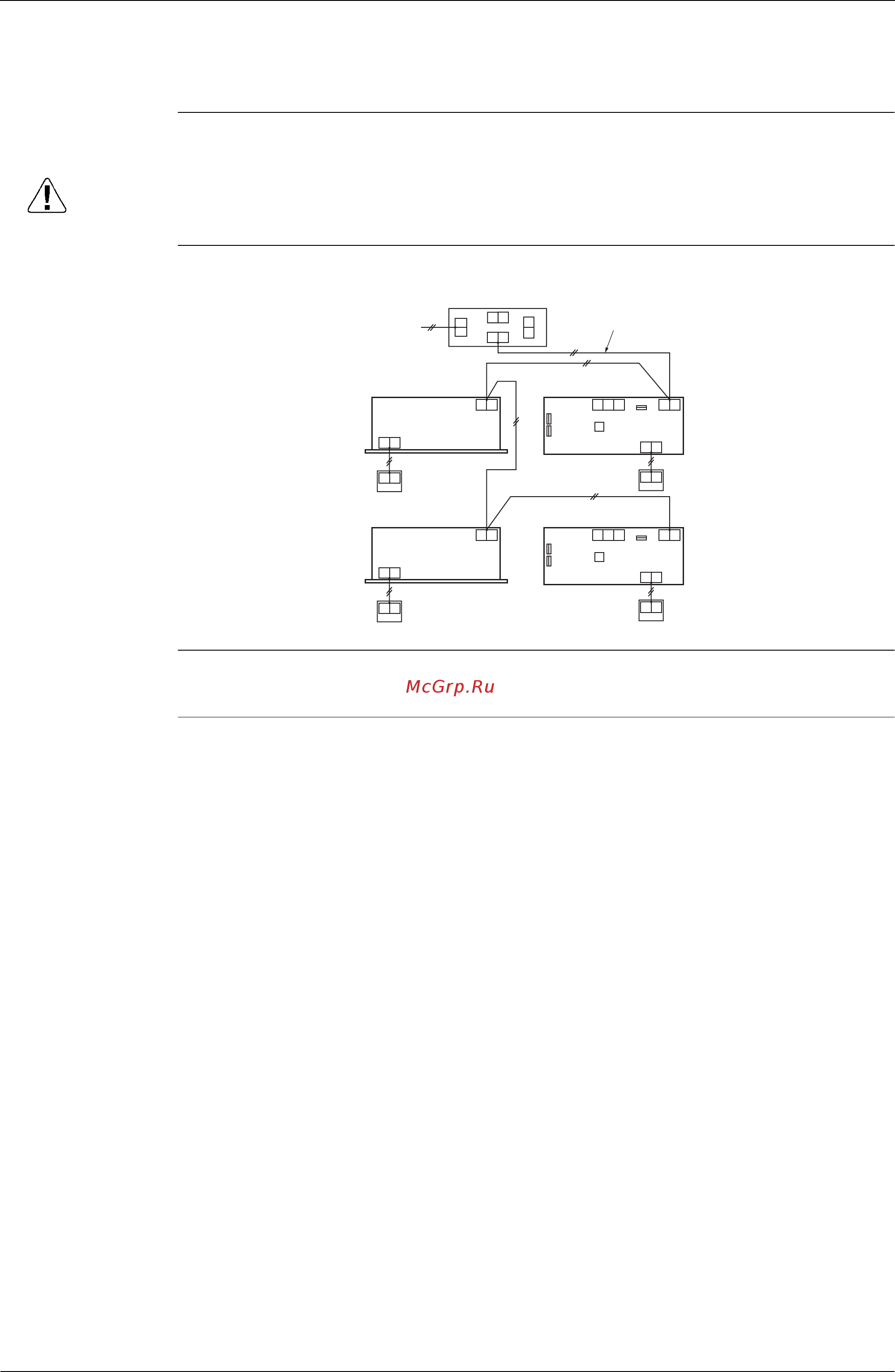

Example of
Control Wiring
Switch Setting of
the HRV Unit
The initial setting is required by the remote controller for indoor unit.
Collective zone interlock setting. . . . . . . . . . . . . . . . . . . . "OFF" (as per factory set)
Optional
Accessories
Required
Central remote controller DCS302B61
X9A
X10A
X11A
J1 J2 F1 F2
P1P2
P1P2
JC
SS1
F1 F2
P1P2
P1P2
X9A
X10A
X11A
J1 J2 F1 F2
P1P2
P1P2
JC
SS1
F1 F2
P1P2
P1P2
T1 T2
D1
D2
F1 F2
Te S1
Central remote controller
Power supply
Indoor unit
HRV unit
Indoor unit
HRV unit
(HC0036)
Connecting line can be extended
up to 1000 m maximum.
