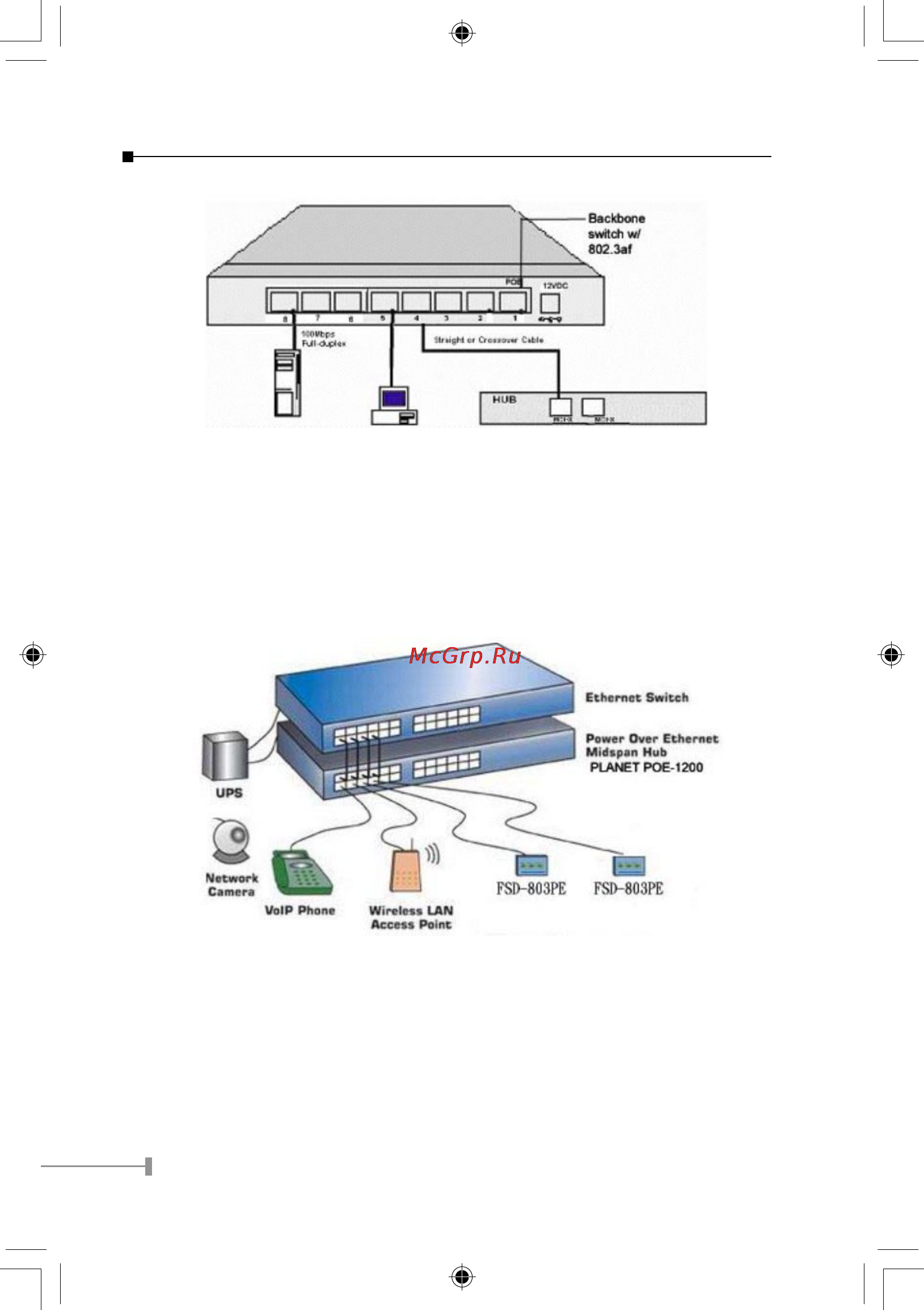

Powered from POE hub / switch

Port#1 of the Switch support IEEE802.3af power over Ethernet, you can direct connect

the Switch to the 802.3af in-line power devices like 802.3af POE hub, Ethernet Switches

that with 802.3af POE Ethernet port.

A Category 5 UTP cable with 4-pair wire is required from POE hub to your FSD-803PE.

Once the Switch connect with POE device like PLANET POE-150, 1-port 802.3af injector or

POE hub, the POE indicator of the Switch will turns on to indicate it get the power from

the remote POE injector. And the Switch will start its POST (Power on self test) process

and start to work.

Getting the power from central POE injector, the FSD-803PE shall works without fear

of remote power breakdown. As soon as the local PCs also installed with UPS, it shall

guarantee the true un-interrupted network accessing.

Switch to Switches (other devices)

The Switch can be connected to another switch or other devices (routers, bridges,

etc.) via a two-pair Category 3, 4, 5 UTP/STP straight or crossover cable. However,
