APPENDIX A

RJ-45 PIN SPECIFICATION

When connecting your FSD-series 10/100Mbps Ethernet Switch to another switch, a

bridge or a hub, a straight or crossover cable is necessary. Each port of the Switch

supports auto-MDI/MDI-X detection. That means you can directly connect the Switch to

any Ethernet devices without making a crossover cable.

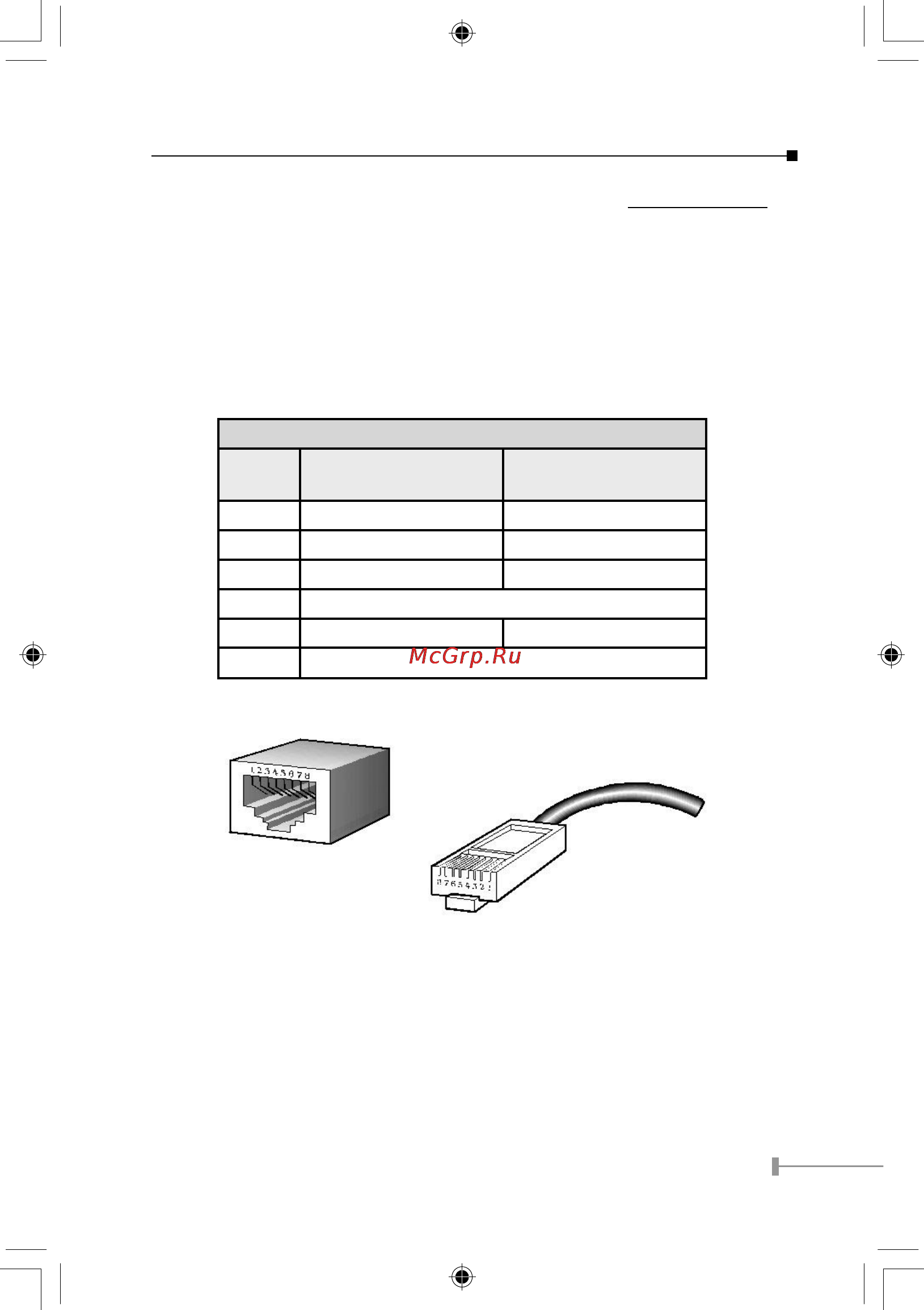

The following table and diagram show the standard RJ-45 receptacle/ connector and their

pin assignments:

RJ-45 Connector pin assignment

Contact MDI Media Dependant

Interface

MDI-X Media Dependant

Interface -Cross

1 TX + (transmit) Rx + (receive)

2 TX - (transmit) Rx - (receive)

3 Rx + (receive) TX + (transmit)

4, 5 Not used

6 Rx - (receive) TX - (transmit)

7, 8 Not used

The standard cable, RJ-45 pin assignment

The standard RJ-45 receptacle/connector
