Biostar TPower X58 Версия 5.x [17/69] Jatxpwr3 auxiliary power for graphics

TPower X58/TPower X58A

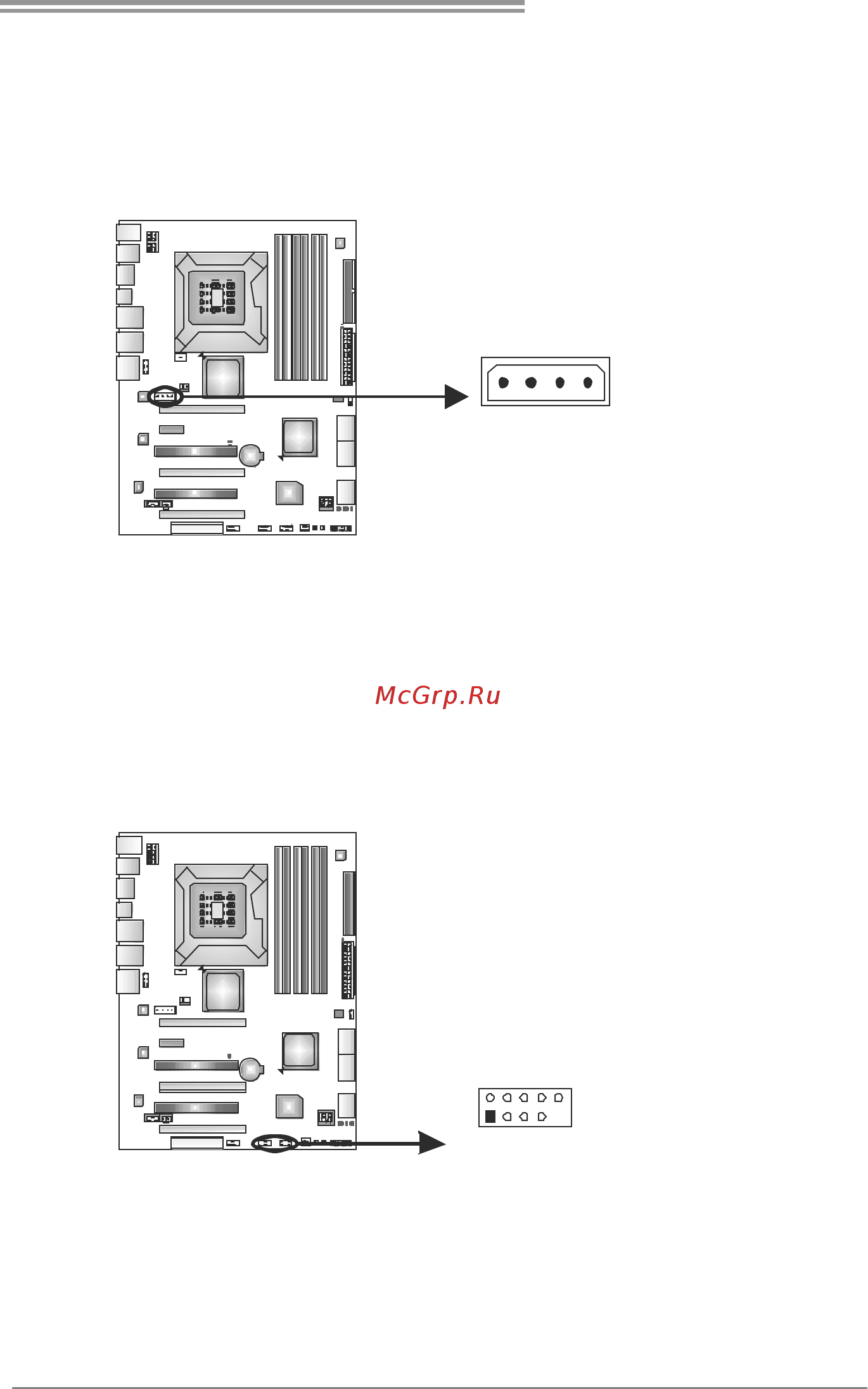

JATXPWR3: Auxiliary Power for Graphics

This connector is an auxiliary power connection for graphics cards. Exclusive

power for the graphics card provides better graphics performance.

Assignment

1 +12V

2 Ground

3 Ground

4 VCC

JUSB1/JUSB2: Headers for USB 2.0 Ports at Front Panel

Theses headers allow user to connect additional USB cable on the PC front

panel. They also can be connected with internal USB devices, like USB card

reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

JUSB2JUSB1

10 NC
