TPower X58/TPower X58A
7

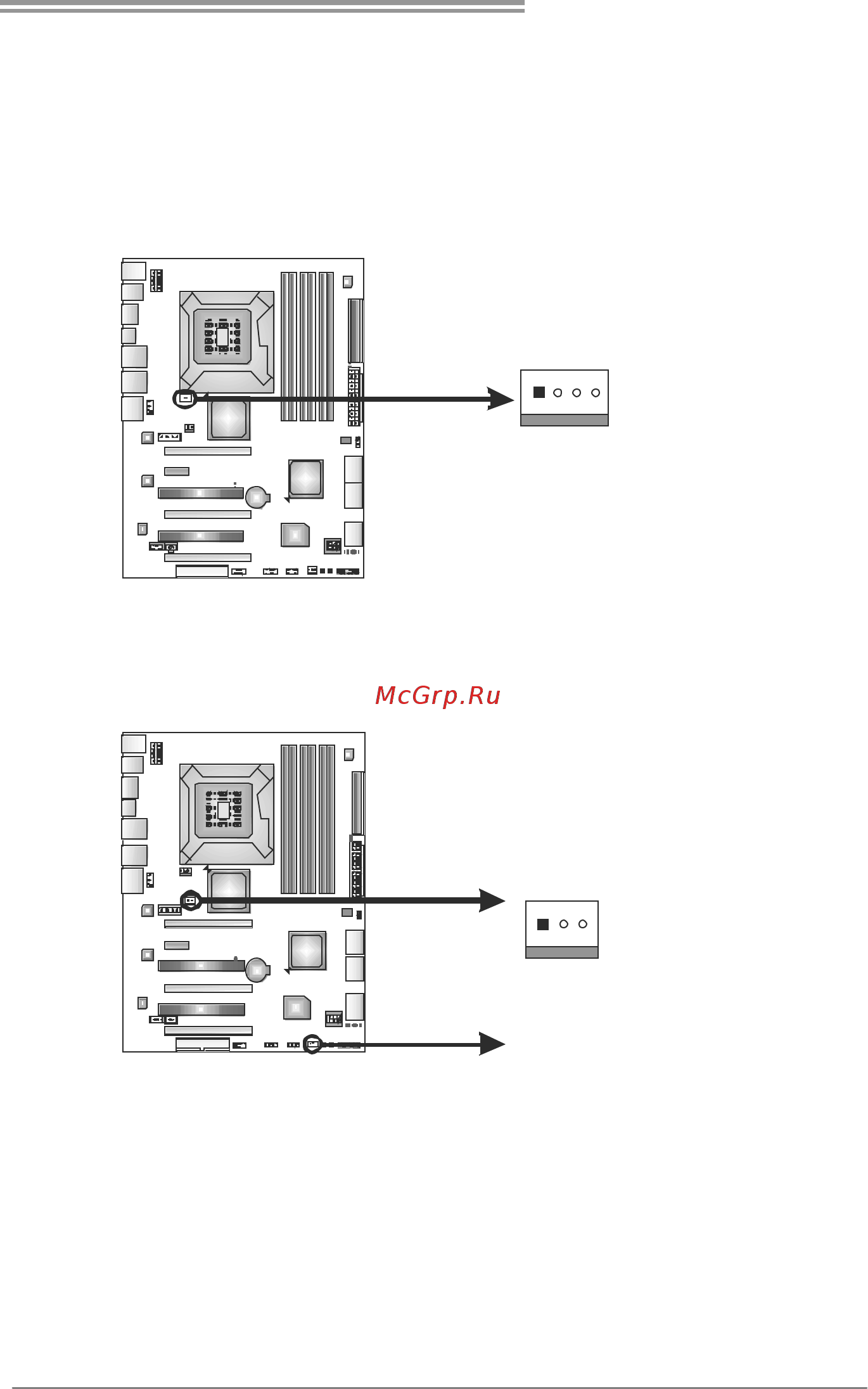

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3
FAN RPM rate
sense
14
4 Smart Fan
Control
JSFAN1: NorthBridge Fan Header
JSFAN2: System Fan Header
Pin
Assignment
1 Ground
2 +12V
1
3
JSFAN2
JSFAN1
3 FAN RPM rate
sense
Note:
The JSFAN1/JSFAN2 support 3-pin head connectors, and the JCFAN1, 4-pin head
connector. When connecting with wires onto connectors, please note that the red wire is
the positive and should be connected to pin#2, and the black wire is Ground and should
be connected to GND.
