Biostar TPower X58 Версия 5.x [18/69] Jaudiof1 front panel audio header

Motherboard Manual

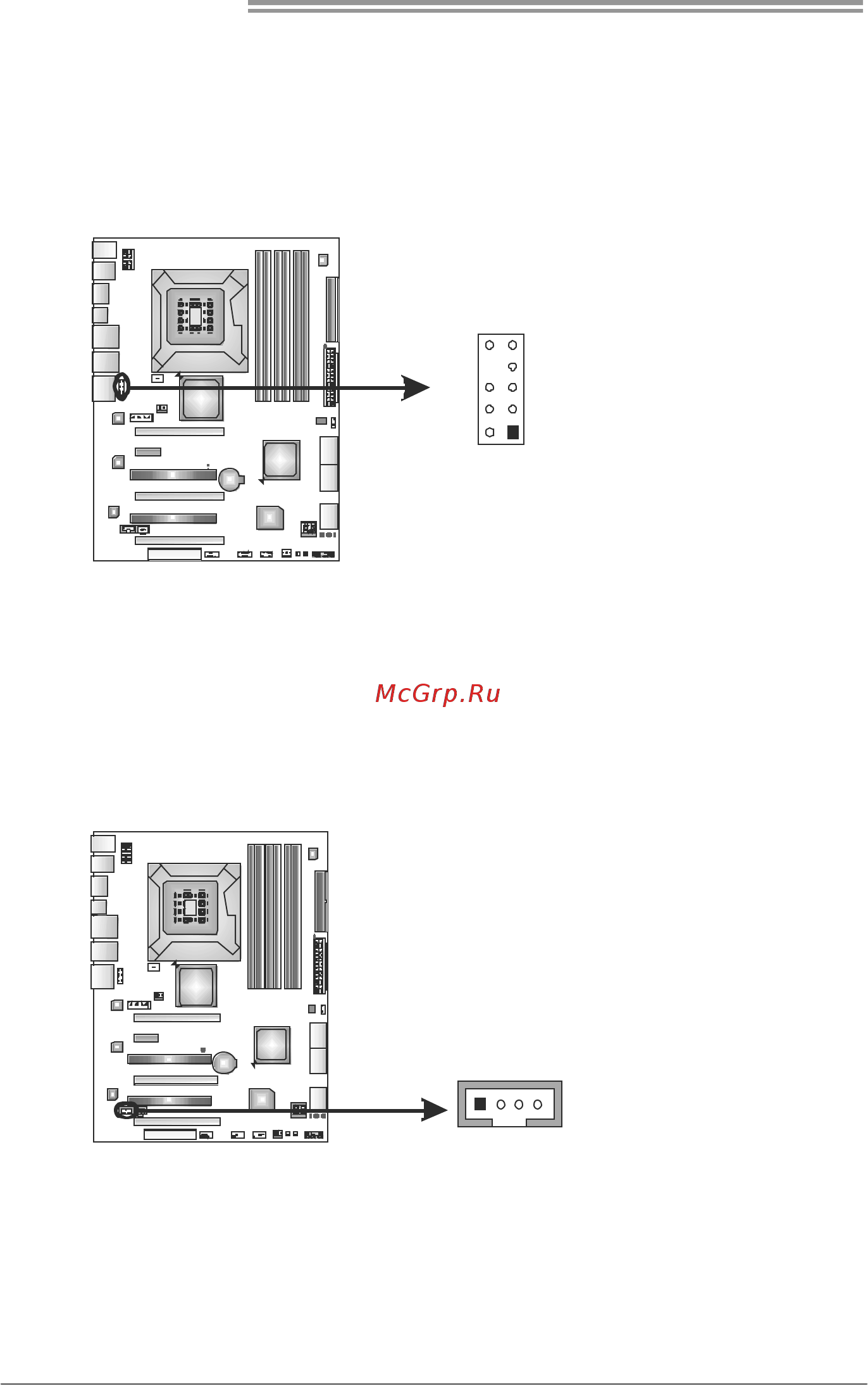

JAUDIOF1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front

panel. This header allows only HD audio front panel connector; AC’97 connector

is not acceptable.

Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

910

10 Jack Sense

JCDIN1: CD-ROM Audio-in Connector

This connector allows user to connect the audio source from the different

devices, like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..

Assignment

1 Left Channel Input

2 Ground

3 Ground

4 Right Channel Input
