TPower X58/TPower X58A
19

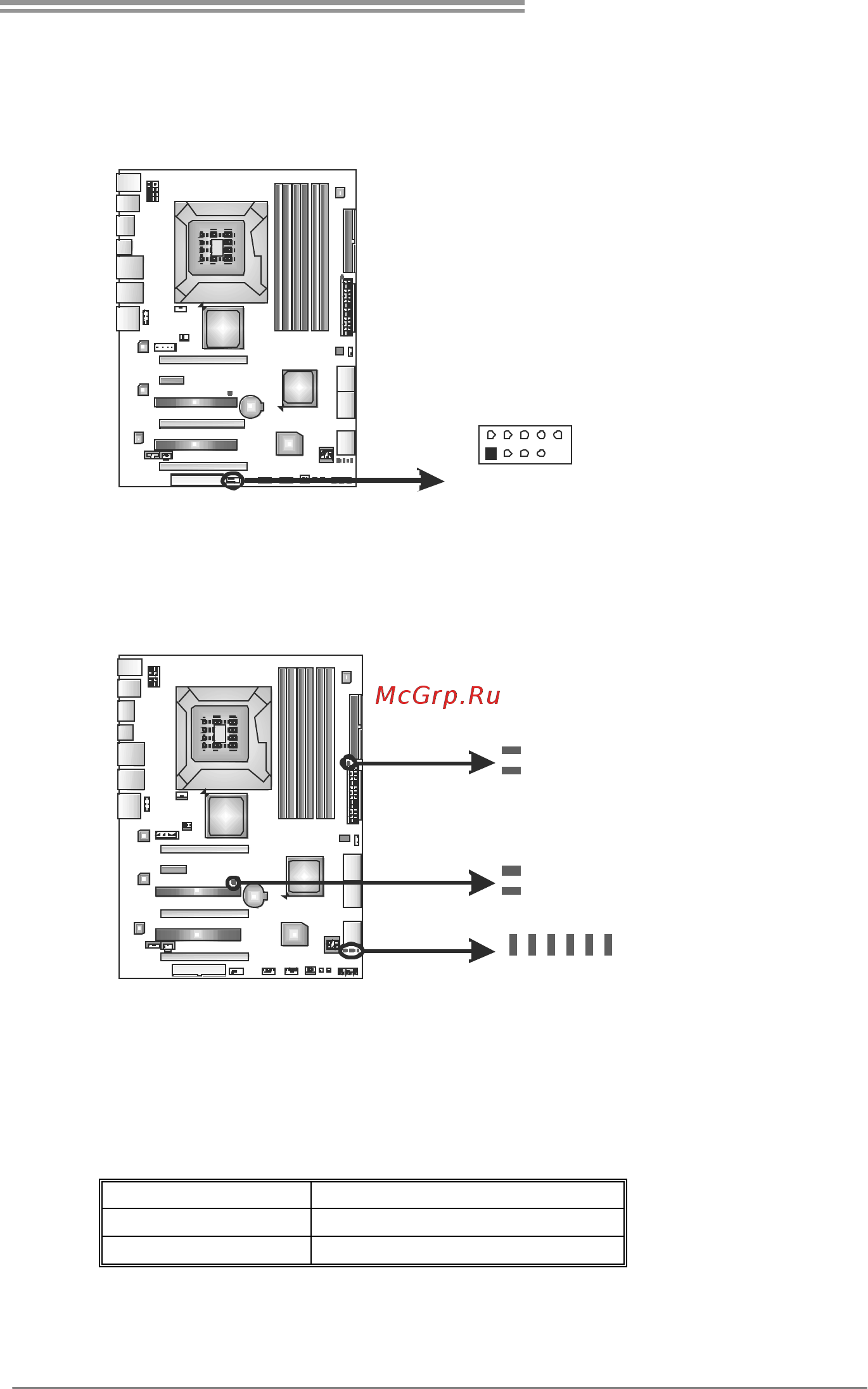

J1394_1: IEEE 1394 Header (TPower X58)
This header allows user to connect IEEE 1394 device.
Pin
Assignment
1 TPA1+
2 TPA1-
3 GND
4 GND
5 TPB1+
6 TPB1-
7 VCC
8 VCC
9 N/A
1
2
9
10
10 KEY
On-Board LED Indicators
There are 10 LED indicators on the motherboard showing system status.
PH_LED1
DDR_V_D1
DDR_V_D2
PH_LED2
PH_LED3
PH_LED5
PH_LED4
PH_LED6
NB_V_D2
NB_V_D1
DDR_V_D1 & DDR_V_D2: DDR Power Status Indicators
NB_V_D1 & NB_V_D2: NorthBridge Power Status Indicators
PH_LED1 ~ PH_LED6: CPU Power Status Indicators
Please refer to the tables below for different messages:
LED Phase Indicator
ON Phase Active
OFF Phase Disable
Note:
When power saving mode is activated, only one of DDR, of NB, and of CPU
LEDs will light.
