TPower X58/TPower X58A
3
SPEC
Front Audio Connector x1 Supports front panel audio function
CD-in Connector x1 Supports CD audio-in function
S/PDIF out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x2 System Fan Power supply
Clear CMOS Header x1 Restore CMOS dat a to factory default
USB Connector x2 Each connector supports 2 front panel USB ports
IEEE 1394 Connector (TPower X58) x1 Connects to IEEE 1394 device
Power Connector (24pin) x1 Connects to Power supply
Power Connector (8pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
LAN Port x2
USB Port x8
Audio Jack x6
eSATA Port x2
1394 Port (TPower X58) x1
Optical +coaxial S/PDIF Out x1
Connects to PS/2 Keyboard
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Connect to SATA devices
Connects to IEEE 1394 device
Provides digital audio out function
Board Size 244 (W) x 305 (L) mm ATX
OS Support
Windows XP / Vista 32 / Vista 64
Biostar reserves the right to add or remove support for
any OS with or without notice

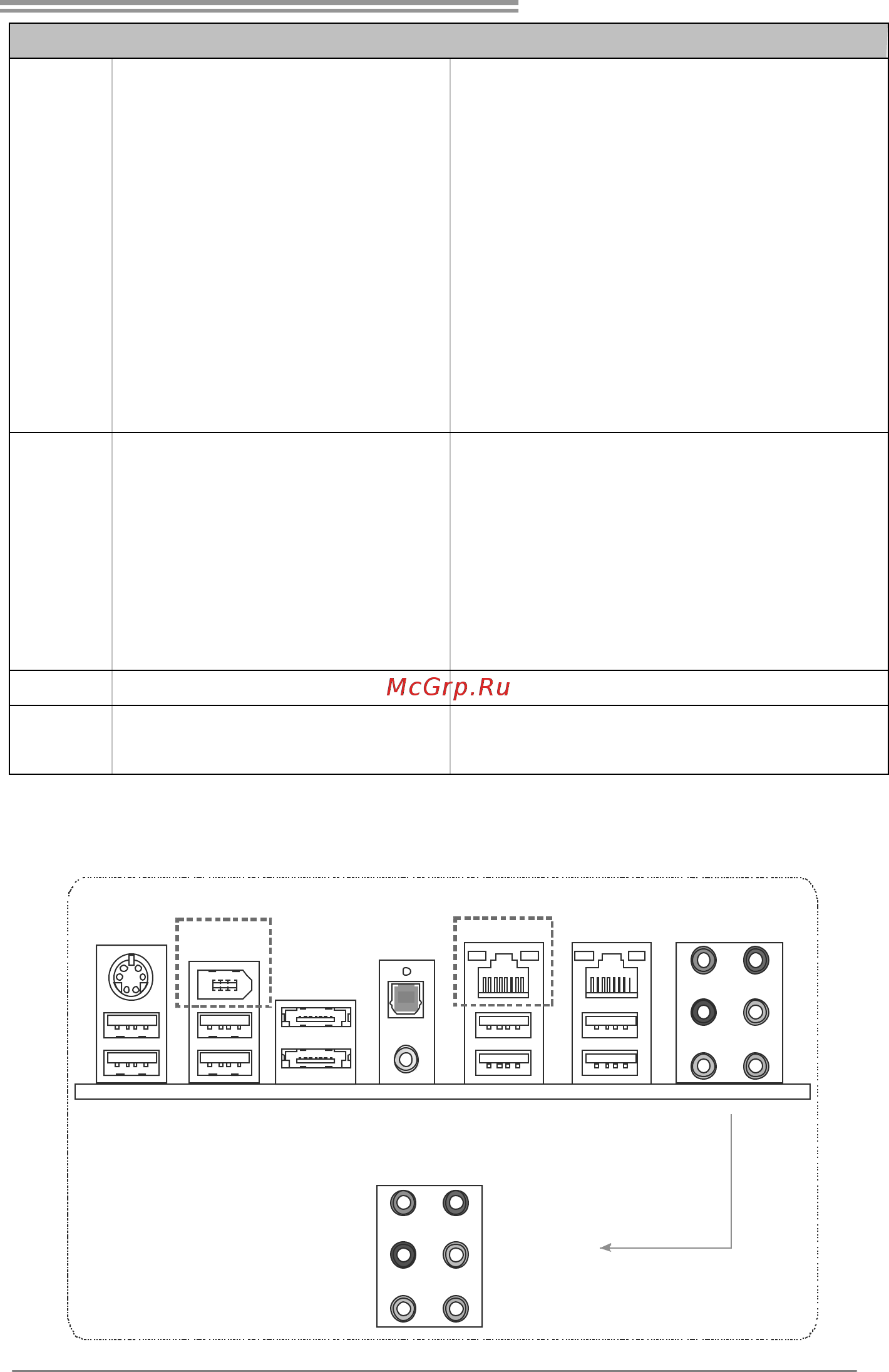

1.4 REAR PANEL CONNECTORS
Line In
Line Out
Mic In
Center
Rear
Side
PS/2
Keyboard
ESATAX2USBX2
USBX2
LAN
USBX2
IEEE 1394
USBX2
LAN
Optical
+coaxial
S/PDIF Out
(TPower X58)
(TPower X58)
