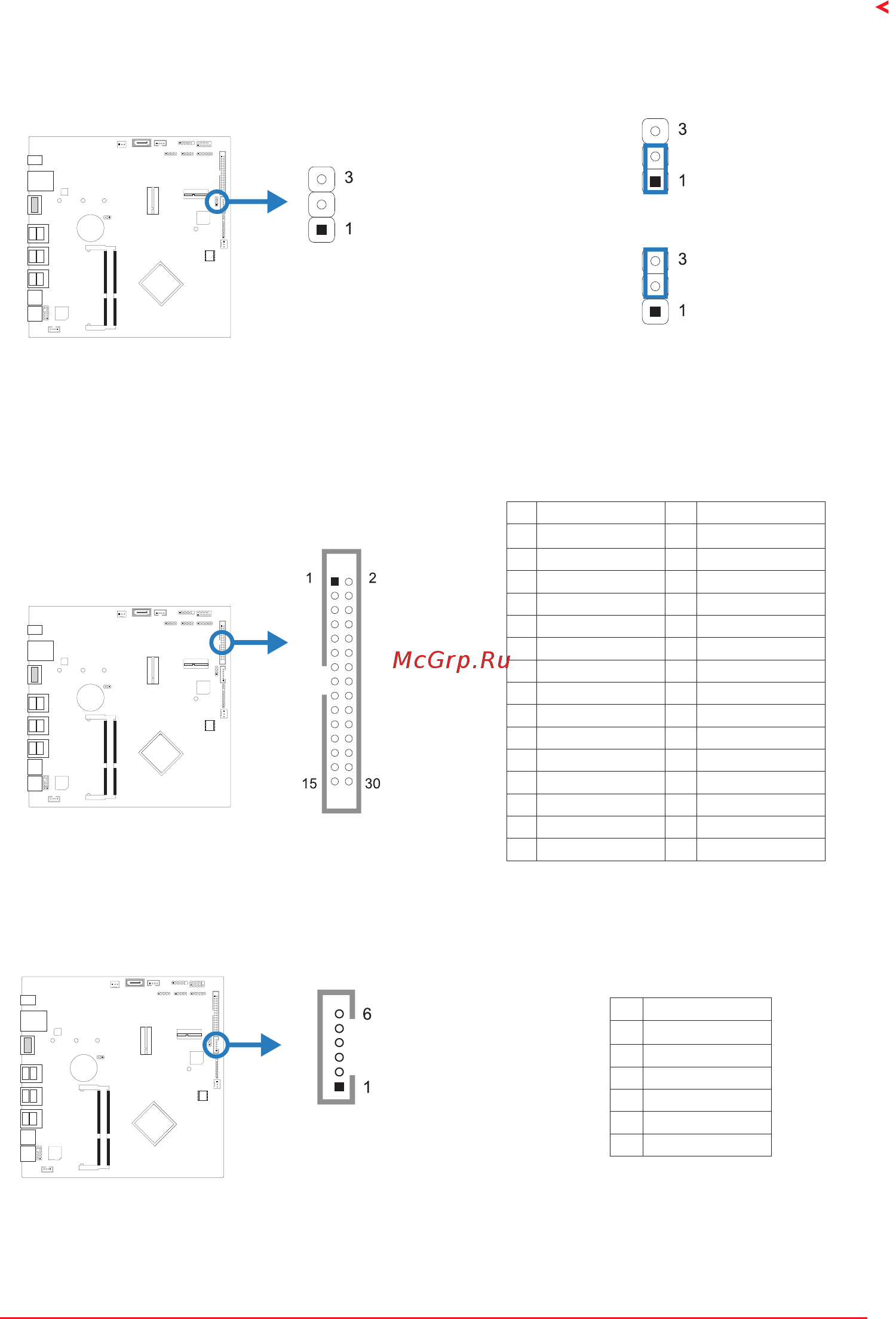

Chapter 2: Hardware installaon | 11
J4105TH
BL_VOL_SEL: LCD Backlight Inverter Power Select Jumper Header
This jumper is for selecng LCD Backlight Inverter Power.
Pin 1-2 Open: Inverter Power=5V (Default)
Pin 2-3 Close: Inverter Power=12V
2.5 Headers & Connectors
LVDS_CON1: LVDS Header
This connector supports dual channel 18/24-Bits LCD panel.
Pin Assignment Pin Assignment
1 LCDVDD 2 LCDVDD
3 LCDVDD 4 Ground
5 Ground 6 Ground
7 LVDSA_Data0N 8 LVDSA_Data0P
9 LVDSA_Data1N 10 LVDSA_Data1P
11 LVDSA_Data2N 12 LVDSA_Data2P
13 Ground 14 Ground
15 LVDSA_CLKN 16 LVDSA_CLKP
17 LVDSA_Data3N 18 LVDSA_Data3P
19 LVDSB_TX0N 20 LVDSB_TX0P
21 LVDSB_TX1N 22 LVDSB_TX1P
23 LVDSB_TX2N 24 LVDSB_TX2P
25 Ground 26 Ground
27 LVDSB_CLKN 28 LVDSB_CLKP
29 LVDSB_TX3N 30 LVDSB_TX3P
CN1: Inverter Header
This connector is for connecng to LCD for providing backlight control funcon.
Pin Assignment
1 Power
2 Power
3 LBKLT_En
4 BKLT_Ctrl
5 Ground
6 Ground
