Biostar J4105TH Версия 6.x [7/55] Chapter 2 hardware installation

Chapter 2: Hardware installaon | 7

J4105TH

Chapter 2: Hardware installaon

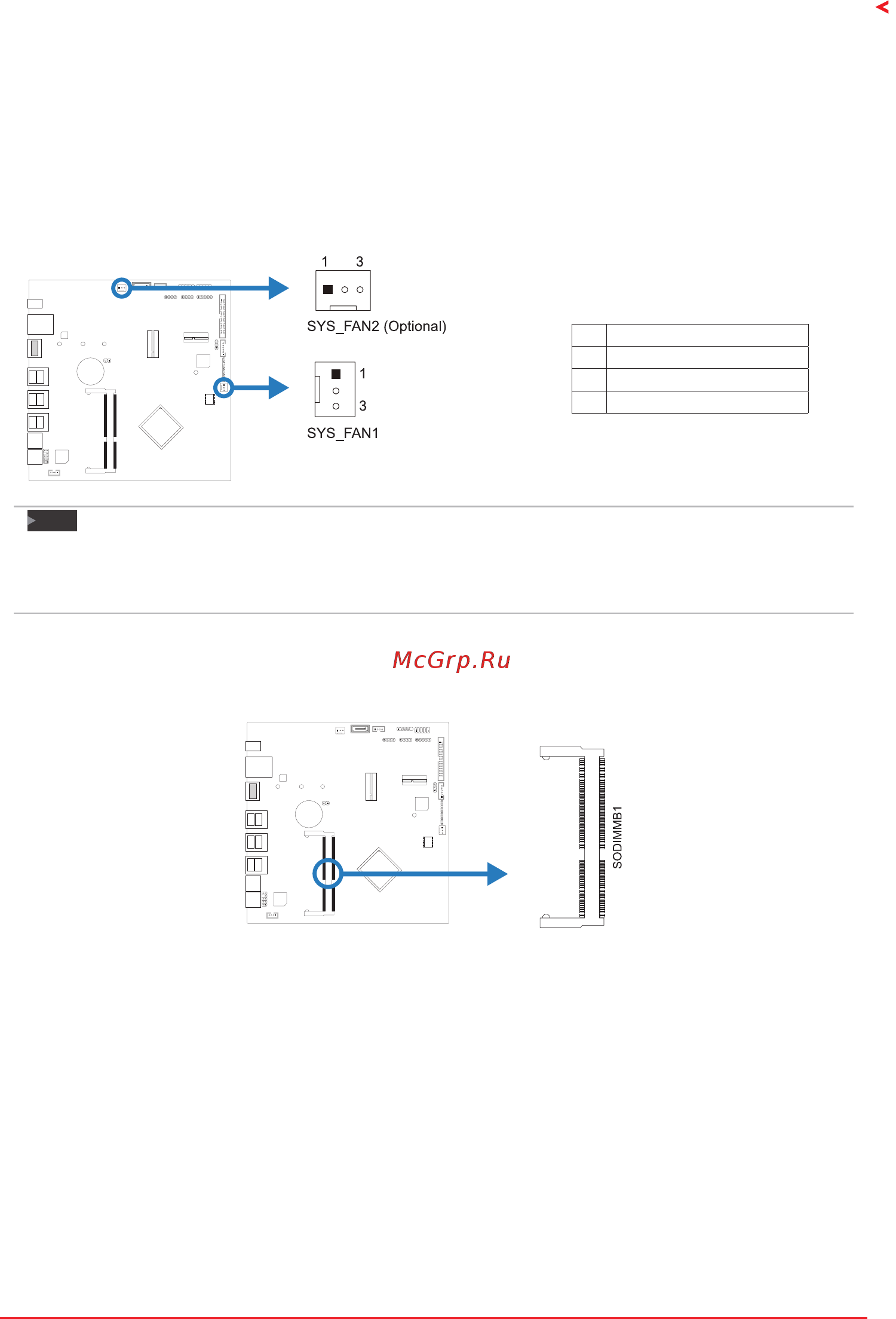

2.1 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector

may be dierent according to the fan manufacturer.

SYS_FAN1/2: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note

 SYS_FAN1/2support3-pinheadconnectors.Whenconnecngwithwiresontoconnectors,please

notethattheredwireistheposiveandshouldbeconnectedtopin#2,andtheblackwireisGround

andshouldbeconnectedtopin#1(GND).

2.2 Install System Memory

DDR4 SO-DIMM Modules
