12 | Chapter 2: Hardware installaon

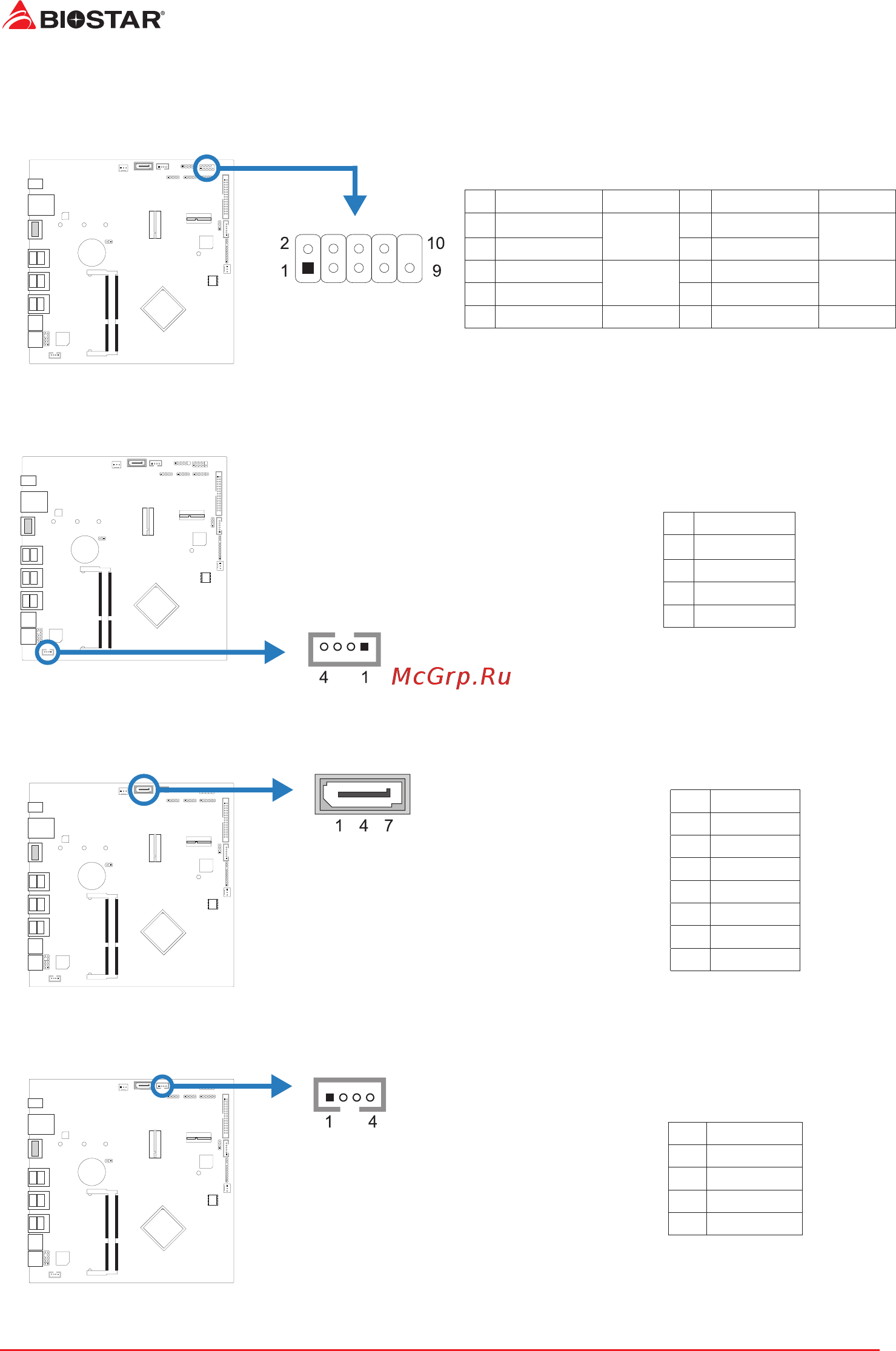

JPANEL1: Front Panel Header
This connector includes Power-on, Reset, HDD LED and Power LED connecons. It allows user
to connect the PC case’s front panel switch funcons.
Pin Assignment Funcon Pin Assignment Funcon
1 VCC3_3
HDD LED
2 Power LED (+)
Power
LED
3 FP_SATA LED 4 Power LED (-)
5 Ground
Reset
Buon
6 Power Buon
Power-On
Buon
7 Reset Control 8 Ground
9 N/A N/A 10 N/A --
SPK: Chassis Speaker Header
Please connect the chassis speaker to this header.
Pin Assignment
1 SPKRN
2 SPKRP
3 SPKLP
4 SPKLN
SATA1: Serial ATA Connectors
These connectors connect to SATA hard disk drives via SATA cables.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
SATA_PWR: SATA Power Source Connector
This connector allows you SATA power connector to the SATA hard drive.
Pin Assignment
1 12V
2 Ground
3 Ground
4 5V
