Biostar J4105TH Версия 6.x [42/55] Jpanel1 前置面板接头

12 | 第二章: 硬件安装

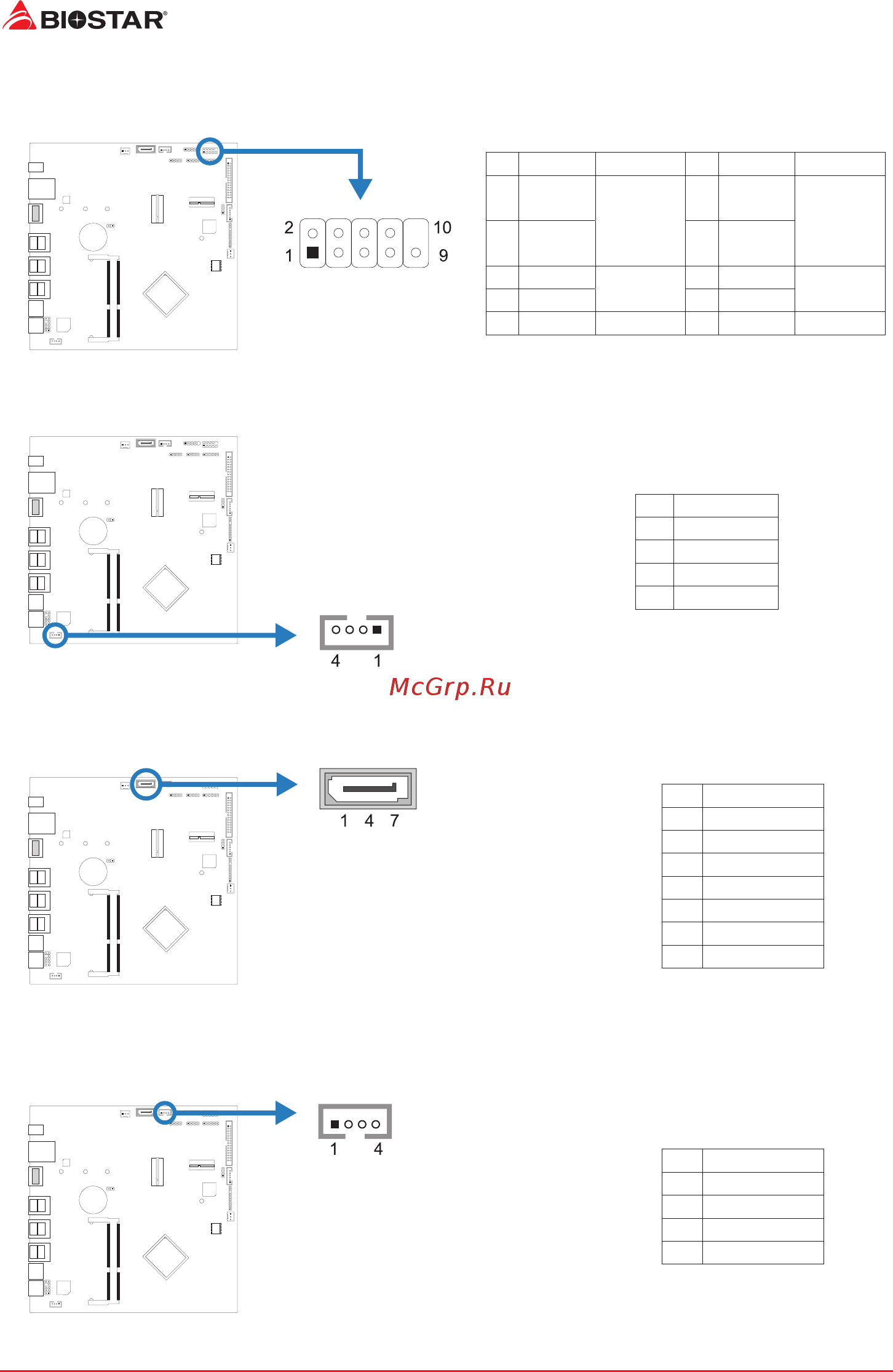

JPANEL1: 前置面板接头

此10针脚接口包含开机，重启，硬盘指示灯和电源指示灯。

针定义功能针定义功能

1 VCC3_3

硬盘指示灯

Power

LED (+)

电源指示灯

FP_SATA

LED

Power

LED (-)

5 接地

重启按钮

6 电源按钮

开机按钮

7 重启 8 接地

9 N/A N/A 10 N/A --

SPK: 扬声器接头

此4针脚接口连接扬声器。

针定义

1 SPKRN

2 SPKRP

3 SPKLP

4 SPKLN

SATA1: 串行ATA接口

此接口通过SATA数据线连接SATA硬盘。

针定义

1 接地

2 TX+

3 TX-

4 接地

5 RX-

6 RX+

7 接地

SATA_PWR: 串行ATA电源接口

此接口通过SATA电源连接器连接到SATA硬盘驱动器。

针定义

1 12V

2 接地

3 接地

4 5V
