第二章: 硬件安装 | 11
J4105TH

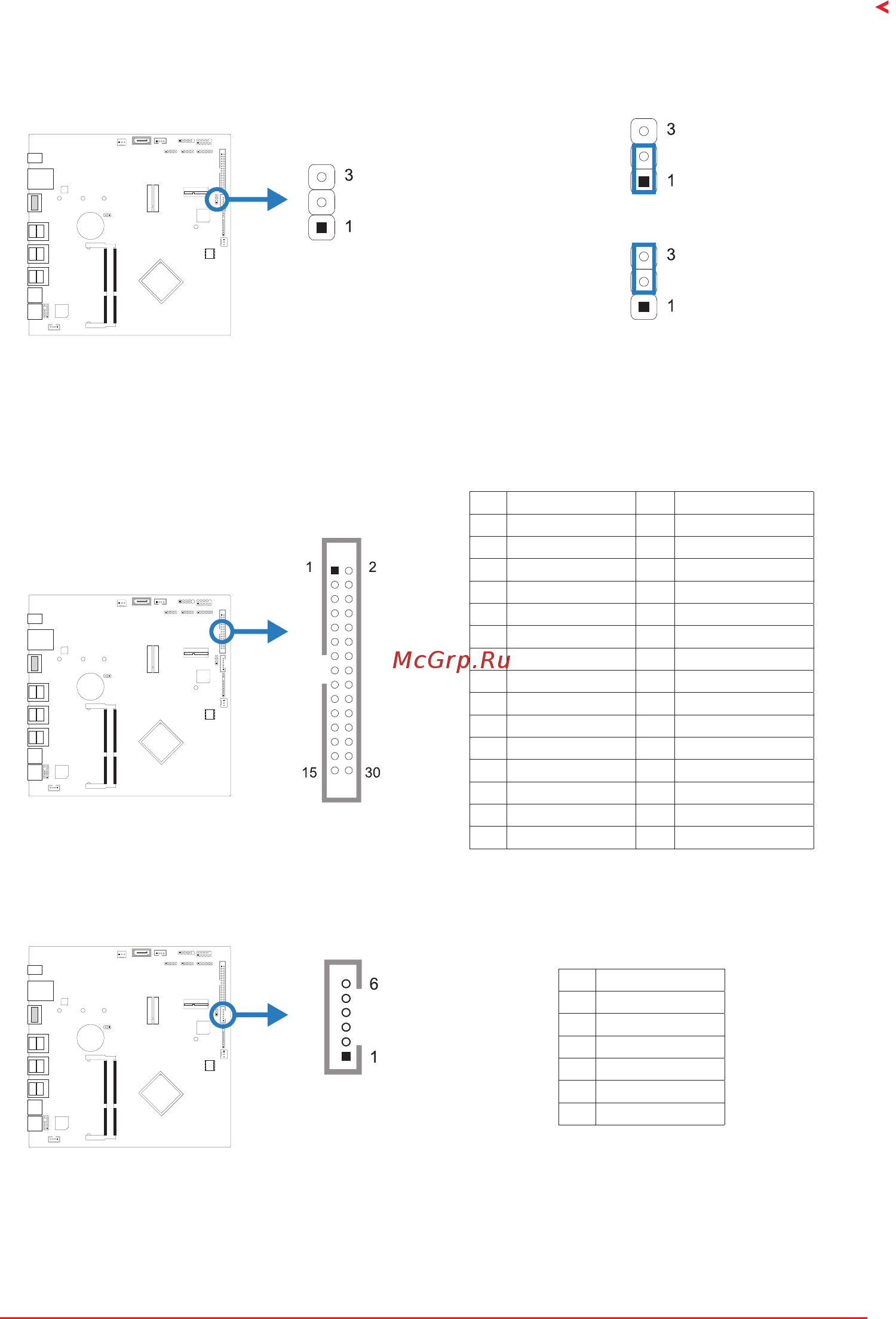

BL_VOL_SEL: LCD背光升压器电源选择跳线接头
该跳线用于选择LCD背光升压器电源。
Pin 1-2 打开: 升压器电源=5V(默认)
Pin 2-3 闭合: 升压器电源=12V
2�5 接口和插槽
LVDS_CON1: LVDS接头
该连接器支持双通道18/24位LCD面板。
针 定义 针 定义
1 LCDVDD 2 LCDVDD
3 LCDVDD 4 接地
5 接地 6 接地
7 LVDSA_Data0N 8 LVDSA_Data0P
9 LVDSA_Data1N 10 LVDSA_Data1P
11 LVDSA_Data2N 12 LVDSA_Data2P
13 接地 14 接地
15 LVDSA_CLKN 16 LVDSA_CLKP
17 LVDSA_Data3N 18 LVDSA_Data3P
19 LVDSB_TX0N 20 LVDSB_TX0P
21 LVDSB_TX1N 22 LVDSB_TX1P
23 LVDSB_TX2N 24 LVDSB_TX2P
25 接地 26 接地
27 LVDSB_CLKN 28 LVDSB_CLKP
29 LVDSB_TX3N 30 LVDSB_TX3P
CN1: 升压器接头
该连接器用于连接LCD以提供背光控制功能。
针 定义
1 Power
2 Power
3 LBKLT_En
4 BKLT_Ctrl
5 接地
6 接地
