2. Hardware Description
The VC-231 provides 1 RJ-11 port for VDSL2 connection, for
both VDSL2 connection and voice connection service operate at
the same time. The Additional splitter from package of VC-231
can help VC-231 work in this way easily.
The VC-234 provides 2 RJ-11 ports for voice connection (like
telephone) and for network line connection.
The VC-231 provide 1 RJ-45 port and VC-234 provide 4 RJ-45
ports for two different running speed –10Mbps, 100Mbps, in the
same converter / bridge and automatically distinguish the speed
of incoming connection.
This section describes the hardware features of the Ethernet
over VDSL2 Converter / Bridge. For easier control of the
converter / Bridge, familiarize yourself with its display indicators,
and ports. Front panel illustrations in this chapter display the
unit LED indicators. Before connecting any network device to the
converter / Bridge, read this chapter carefully.
2.1 Front Panel
The units’ front panel provides a simple interface monitoring the
Ethernet over VDSL2 Converter.

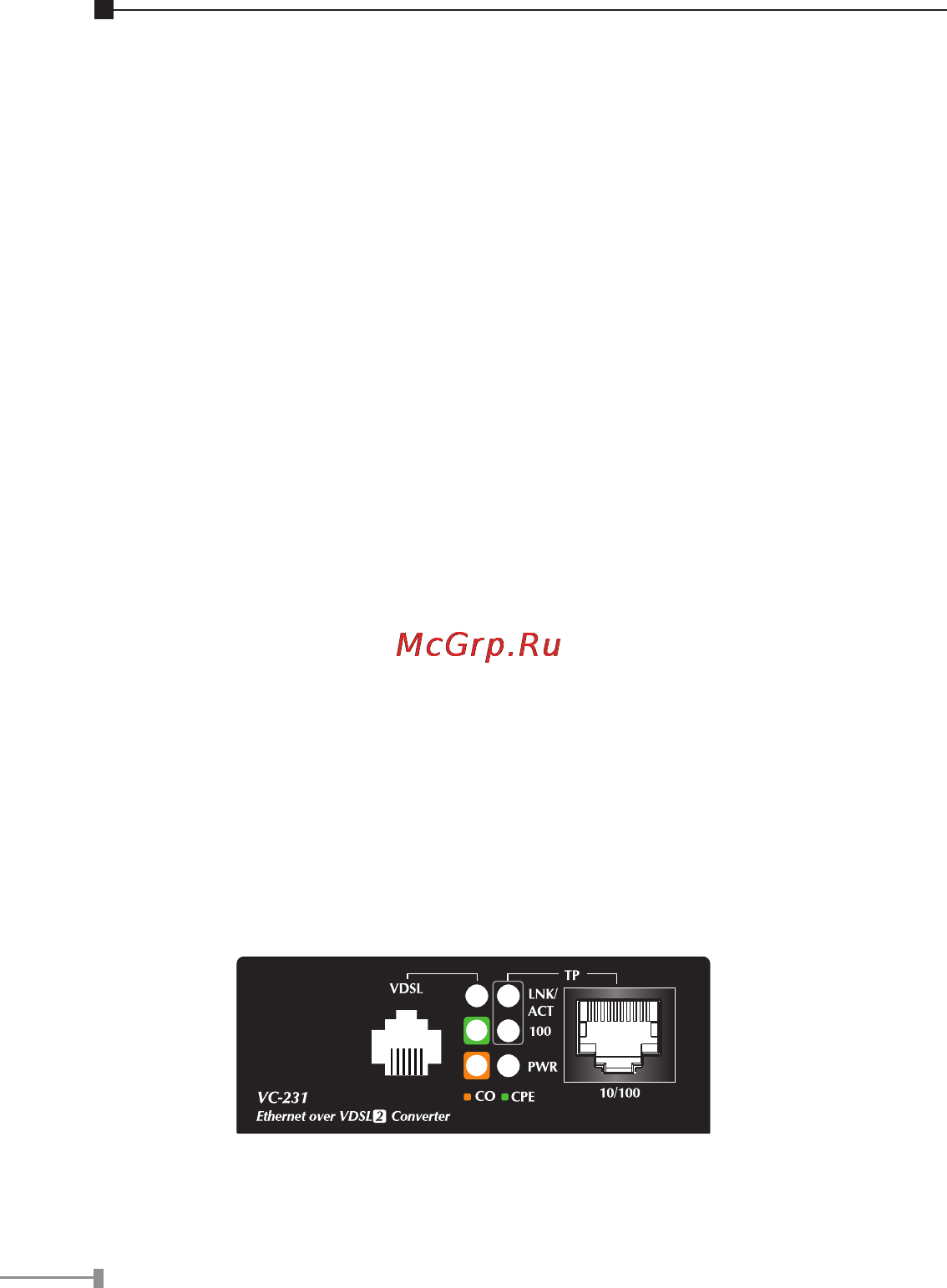

n VC-231 Front Panel
Figure 2-1: VC-231 front panel
