16

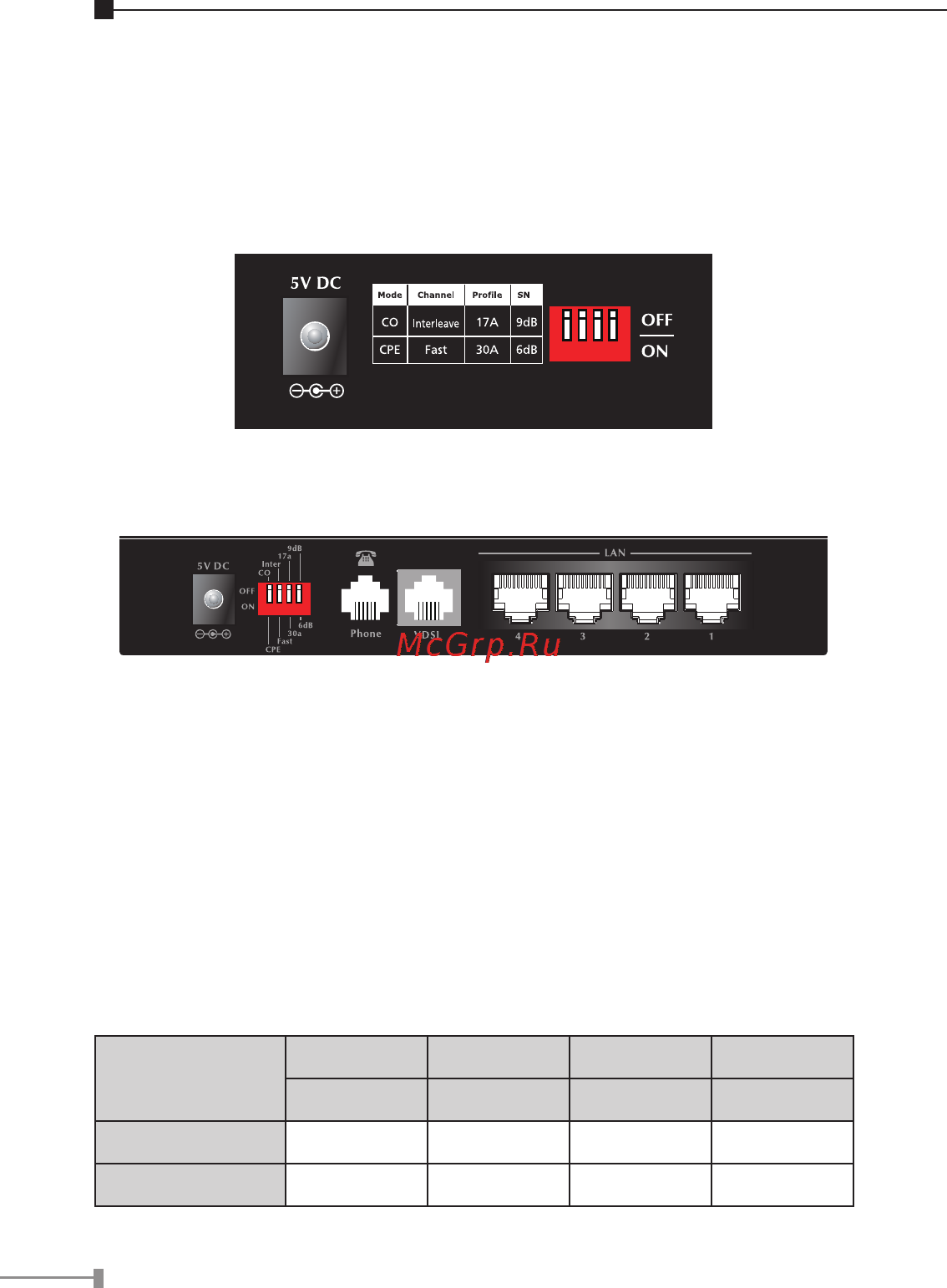

2.2 The Rear Panel
The rear panel of the Ethernet over VDSL2 Converter is shown
as below.
n VC-231 Rear Panel
1 2 3 4
Figure 2-3: VC-231 rear panel
n VC-234 Rear Panel
1 2 3 4
Figure 2-4: VC-234 rear panel
2.2.1 MODE DIP Switch
The Ethernet over VDSL2 Converter provides 4 selective
transmission modes. By switching the transmission modes,
you can obtain a best transmission mode to suit with phone
line quality or distance of connectivity. The following is the
summary table of transmission setting, bandwidth and distance
extensibility tested for AWG 24 (0.5mm) twisted-pair without
noise and cross talk.
DIP-1 DIP-2 DIP-3 DIP-4
Mode Channel Prole SNR
OFF CO Interleave 17A 9dB
ON (default) CPE Fast 30A 6dB
