3.3 Chassis Installation and Rack Mounting (VC-231)

To install the Ethernet over VDSL2 Converter in a 10-inch or 19-

inch Converter Chassis with standard rack, follow the instructions

described below.

Step 1: Place your VC-231 on a hard at surface, with the

front panel positioned towards your front side.

Step 2: Carefully slide in the module until it is fully and rmly

tted into the slot of the converter chassis.

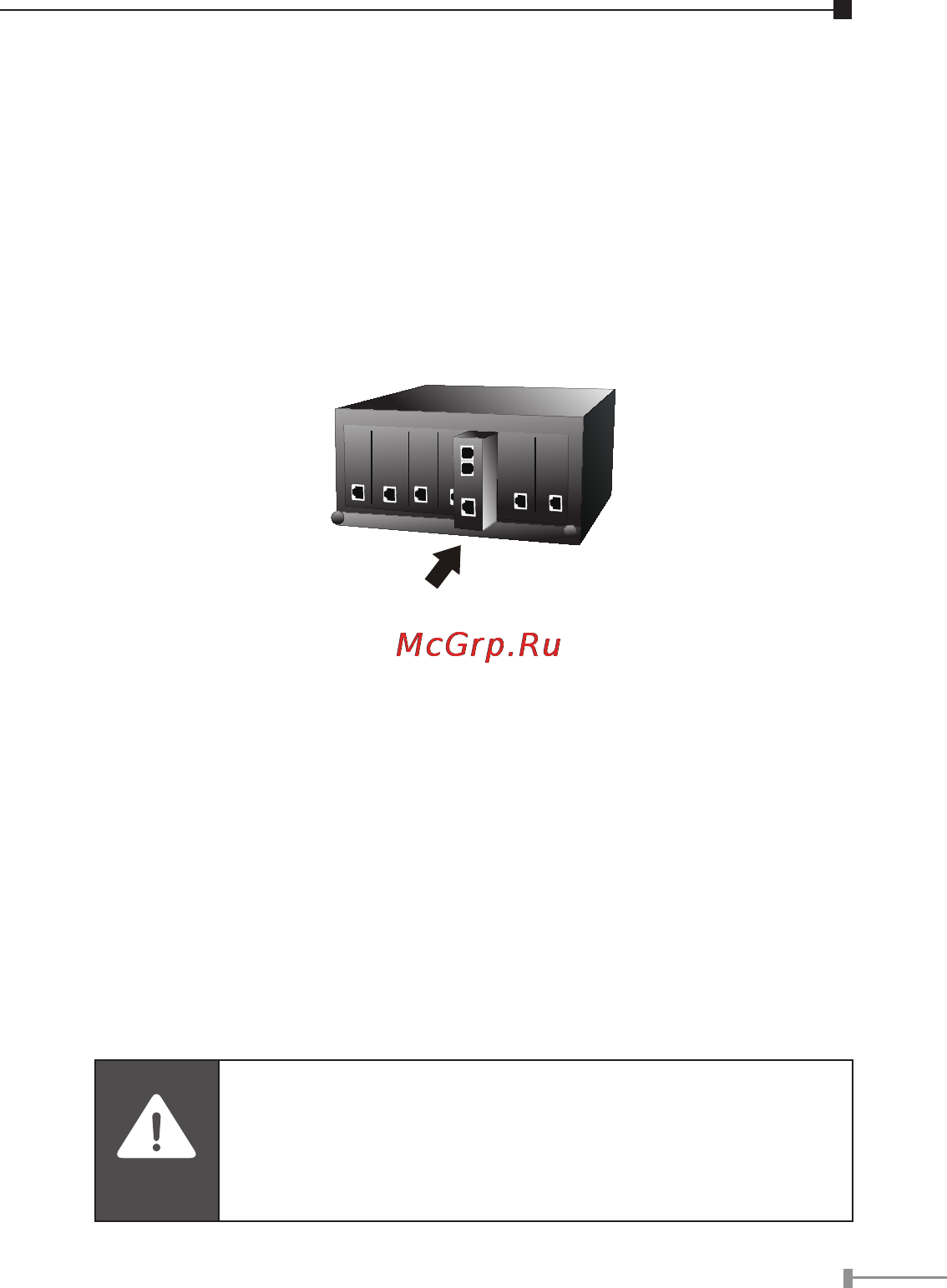

Figure 3-5: Insert a VDSL2 converter into an available slot

Step 3: Attach a rack-mount bracket to each side of the

Converter Chassis with supplied screws attached to

the package.

Step 4: After the brackets are attached to the Converter

Chassis, use suitable screws to securely attach the

brackets to the rack.

Step 5: Connect one end of the power cable to the 10-inch or

19-inch Converter Chassis.

Step 6: Connect the power plug of the power cable to a

standard wall outlet then power on the 10-inch or 19-

inch Converter Chassis, the PWR LED should light on.

Caution

You must use the screws supplied with the

mounting brackets. Damage caused to the parts

by using incorrect screws would invalidate your

warranty.
