3.2 Connecting VC-231 / VC-234

3.2.1 Connecting Standalone PC

Refer to the following procedures to setup the VC-231 to a

standalone PC.

1. Set the VC-231 to be CO mode or CPE mode from the DIP

switch at the rear panel.

2. Power on the VC-231 by connecting its power source.

3. Power LED will illuminate.

4. Use one RJ-11 wire and make a connection between VC-231

and “Line” port of splitter from VC-231 package.

5. Connect VDSL line from another VDSL device to DSL port of

the splitter that connects to VC-231 VDSL port.

6. LNK LED will from blinking to illuminate.

7. Connect telephone to the PHONE port of the splitter that

connects to VC-231 VDSL port.

8. Connect VC-231 Ethernet port to PC Network Interface Card

(NIC) via regular Cat. 5 cables.

Telephone wire

100Base-TX UTP

VC-231

Phone

RJ-11 Phone Jack

Splitter

RJ-11 Line Cord

Phone

RJ-45 Cat.5

Twisted Pair Cable

VDSL

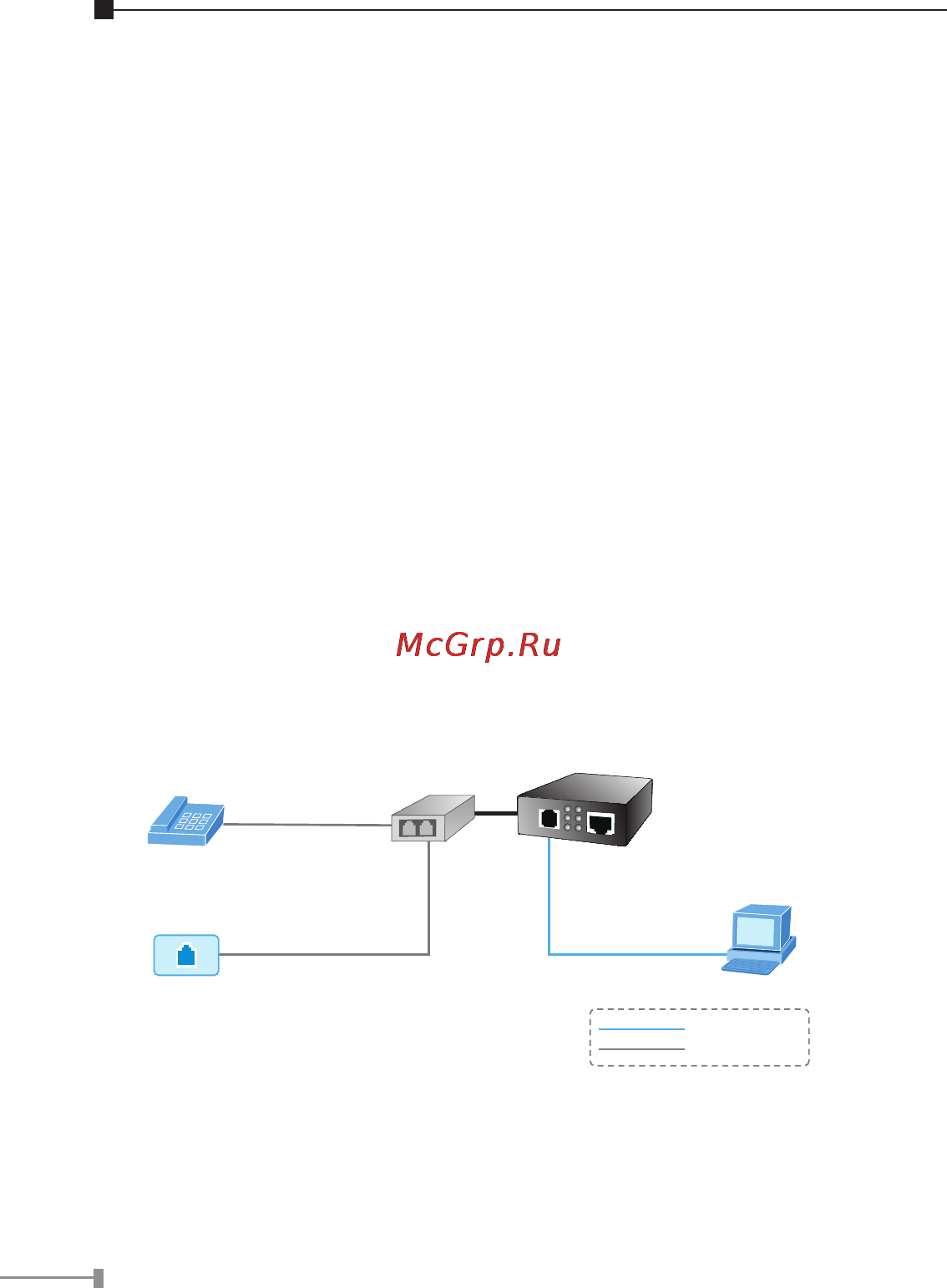

Figure 3-3: Connecting Standalone PC
