Motherboard Manual
28
Notices:
Not all types of AMD CPU perform above overclock setting ideally; the difference will be based on the
selected CPU model.
B. Memory Integration Test (M.I.T.)
This function is under “Overclocking Navigator Engine” item.
MIT allows users to test memory compatibilities, and no extra devices or
software are needed.

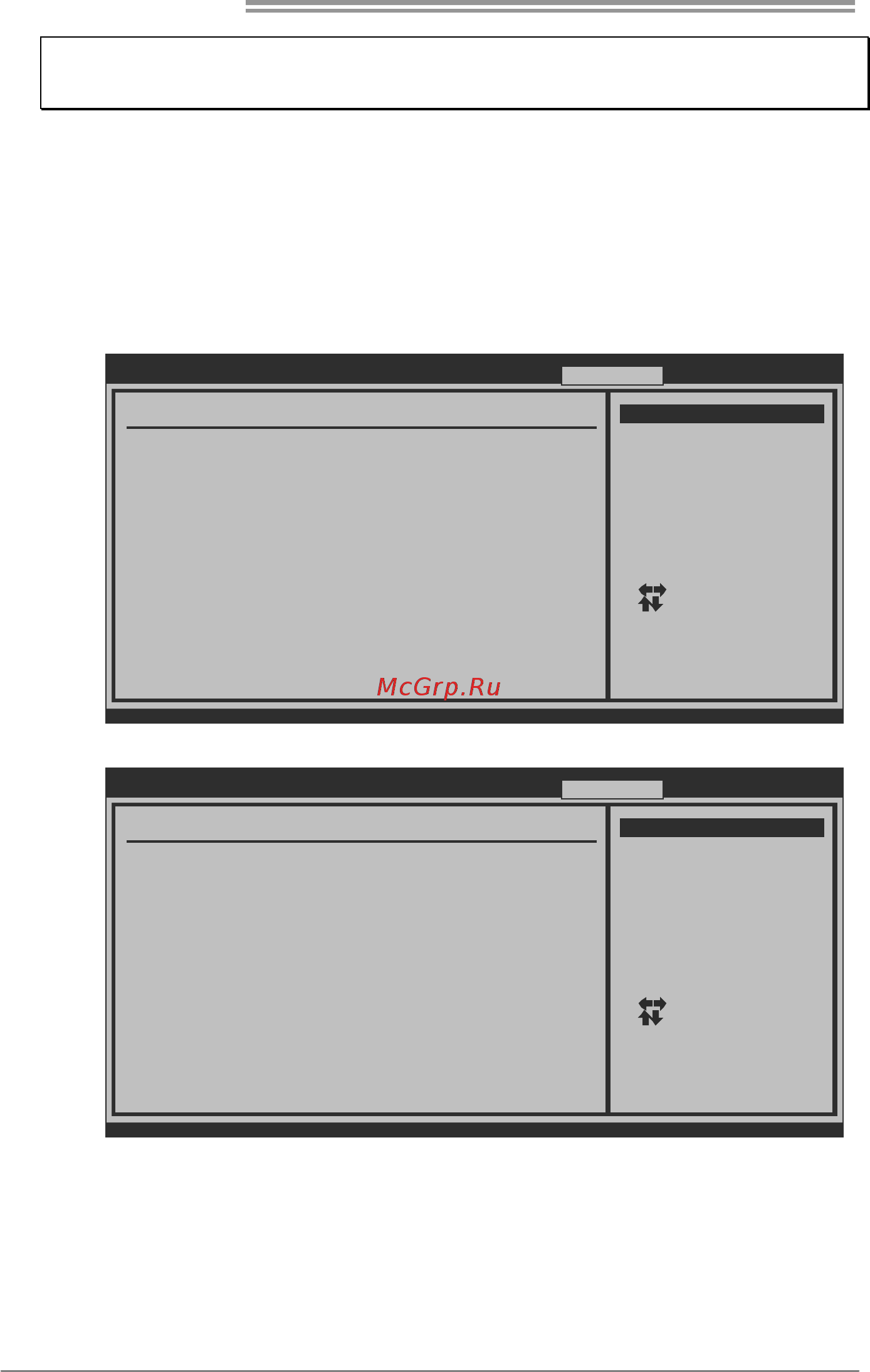

Step 1
The default setting under this item is “Disabled”; the condition parameter should
be changed to “Enable” to proceed this test.
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset T-Series
vxx.xx ( C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
T-Series Settings
=========== Automate OverClock System ===========
============ Manual OverClock System ============
WARNING: Please Clear CMOS if system no display
after overclocking.
OverClock Navigator [Normal]
Auto OverClock System [V6-Tech Engine]
> Over-Voltage Configuration
CPU Frequency [200]
> CPU FID/VID Control
> DRAM Timing Configuation
> Hyper Transport Configuration
> Memory Configuration
> G.P.U Phase Control
Integrated Memory Test [Disabled]
Exit
Options
Enabled
Disabled
↓
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset T-Series
vxx.xx ( C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
T-Series Settings
=========== Automate OverClock System ===========
============ Manual OverClock System ============
WARNING: Please Clear CMOS if system no display
after overclocking.
OverClock Navigator [Normal]
Auto OverClock System [V6-Tech Engine]
> Over-Voltage Configuration
CPU Frequency [200]
> CPU FID/VID Control
> DRAM Timing Configuation
> Hyper Transport Configuration
> Memory Configuration
> G.P.U Phase Control
Integrated Memory Test [Enabled]
Exit
Options
Enabled
Disabled
Step 2
Save and Exit from CMOS setup and reboot the system to activate this test.
Run this test for 5 minutes (minimum) to ensure the memory stability.
Step 3
When the process is done, change the setting back from “Enable” to “Disable”
to complete the test.
