TA770E3/TA770XE3/TA790XE3

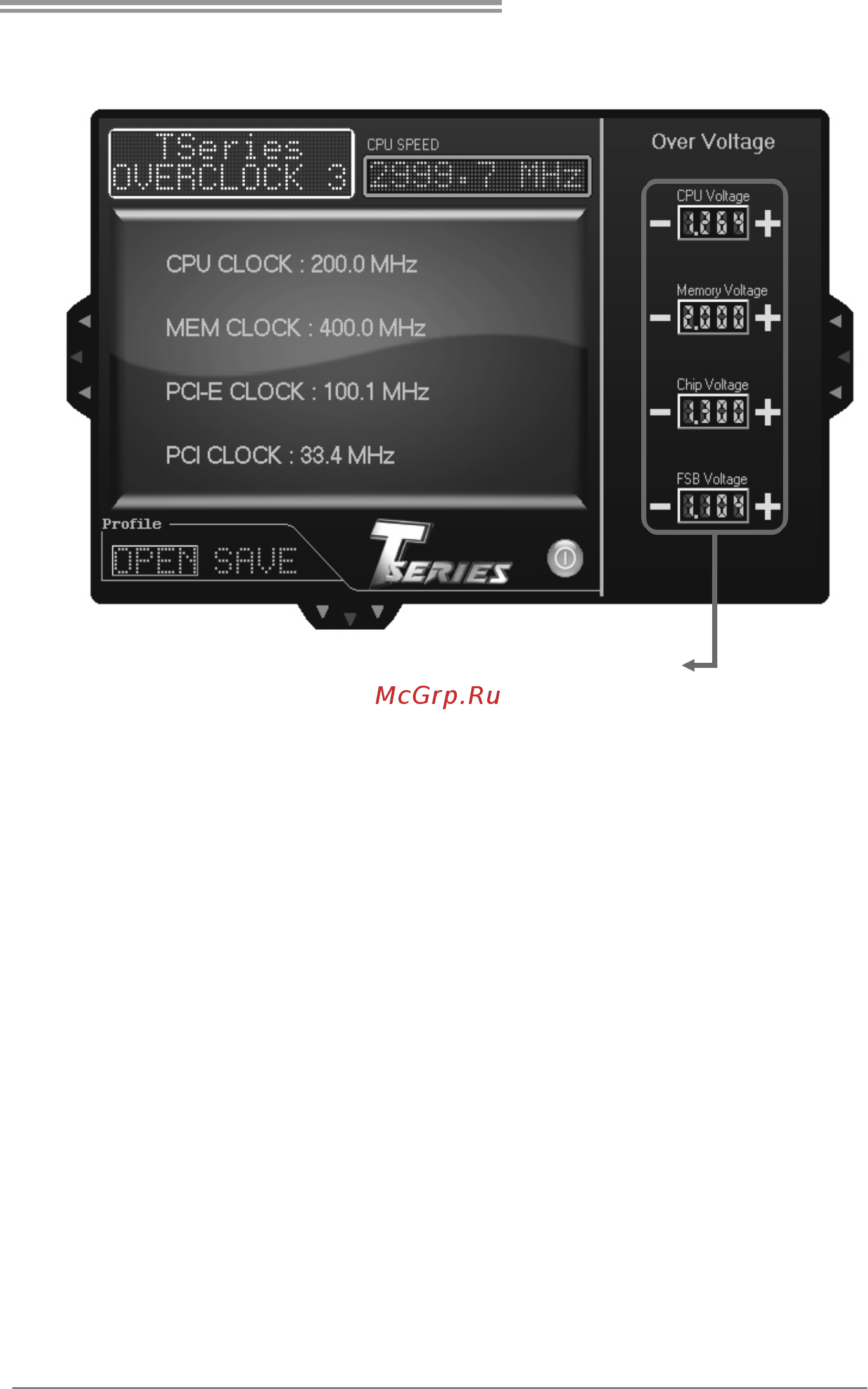

Over Voltage Panel

Manual Adjust

CPU/Memory/Chipset/FSB Voltage

CPU Voltage

This function allows user to adjust CPU voltage. Click on “+” to increase

or “-“ to decrease the CPU voltage.

Memory Voltage

This function allows user to adjust Memory voltage. Click on “+” to

increase or “-“ to decrease the Memory voltage.

Chip Voltage

This function allows user to adjust Chipset voltage. Click on “+” to

increase or “-“ to decrease the Chipset voltage.

FSB Voltage

This function allows user to adjust FSB voltage. Click on “+” to increase

or “-“ to decrease the FSB voltage.
