Control Systems
2221

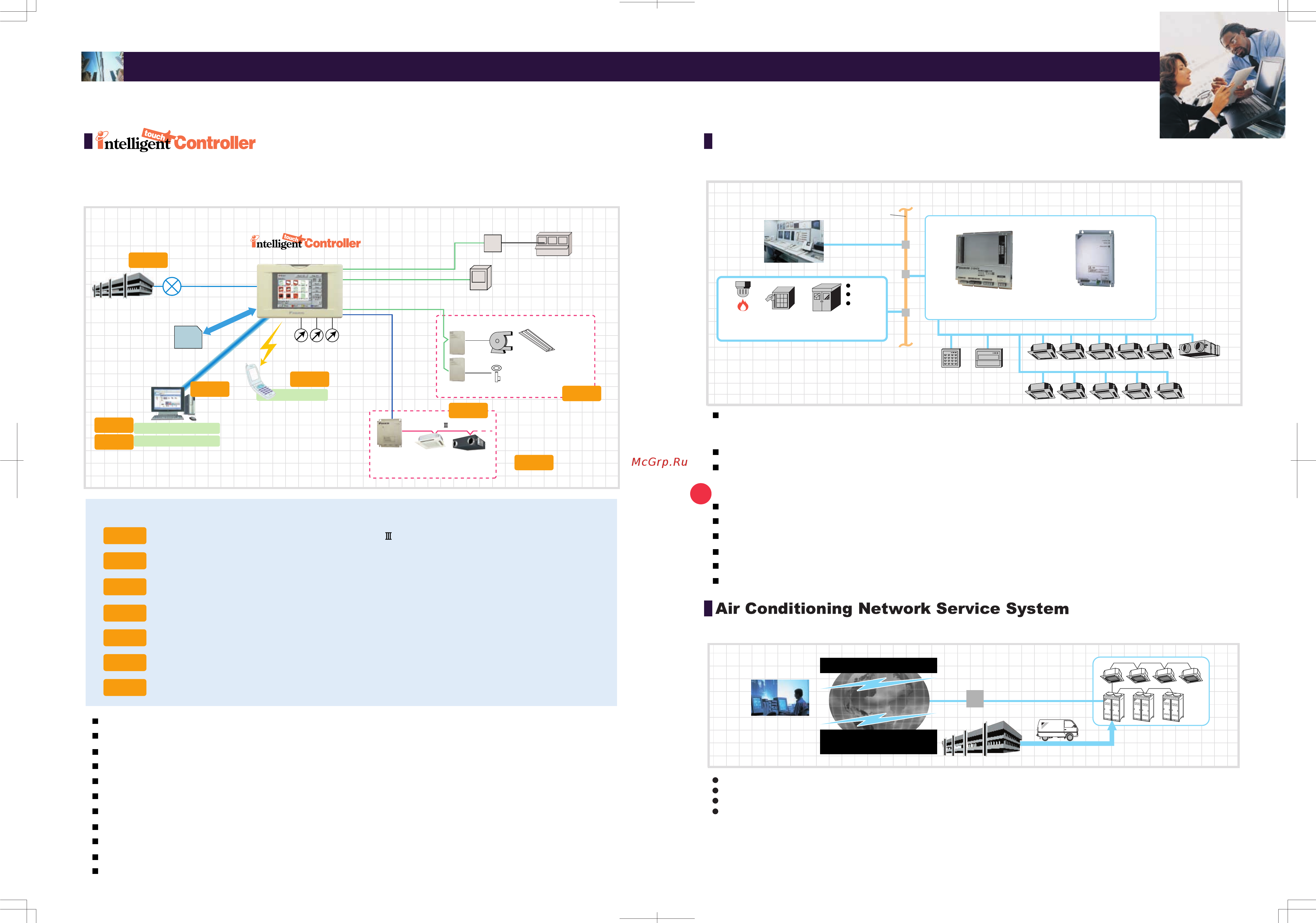

Advanced control systems
Ethernet
Local Controller
Please contact Daikin for compatibility with BMS system
Security
Power supply facility
Fire alarm
Lift
Pump
Lighting
...
etc
BMS
HRV
VRV System
Integrated control systems that recognise the trend of open control systems
Compatibility with BMS enhanced by utilising the international communication standards, BACnet
®
or LONWORKS
®
.
XIF file for confirming of specifications of the units.
Connectable up to 10 outdoor units and 64 indoor unit groups.
Conformance class 3 (ASHRAE 135–1995)
Standard BACnet
®
Device B-ASC (ASHRAE 135–2001)
PPD data (Optional Di board is required.)
ISO 16484-5 (Does not support IEEE 802.3 protocol for BACnet
®
)
Compliant with the RoHS Directive (refer to page 13 for details.)
Up to 40 outdoor units and 256 indoor unit groups on one gateway. (optional adapter)
DMS504B51 Interface for use in LONWORKS
®
DMS502B51 Interface for use in BACnet
®
Local dealers
I/F unit
*
5
Automatic data transfer
Mainfunction information
by E-mail
INTERNET
*
1.
There are restrictions in applicable areas and release times, therefore please consult us separately for details.
*
2.
Model name varies upon the system size.
*
3.
BACnet
®
is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE).
*
4.
LONWORKS
®
is a registered trade mark of Echelon Corporation.
*
5.
For an I/F unit, one of the following can be selected:
Local Controller
, intelligent touch Controller, or intelligent Manager III.
*
6.
Ethernet is a registered trademark of Xerox Corporation.
*
7.
Refer to the Options page for the name of each model.
ACC center
Maintenance services that boost profits and customer satisfaction
24 hour on-line diagnostic system
Energy saving and extention of aircon operating life
Maintenance management via A /C network service system reports
Reliable service at shortest lead time
DMS502B51
(Interface for use in BACnet
®
)
DMS504B51
(Interface for use in LONWORKS
®
)
Communication functions in the user-friendly icon-based multilingual
controller simplify centralised control of the VRV system.
Colour LCD touch panel icon display
Small manageable size
Simplified engineering
Multi language (English, French, Italian, German, Spanish and Chinese)
Yearly schedule
P.P.D. (Power Proportinal Distribution function) (Optional)
Auto heat/cool change-over
Temperature limitation
History of 500 actions
Air Conditioning Network Service System (Optional Maintenance Service)
Simple Interlock Function
Support for centralised control from elsewhere using a PC with a Web browser (Optional)
Sending of e-mail alerts to a specified address when malfunctions occur (Optional)
Built-in modem for connecting to Airnet Service System (Optional)
Built-in Ethernet port for connecting to the Internet or an intranet
Management of facilities / equipment other than A/C units
(Compatible with Dio unit and Di unit)
Doubling of number of control points by adding a D -NET Plus Adapter (Optional)
Special
Function 1
Special
Function 1
Special
Function 2
Special
Function 2
Special
Function 3
Special
Function 3
Special
Function 4
Special
Function 4
Special
Function 5
Special
Function 5
Special
Function 6
Special
Function 6
Special
Function 7
Special
Function 7
Simple Interlock Function
Special Functions
ACC center
• Air Conditioning Network Service System
