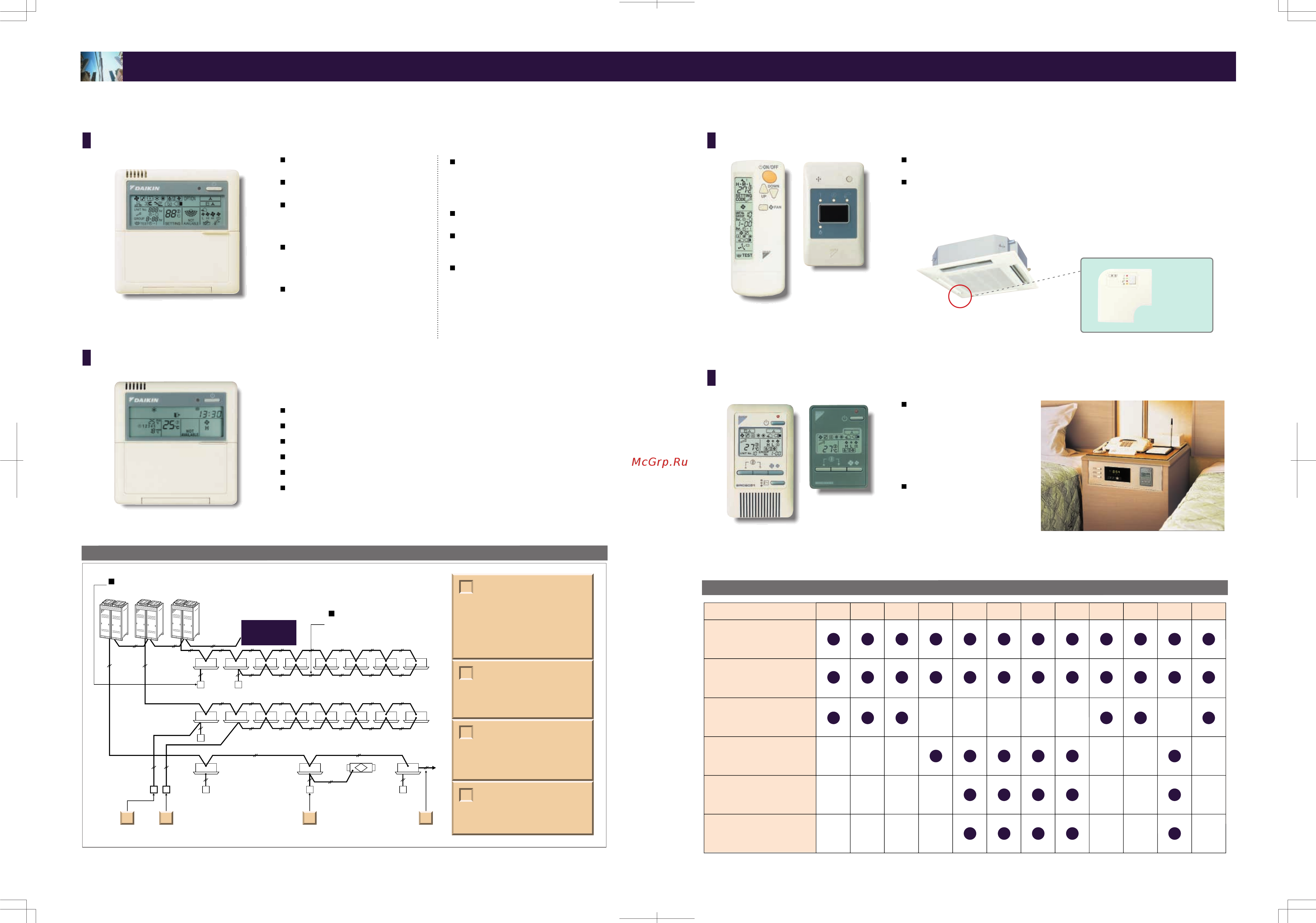

Control Systems
The same operation modes and settings as with wired remote controllers (BRC1C62
only) are possible.
A compact signal receiving unit to be mounted into a wall or ceiling is included.
• A signal receiving unit for a ceiling-mounted cassette (double-flow, multi-flow) type,
ceiling-suspended type and wall-mounted type is mounted into the indoor unit.
The remote controller has
centralised its frequently used
operation selectors and
switches (on/off, operation
mode, temperature setting and
airflow volume), making itself
suitable for use in hotel rooms
or conference rooms.
The exposed type remote
controller is fitted with a
thermostat sensor.
Signal receiver unit
(Separate type)
Wireless remote
controller
The concealed-type remote controller smartly fits into a
night table or console panel in a hotel room.
Exposed type
(BRC2C51)
Concealed type
(For hotel use)
(BRC3A61)
Wireless remote controller (Optional)
Simple remote controller (Optional)
Signal receiver unit
(Installed type)
Signal receiving unit can be
installed on the panel
ex. Ceiling mounted cassette (multi-flow) type
Wired remote controller
Wired remote controller
with weekly schedule timer
Wireless remote controller
(Installed signal receiver unit)
Wireless remote controller
(Separate type signal receiver unit)
Simple remote controller
(Exposed type)
Simple remote controller
(Concealed type: for Hotel use)
FXCQ FXFQ FXKQ FXSQ FXMQ FXHQ FXAQFXDYQFXZQ FXL
(
N
)
Q FXUQFXDQ
Individual Control Systems
*Refer to page 58 for the name of each model.
Easier to read because LCD screen
is larger.
Digital display lets you set
temperature in 1°C units.
Lets you individually programme by
timer the respective times for
operation start and stop within a
maximum of 72 hours.
Equipped with a thermostat sensor in
the remote controller that makes
possible more comfortable room
temperature control.
Enables you to select cool/heat/fan
operation mode with the indoor
remote controller of your choice
without using the cool/heat selector.
(dependant on system)
Equipped with self-diagnosis function
that constantly monitors the system for
malfunctions. Should a problem occur,
the system alerts you of the problem
through an alphanumeric code.
Lets you carry out various field settings
by remote controller.
Enables you to select the ventilation
mode and the volume of the HRV
(when connected to a VAM).
The rubber switch and the oil-resisting
resin casing have been adopted for
durability.
* When the auto-swing function is not available, the
message, THIS FUNCTION IS NOT AVAILABLE is
displayed when the air direction adjustment button is
pressed.
Wired remote controller (Optional)
BRC1C62
Wired remote controller with weekly schedule timer (Optional)
BRC1D61
24-hour clock function (1-hour backup for power failures)
Includes ventilation mode and airflow rate switching, the main functions of HRV series.
Programming function for each day of week.
Scheduling possible of start/stop and temperature limit (5 settings/day)
Programming can be enabled or disabled.
Copy function for programmed schedules.
Adds advanced functions to those of the above wired remote
controller.
Notes: 1. Standard remote controllers (BRC1C62) not required.
2. If the BRC1D61 is connected to the centralised remote controller,
the schedule function is not available.
Outdoor
unit
Indoor unit
Forced OFF
input
Remote controller
Remote controller
Remote controller
Remote controller
Remote controller
Remote controller
Remote
controller
Remote
controller
HRV
The indoor unit can be connected by the two
remote controller, for example one in the room
and the other one in the control room, which
can control the operation of indoor unit freely.
(The last command has a priority.) Of course,
the group control by two remote controller is
also possible.
Control by two remote controller
The system can be expanded to add
several controllers, such as BMS, Forced
OFF input and etc.
Expansion of system control
In all the series of VRV, Cool/Heat changeover in the same refrigerant
circuit can be changed by the master remote controller of an indoor unit.
Control of Cool/Heat
changeover
One remote controller can
control the operation of max.16
indoor units at the same time.
Group control
Equipment
related to the
central control
1 2 3
The wiring of remote controller can be
extended to max. 500m and it is possible
to install the remote controllers for the
different indoor units in one place.
Remote control
The operation of HRV can be controlled by
the remote controller of the indoor unit. Of
course, the remote controller can display
the time to clean the filter.
Control for the combined operation
4
4
3
2
1
Wide variation of remote controllers for indoor unitsWide variation of remote controllers for indoor units
Wide variation of remote controllers for indoor unitsThe wired remote controller supports a wide range of control functions
