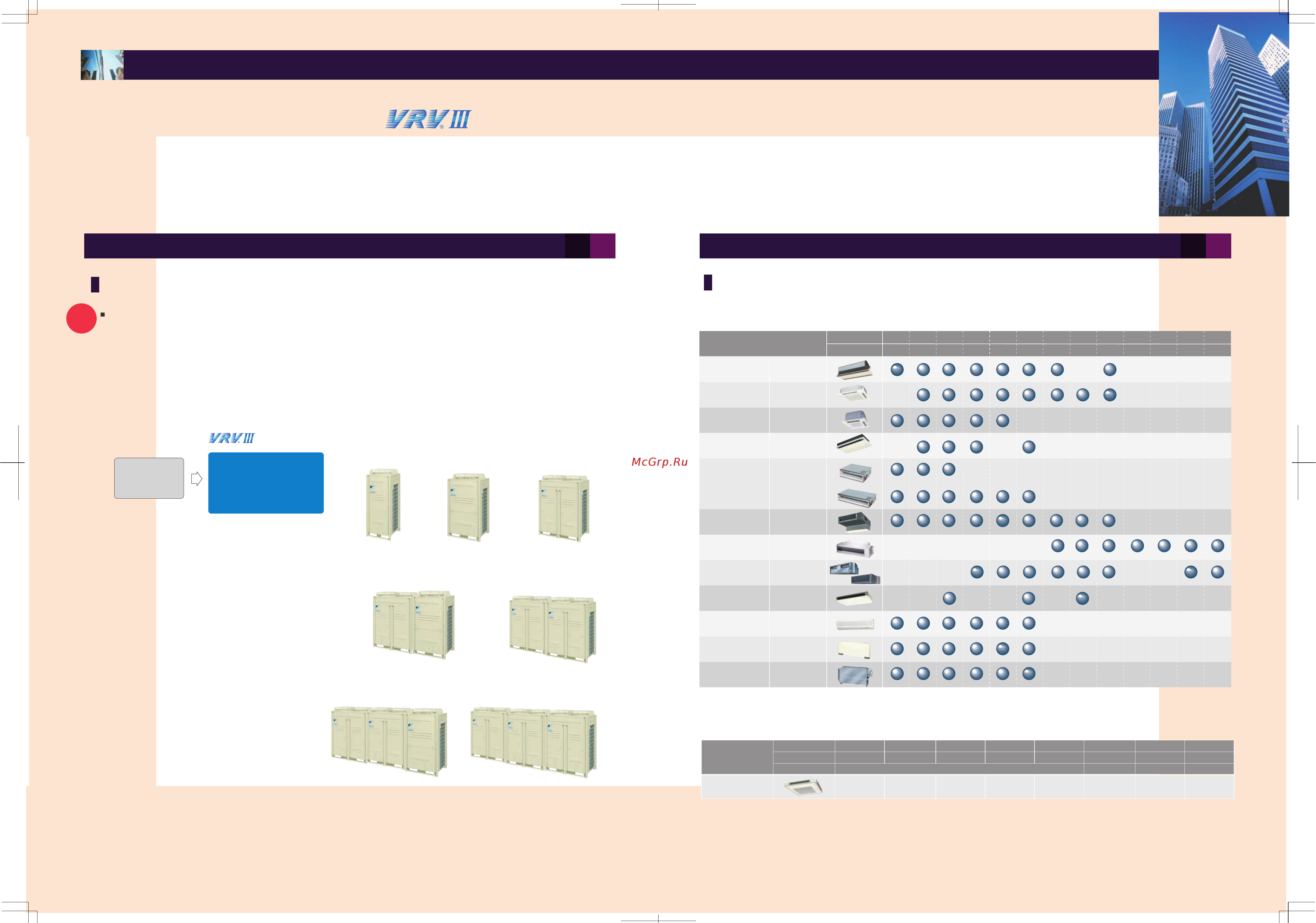

Large capacities for large-sized buildings Large capacities for large-sized buildings
Main Features
87
Daikin’s indoor unit system offers a large number of connectable indoor units—64! Furthermore, our wide range of
indoor units includes 14 types and 82 models to meet the needs of customers.
Indoor units
The previous outdoor unit had a maximum output of 48 class (132 kW). The new units have a top
output of 54 class (147 kW)! Three more – a 50 class (138 kW) model, a 52 class (143 kW) model,
and a 54 class (147 kW) model, have been introduced, as well as a single 18 class (49 kW) model
that may serve as the main unit in combination solutions. With the introduction of these new models,
outdoor unit combinations can be made more compact and flexible to suit large-sized buildings.
* Refer to page 39 for combination details.
Outdoor units
48 class
(132 kW)
54 class
(147 kW)
Ceiling mounted
cassette
(Double flow)
Type
Capacity Range
Capacity index
20 40 62.5 80 100 125 1455031.2525
2.2 kW 4.5 kW 7.1 kW 9 kW 11.2 kW 14 kW 16.2 kW
180
20 kW
200 250
22.4 kW 28 kW5.6 kW3.6 kW2.8 kW
Ceiling mounted
cassette (Multi flow)
super cassette
FXCQ-M
FXFQ-M
Slim ceiling
mounted duct
Ceiling mounted
duct
Ceiling suspended
Wall mounted
Floor standing
Concealed
floor standing
Ceiling mounted
cassette corner
FXDQ-NAVE
(900/1,100 mm width type)
FXMQ-MA
FXHQ-MA
FXAQ-MA
FXLQ-MA
FXNQ-MA
FXKQ-MA
600
X
600 Multi Flow
Ceiling Mounted
Cassette
FXZQ-M8
Ceiling mounted
built-in
FXSQ-M
Ceiling Concealed
(Duct)
FXDYQ-M
FXDQ-PVET
(700 mm width type)
• R410A VRV system indoor units are not compatible with the R22 VRV system.
Note:
Offering a higher capacity of up to 54 class (147 kW),
responding to the needs of large-sized buildings
30, 32, 34, 36 class
38, 40, 42, 44, 46 class 48, 50, 52, 54 class
5 class 8, 10 class 12, 14, 16, 18 class
20, 22, 24, 26, 28 class
VRVII
MA series
New
The latest technology is implemented in the VRVIII system. Surpassing even the VRVII, the new VRVIII responds
to more of the needs of our customers that require air-conditioning solutions for large-sized buildings.
Major advances of the VRVIII over the VRVII for large-sized buildings
Ceiling suspended
cassette
Type
—
4.5 kW2.2 kW 3.6 kW2.8 kW
— — — —
Capacity Range
Connection Unit
20 4031.2525
BEVQ125MAVE
14 kW
BEVQ100MAVE
BEVQ71MAVE
5.6 kW 11.2 kW8 kW
— FXUQ71MAV1 FXUQ100MAV1 FXUQ125MAV1
50 12510071
Capacity Index
• Indoor units in the 63 class are not available for the above models.
• BEV units are necessary for Connection unit series indoor units. Refer to the Engineering Data for details.
Notes:
Connection unit series indoor units (For Heat Pump models only)
