6. Installing the Converter
Please follow these steps to install the PoE Media converter:
Turn off the power of the device/station in a network to which
the FTP-80X will be attached.
Ensure that there is no activity in the network.
Attach ber cable from the FTP-80X to the ber network. TX,
RX must be paired at both ends.
Attach a Cat. 5 UTP cable from the 10/100Base-TX network to
the RJ-45 port on the FTP-80X.
Connect the 48V DC power adapter to the FTP-80X and verify
that the Power LED lights up.
Turn on the power of the device/station, the TX Link and FX
Link LEDs should light when all cables are attached.

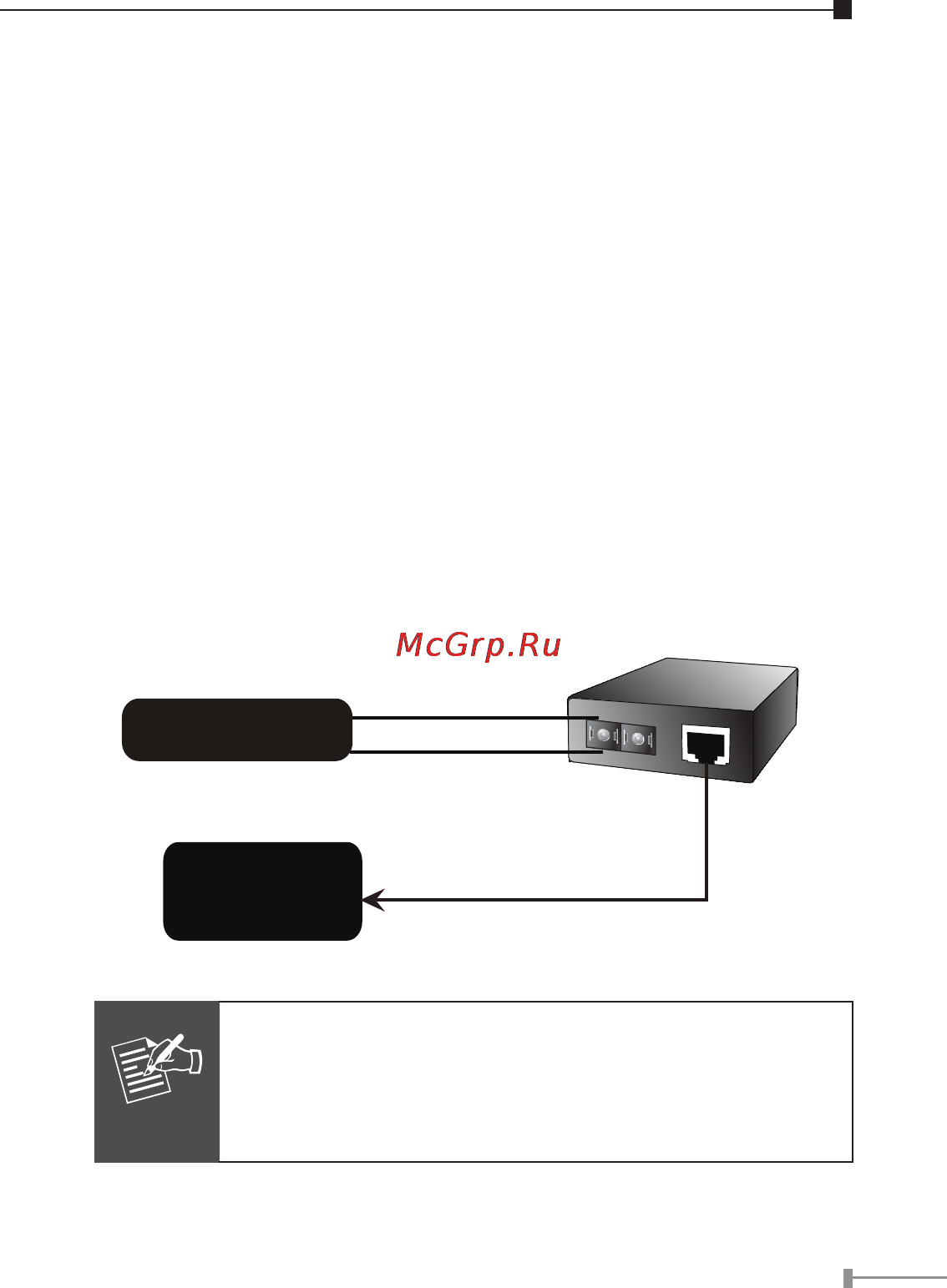

FTP-80X
10/100Base-TX
Cat. 5/5e TP
Cable Network
100Base-FX Fiber
Network
TX
TXRX
RX
Note
° RJ-45/STP, UTP Cat 5, straight /crossover cable
is accepted.
° Please refer to section 9 for more about the
wiring distance of your TP, Optic-fiber networks.
l
l
l
l
l
l
