K8T89-A7
11
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 HOW TO SETUP JUM PE RS

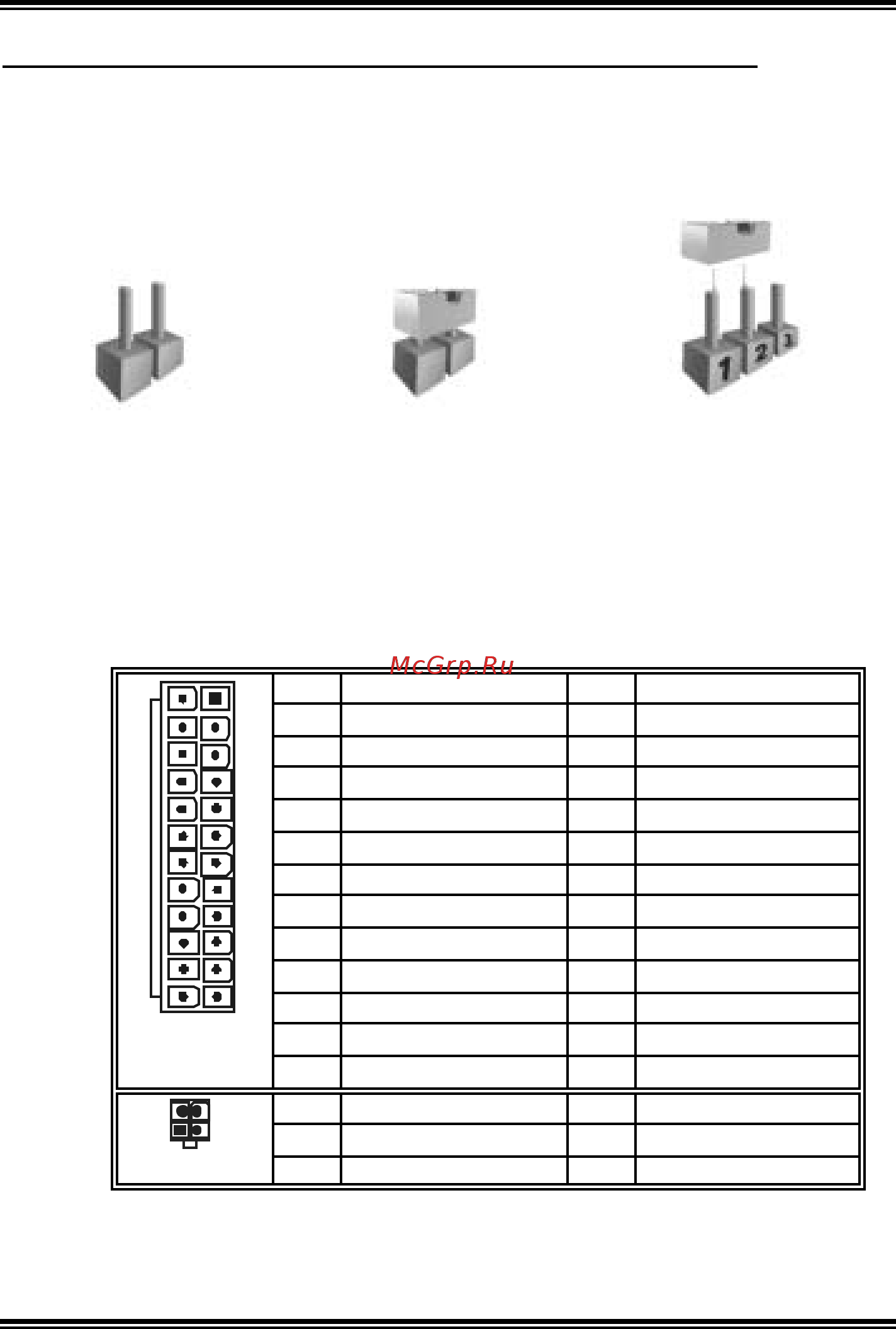

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
JATXPWR1/JATXPWR2: ATX Power Source Connectors
JATXPWR1: This connector allows user to connect with 24-pin power
connector on the ATX power supply.
JATXPWR2: By connecting this connector, it will provide +12V to CPU
power circuit.
Pin Assignment Pin Assignment
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PW_ON 20 -5V
9 Standby Voltage +5V 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
1
24
13
12
JATXPWR1
12 DETEC
T
24 Ground
Pin Assignment Pin Assignment
1 +12V 3 Ground
12
34
JATXPWR2
2 +12V 4 Ground
