K8T89-A7 BIOS Setup

Cache Se tup

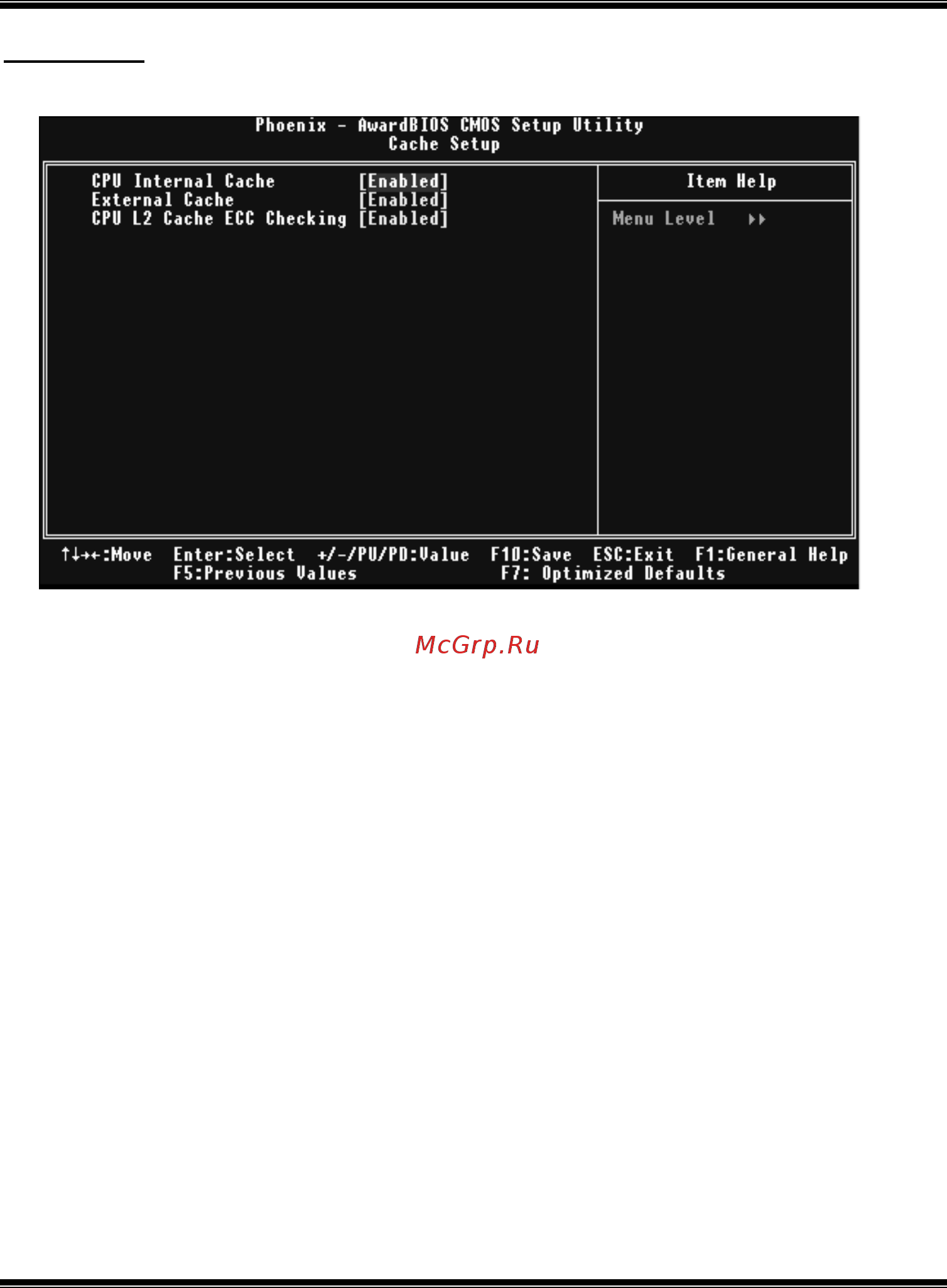

 Figure 3.3: Cache Setup

z CPU Internal Cache

Depending on the CPU/chipset in use, you may be able to increase memory

access time with this opt ion.

Enabled (default) Enable cache.

Disabled Disable cache.

z External Cache

This option enables or disables “Level 2” secondary cache on the CPU, which

may improve performance.

Enabled (default) Enable cache.

Disabled Disable cache.

z CPU L2 Cache ECC Checking

This item allows you to enable/disable CPU L2 Cache ECC Checking.

The Choices: Enabled (default), Disable
