K8T89-A7 BIOS Setup
21
VIA OnChip IDE Device
If you highlight the literal “Press Enter” next to the “VIA OnChip IDE Device” label and then
press the enter key, it will take you a submenu with the following options:

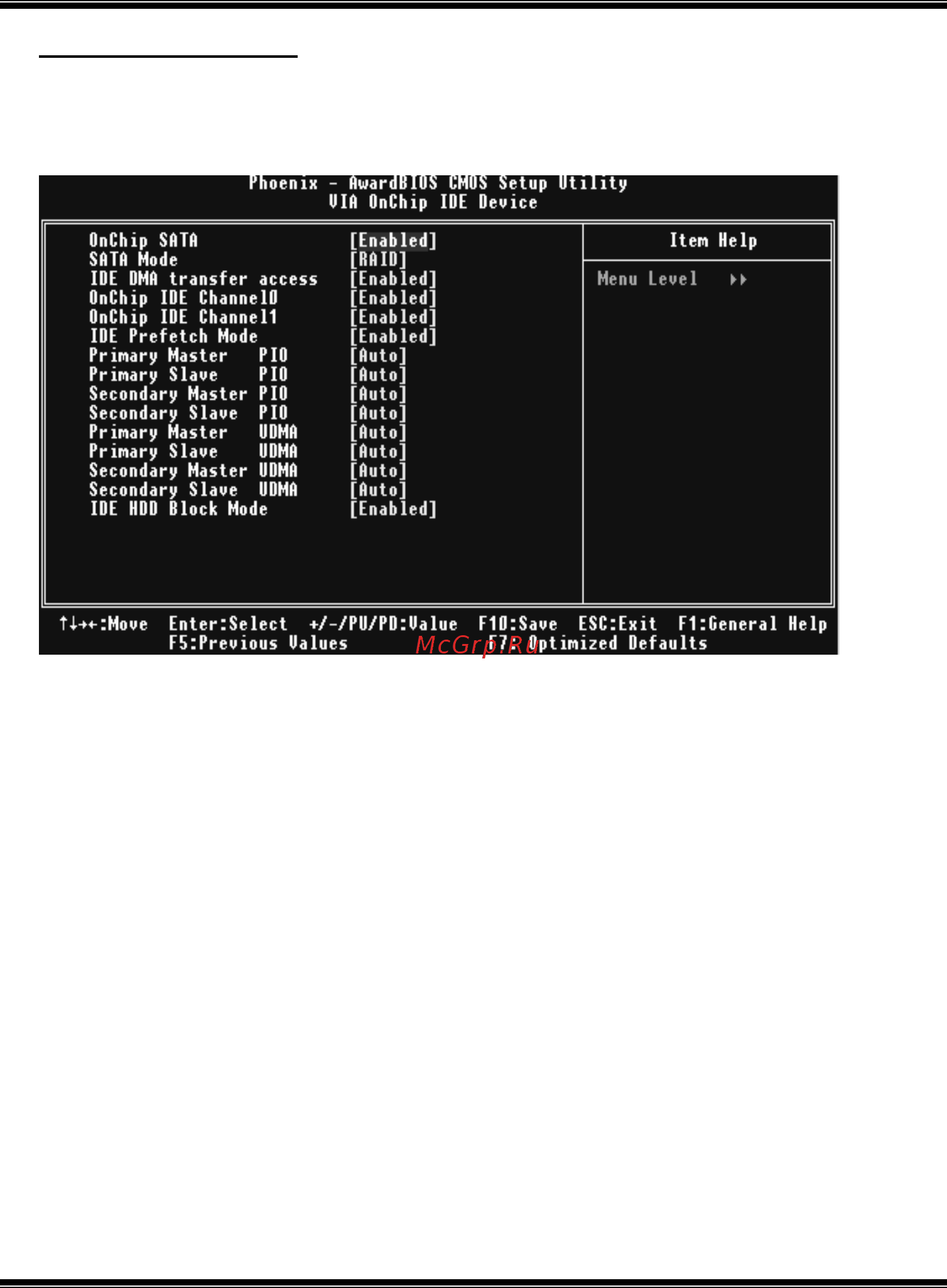

Figure 5.1: VIA OnChip IDE Device
z OnChip SATA
This option allows you to enable the onchip Serial ATA.
The Choices: Enabled (default), Disabled.
z SATA Mode
This option allows you to select SATA Mode.
The Choices: IDE (default), RAID.
z IDE DMA Transfer Access
This option allows you to select IDE DMA Transfer Access.
The Choices: Enabled (default), Disabled.
z OnChip IDE Channel 0/1
The motherboard chipset contains a PCI IDE interface with support for
two IDE channels. Select “Enabled” to activate the first and/or second IDE
interface. Select “Disabled” to deact ivate an interface if you are going to insta ll a
primary and/or secondary add-in IDE interface.
The Choices: Enabled (default), Disabled.
