K8T89-A7 BIOS Setup

Hard Disk Boot Priority

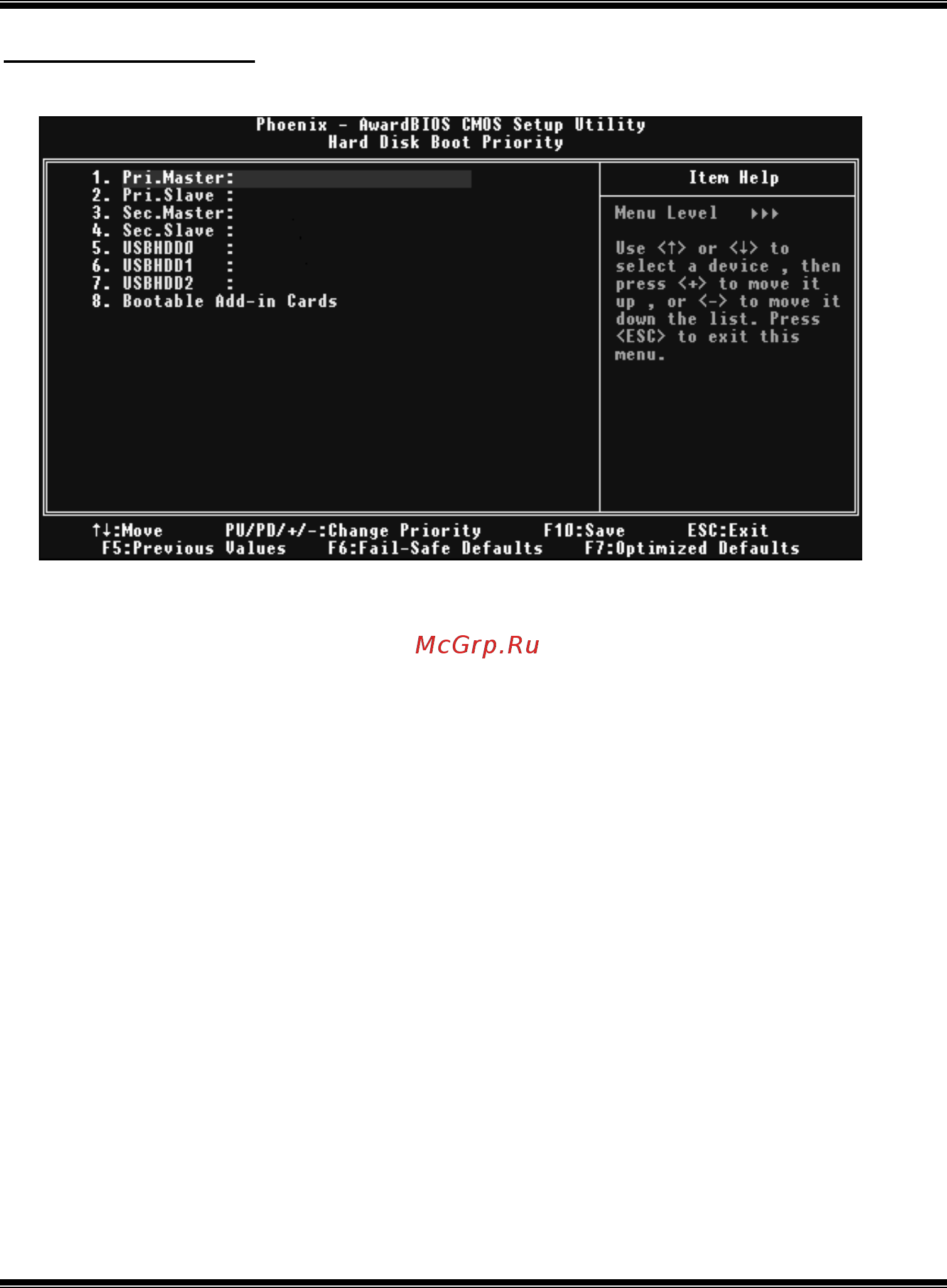

 Figure 3.1.1: Hard Disk Boot Priority

These BIOS attempt to arrange the Hard Disk boot sequence automatically.

T his will depend on which Hard Disk is insta lled.

The Choices:

Pri. Master, Pri. Slave, Sec. Master, Sec, Slave, USB HDD0, USB HDD1,

USB HDD2, and Bootable Add-in Cards.
