K8T89-A7
15

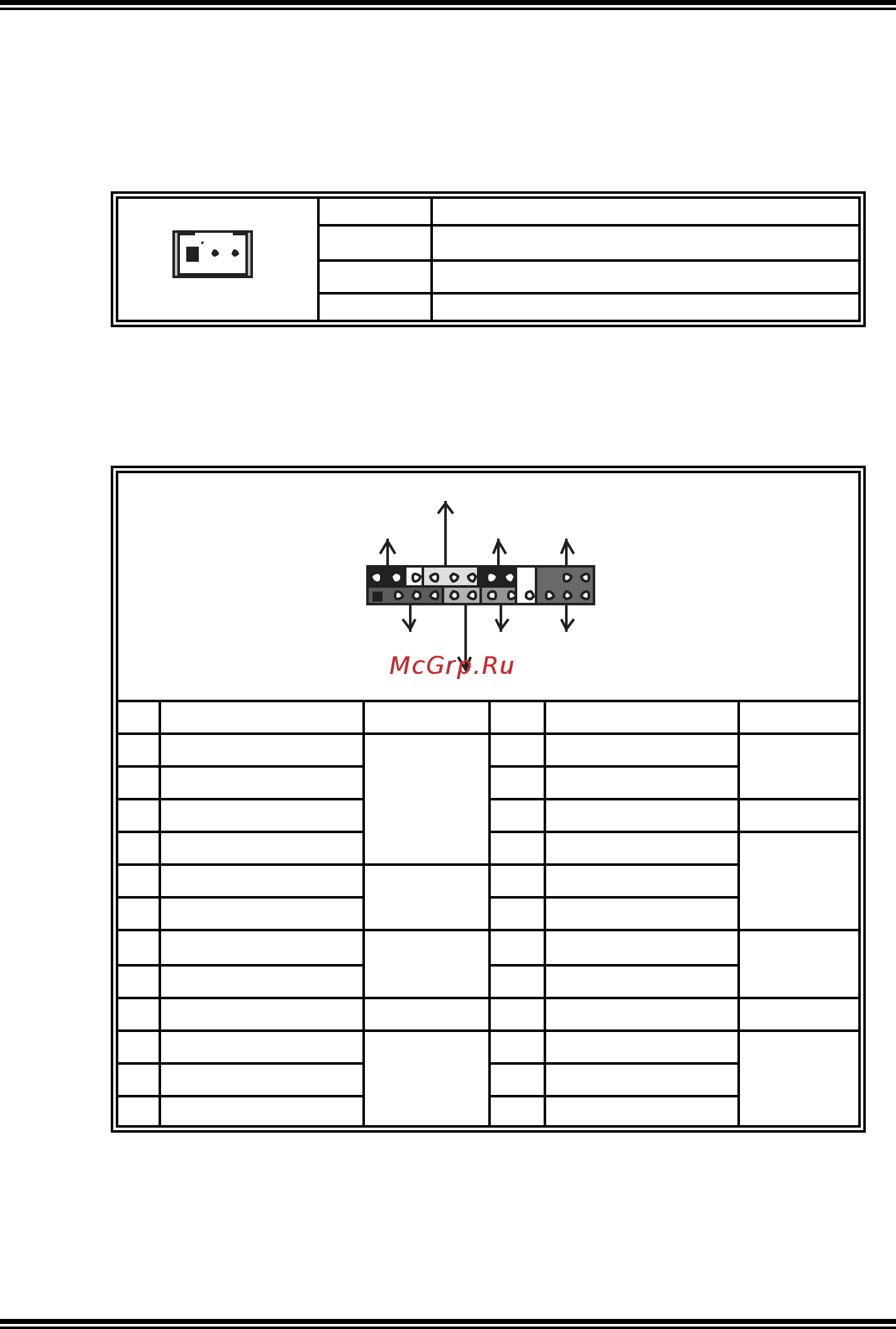

JWOL1: Wake on LAN Header (optional)
The connector powers up the system when a wakeup packet or signal
is received from the network. This feature requires the Wake up on
LAN function in BIOS is set to Enabled and that your system has an
ATX power supply with at least 720mA +5V standby power.
Pin Assignment
1 +5V_SB
2 Ground
13
3 Wake-up signal
JPANEL1: Front Panel Header
This 24-pin connector includes Power-on, Reset, HDD LED, Power LED,
Sleep button, speaker and IrDA Connection. It allows user to connect
the PC case’s front panel switch functions.
SLP
PWR_LED
On/Off IR
+
-
+
IR
SPK
HLED
RST
1
2
23
24
+
-
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3 N/A 4 Ground
Sleep
button
5 N/A 6 N/A N/A
7 Speaker
Speaker
Connector
8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-)
Hard drive
LED
12 Power LED (-)
Power LED
13 Ground 14 Power button
15 Reset control
Reset
button
16 Ground
Power-on
button
17 N/A 18 Key
19 N/A 20 Key
21 +5V 22 Ground
23 IRTX
IrDA
Connector
24 IRRX
IrDA
Connector
