Biostar K8T890-A7 [5/68] K8t89 a7

K8T89-A7

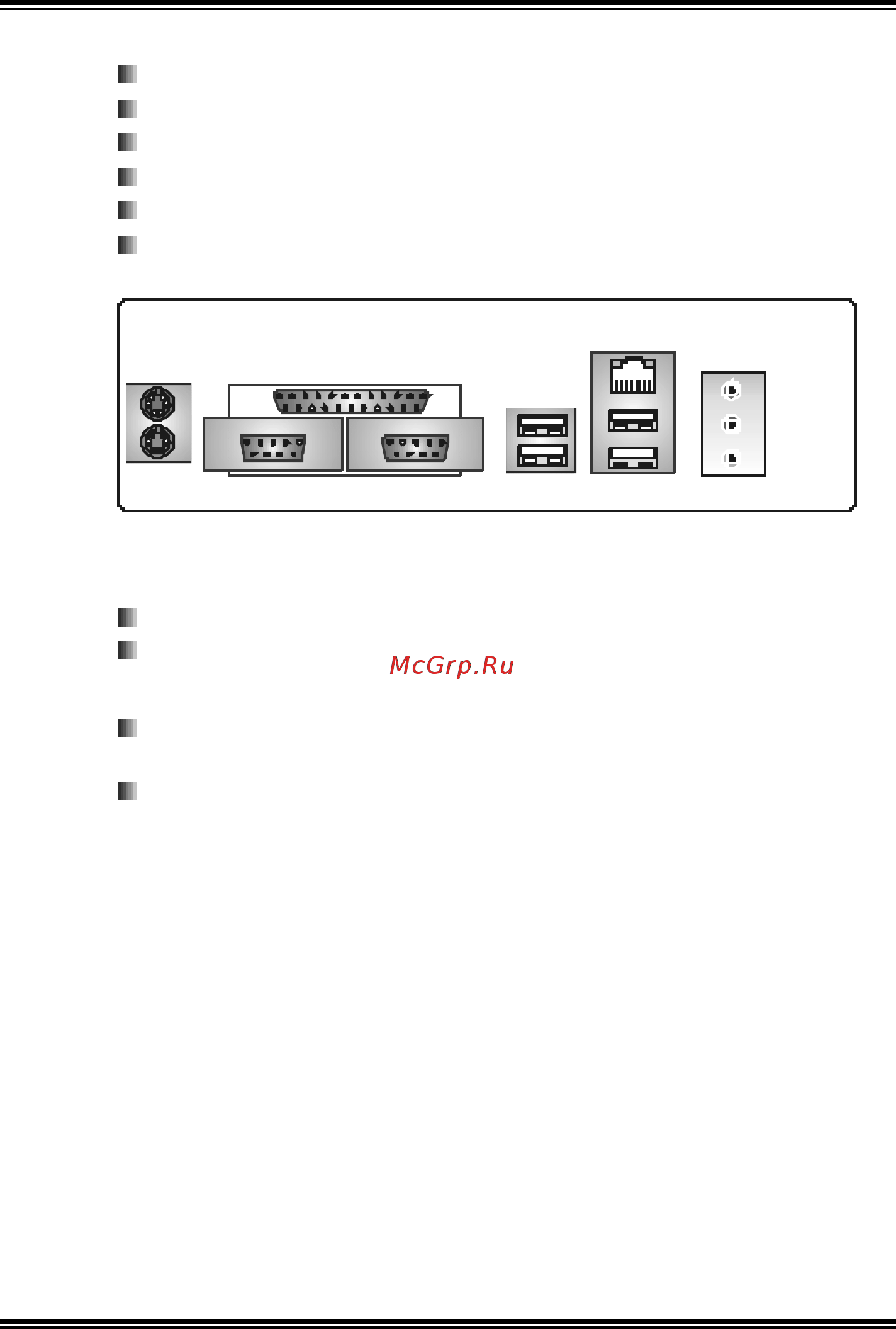

Back Panel I/O Connectors

4 USB 2.0 ports.

1 Serial port (COM2 is optional).

1 Parallel port.

1 RJ-45 LAN jack.

1 PS/2 Mouse & Keyboard port.

1 Vertical audio port including 1 line-in connector, 1 Line out

connector, and 1 MIC in connector.

Line In/

Surround

Line Out

Mi c In 1/

Base/Center

PS/2

Keyboard

PS/2

Mouse

LAN

USB x2COM1

Pri nter port

USB x2 COM2

(optional)

BB.. BBIIOOSS && SSooffttwwaarree

BIOS

Award legal BIOS.

Supports APM1.2, ACPI, and USB functions.

Software

Supports 9

Touch

, Flasher

, WinFlasher

, and

Warpspeeder

Offers the highest performance for Windows 98SE, Windows NT,

Windows 2000, Windows ME, Windows XP, Linux Fedora, and

UNIX series.
