NF500 754

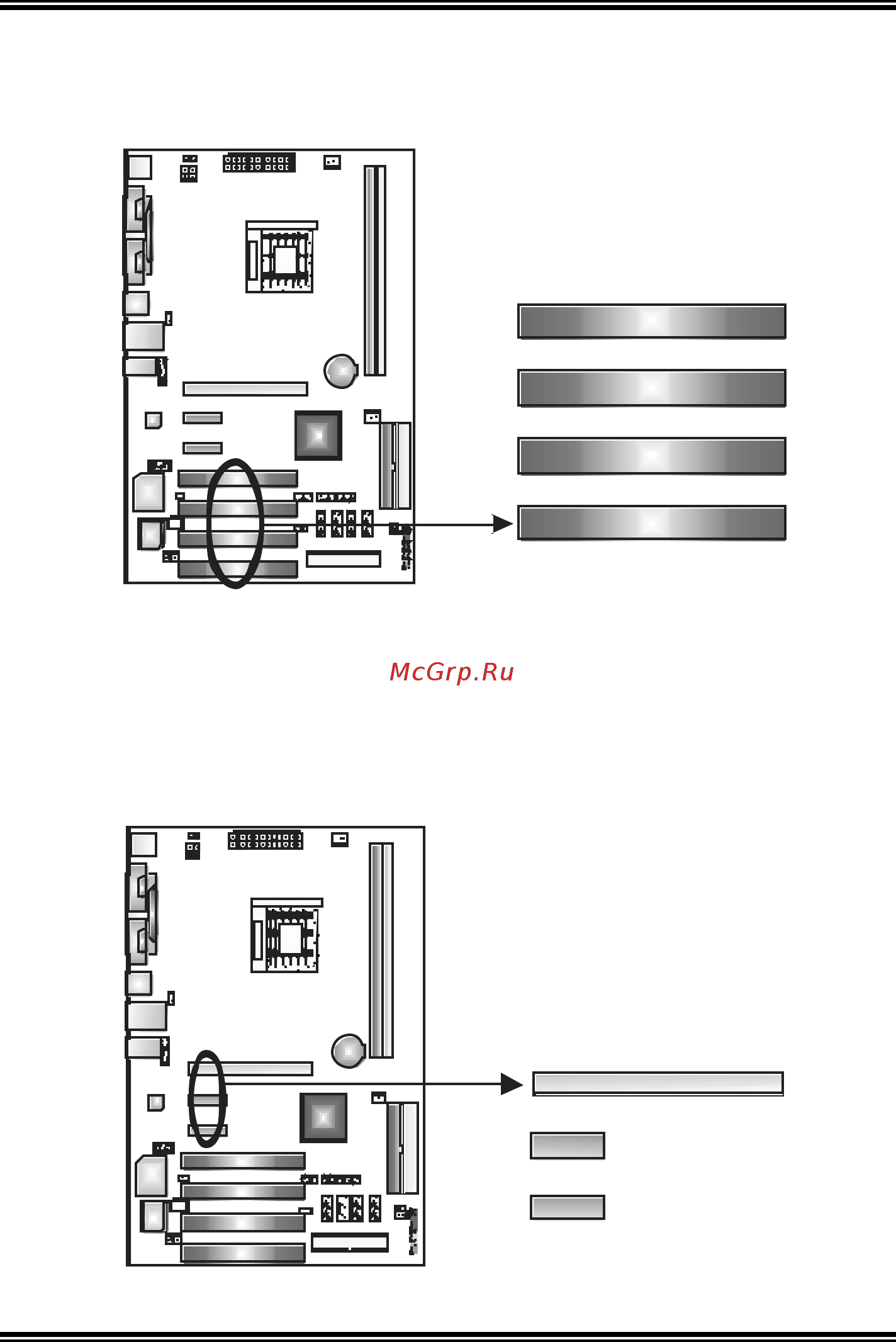

Peripheral Component Interconnect Slots: PCI1~PCI4

This motherboard is equipped with 4 standard PCI slot. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for expansion

cards. This PCI slot is designated as 32 bits.

PCI1

PCI3

PCI2

PCI4

PCI-Express Slots: PEX16/ PEX1_1/PEX1_2

PEX16:

- PCI Express 1.0a compliant.

- Maximum bandwidth is up to 4GB/s per direction.

PEX1_1/PEX1_2:

- PCI Express 1.0a compliant.

- Maximum bandwidth is up to 250MB/s per direction.

PEX16

PEX1_1

PEX1_2
