Biostar NF500 754 [8/65] Chapter 2 hardware installation

NF500 754

CHAPTER 2: HARDWARE INSTALLATION

2.1 CENTRAL PROCESSING UNIT (CPU)

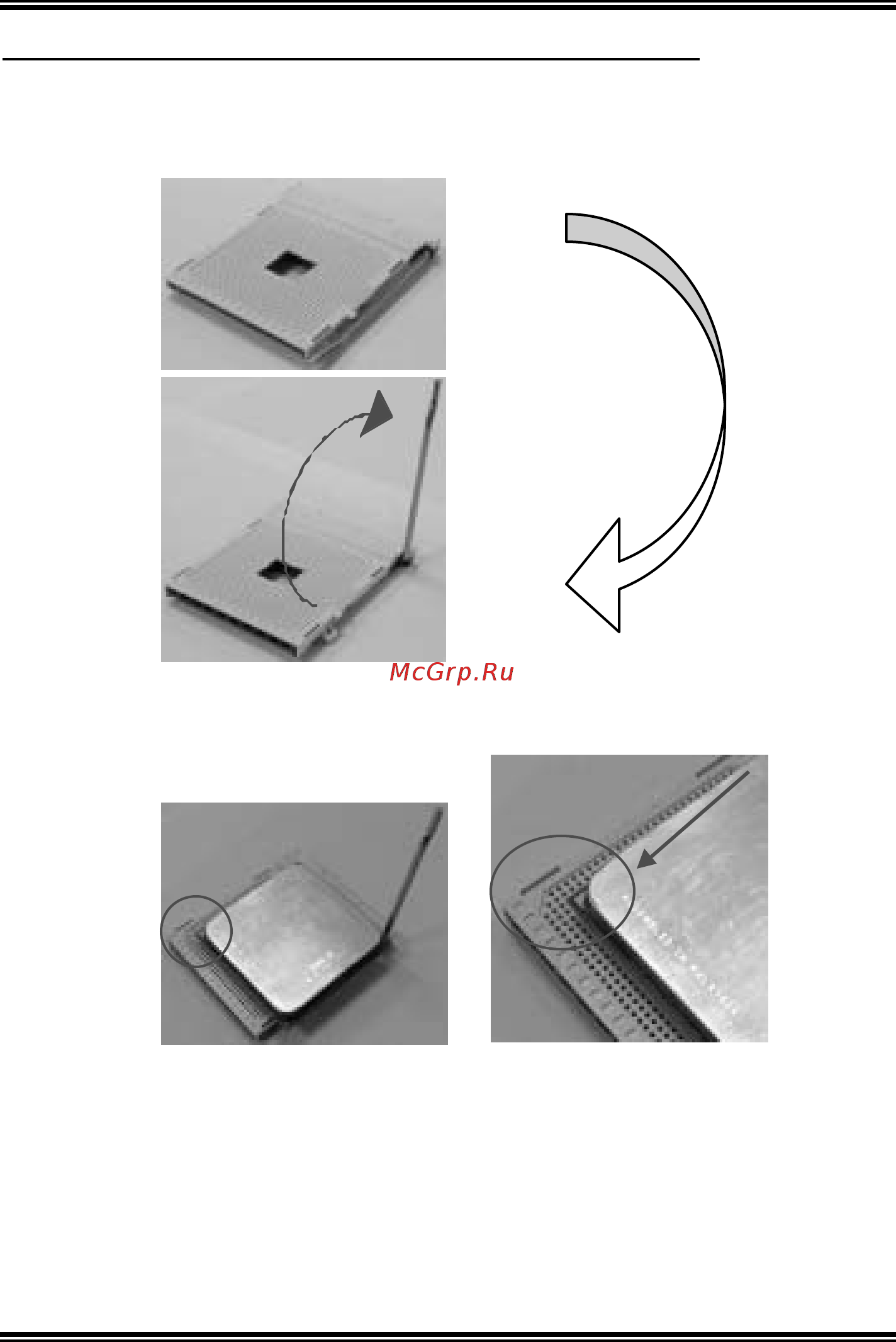

Step 1: Pull the lev er sideway s away from the socket and then raise the lever up to

a 90-degree angle.

Step 2: Look f or the black cut edge on socket, and the white dot on CPU should

point forwards this black cut edge. The CPU will fit only in the correct

orientation.
