NF500 754

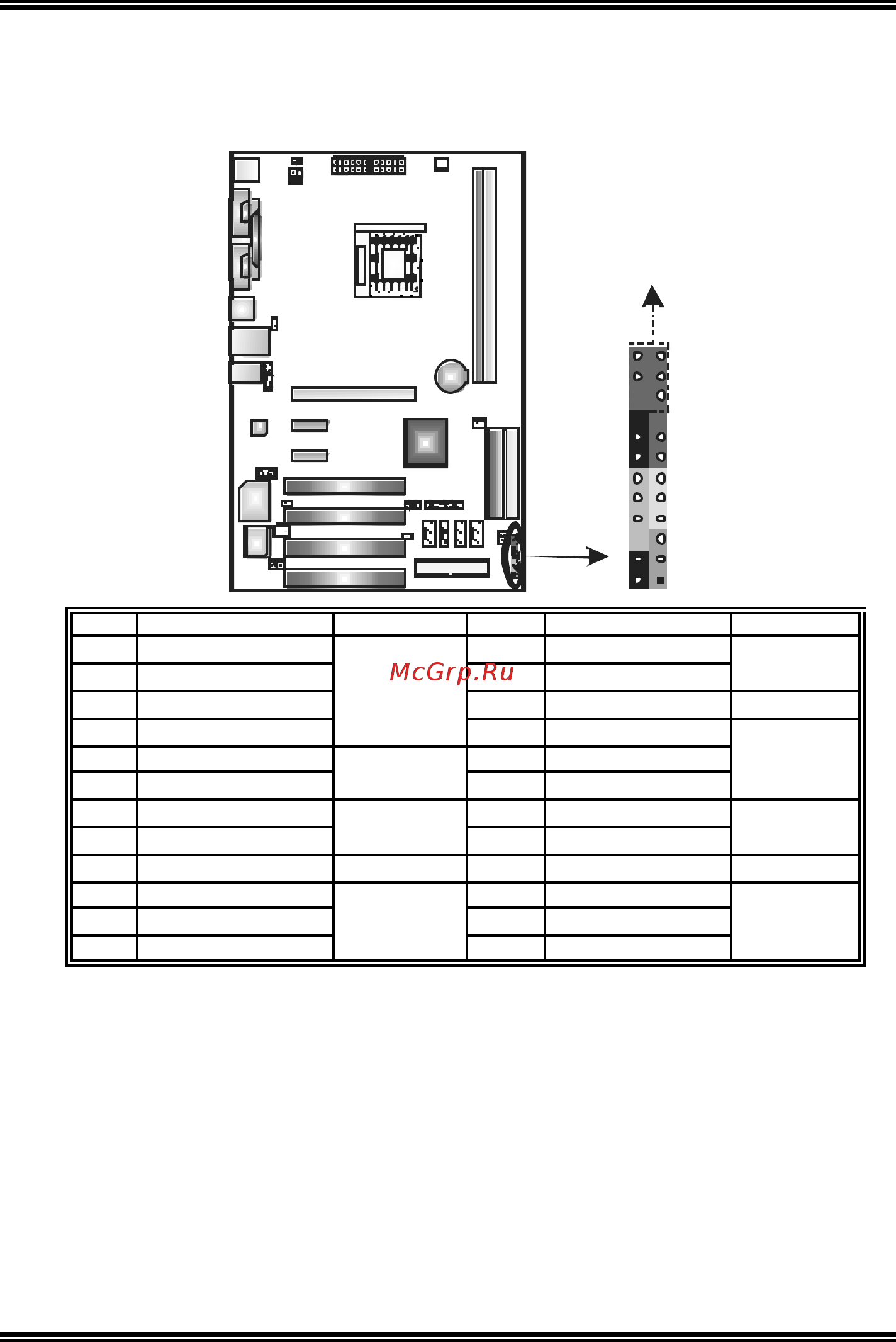

JPANEL1: Header for Front Panel Facilities

This 24-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep

button, speaker and IrDA Connection. It allows user to connect the PC case’s

front panel switch functions.

2324

optional

Pin Assignment Function Pin Assignment Function

1 +5V 2 Sleep control

3 N/A 4 Ground

Sleep button

5 N/A 6 N/A N/A

7 Speaker

Speaker

Connector

8 Power LED (+)

9 HDD LED (+) 10 Power LED (+)

11 HDD LED (-)

Hard drive LED

12 Power LED (-)

Power LED

13 Ground 14 Power button

15 Reset control

Reset button

16 Ground

Power-on

button

17 N/A 18 Key

19 N/A 20 Key

21 +5V 22 Ground

23 IRTX

IrDA Connector

(optional)

24 IRRX

IrDA Connector

(optional)
