NF500 754

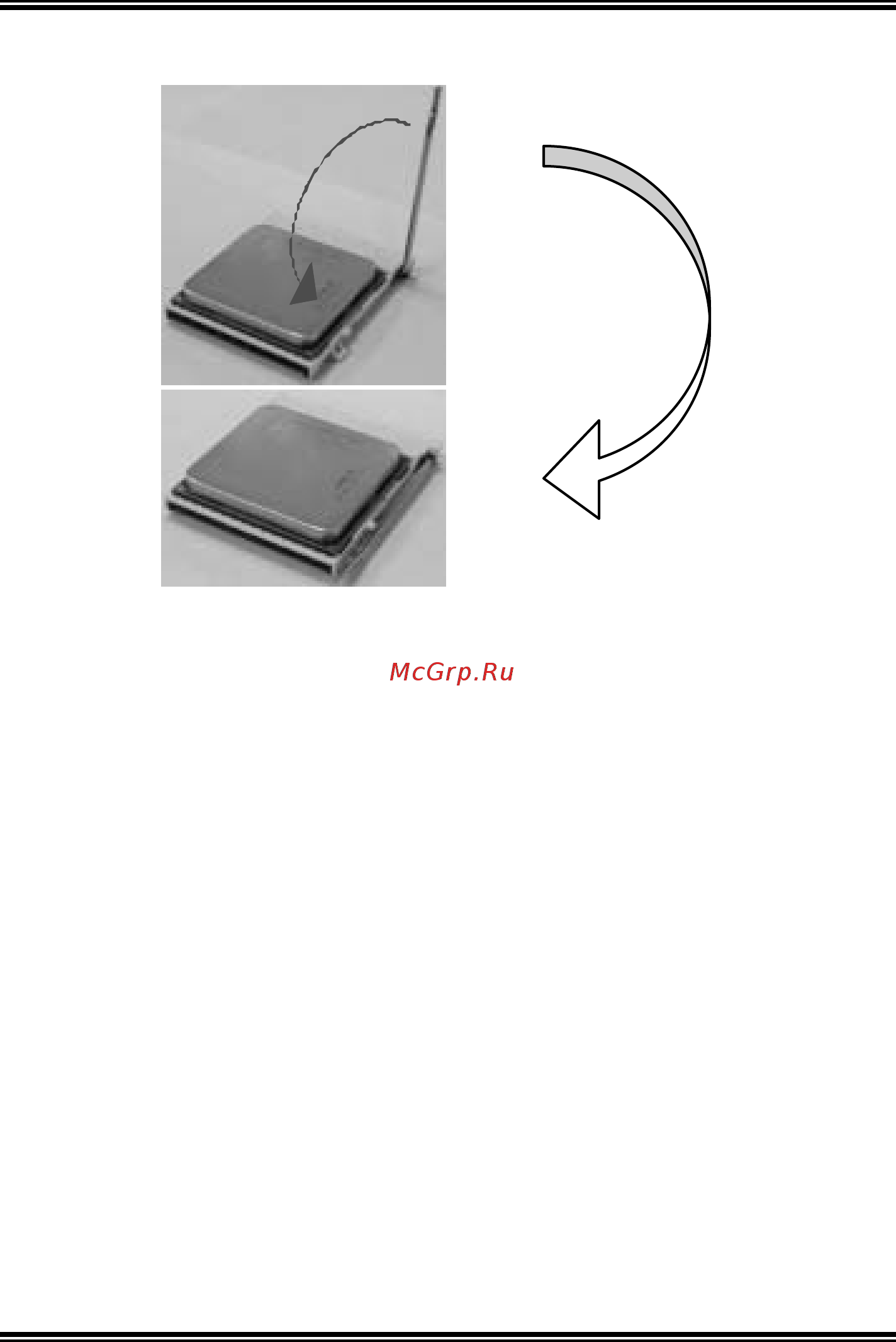

Step 3: Hold the CPU down firmly, and then close the lever to complete the

installation.

Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power

cable to the JCFAN1. This completes the installation.
