Biostar NF500 754 [31/65] Voltage panel

NF500 754

3. Voltage Panel

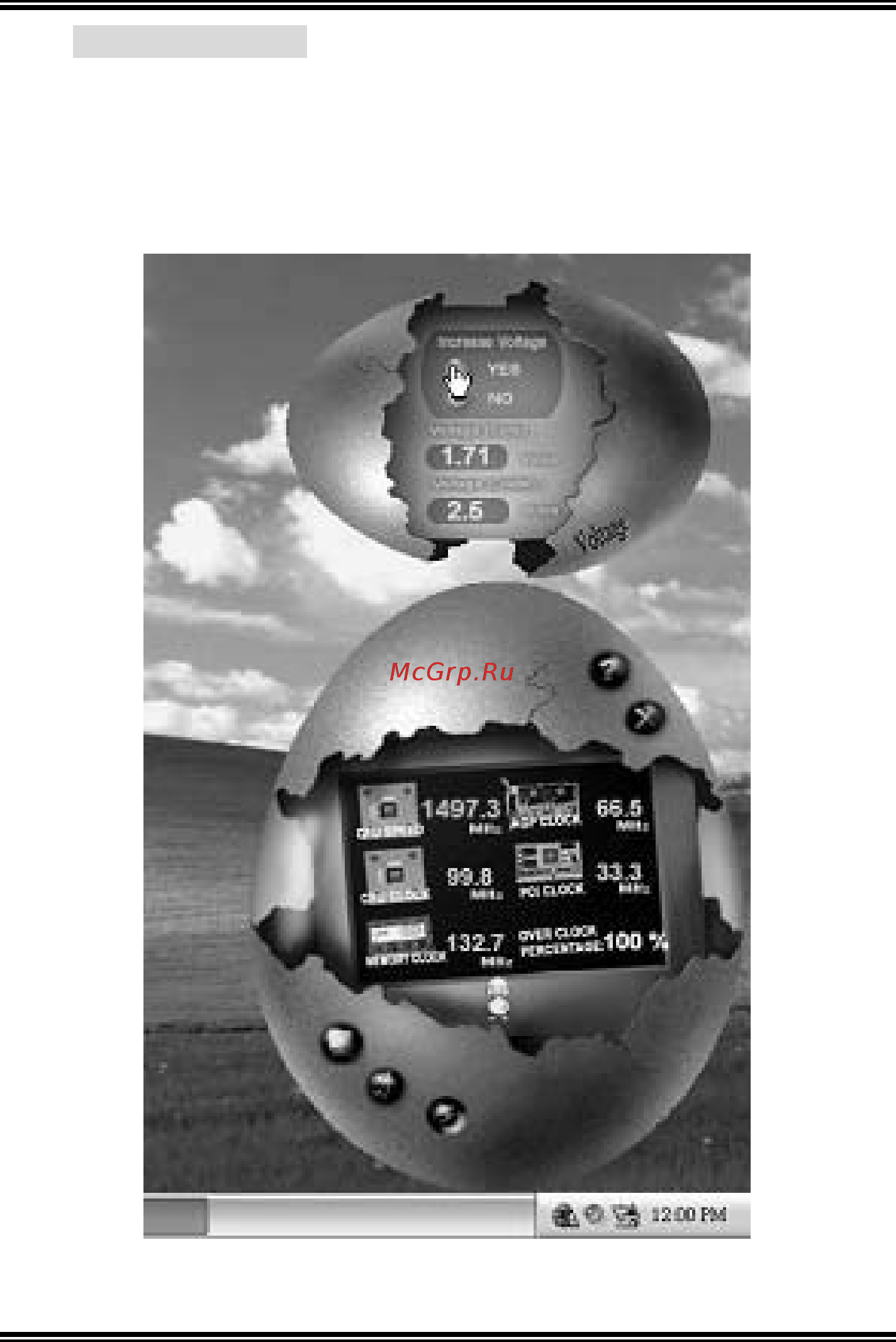

Click the Voltage button in Main Panel, the button will be highlighted

and the Voltage Panel will slide out to up as the following figure.

In this panel, you can decide to increase CPU core voltage and

Memory voltage or not. The default setting is “No”. If you want to get

the best performance of overclocking, we recommend you click the

option “Yes”.
