NF500 754
14

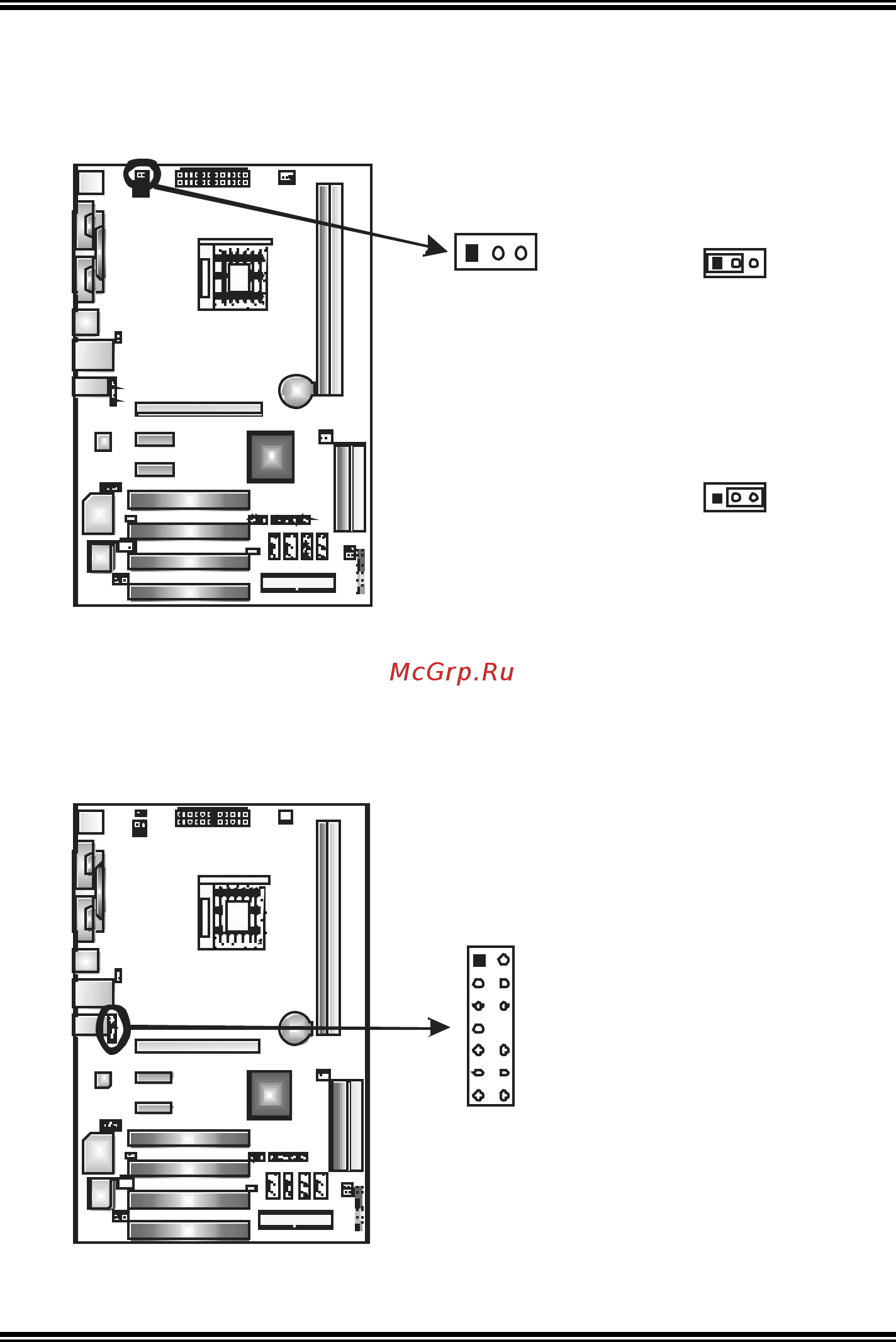

Power Source Header for PS/2 Keyboard/Mouse: JKBMSV1
Pin 1-2 Close: +5V for PS/2 key board and mouse.
Pin 2-3 Close: PS/2 keyboard and mouse are powered with +5V standby
v oltage.
13
Pin 1-2 close
1
3
13
Pin 2-3 close
Note: In order to s upport t his f uncti on “Power-on s ys tem via keyboard and mouse”,
“JKBMSV1” jumper cap should be plac ed on Pin 2-3.
Front Panel Audio-out Header: JFAUDIO1
This connector will allow user to connect with the f ront audio out put headers on
the PC case. It will disable the output on back panel audio connectors.
Pin Assignment
1 MIC-in/
Stereo MIC-in R
2 Ground
3 Stereo MIC-in L
4 Audio power
5 Right line-out/
Speaker-out Right.
6 Right line-out/
Speaker-out Right
7 Reserved
8 Key
9 Left line-out/
Speaker-out Left
10 Left line-out/
Speaker-out Left
11 Right line-in (optional)
12 Right line-in (optional)
13 Left line-in (optional)
1
13
14
2
14 Left line-in (optional)
