NF500 754

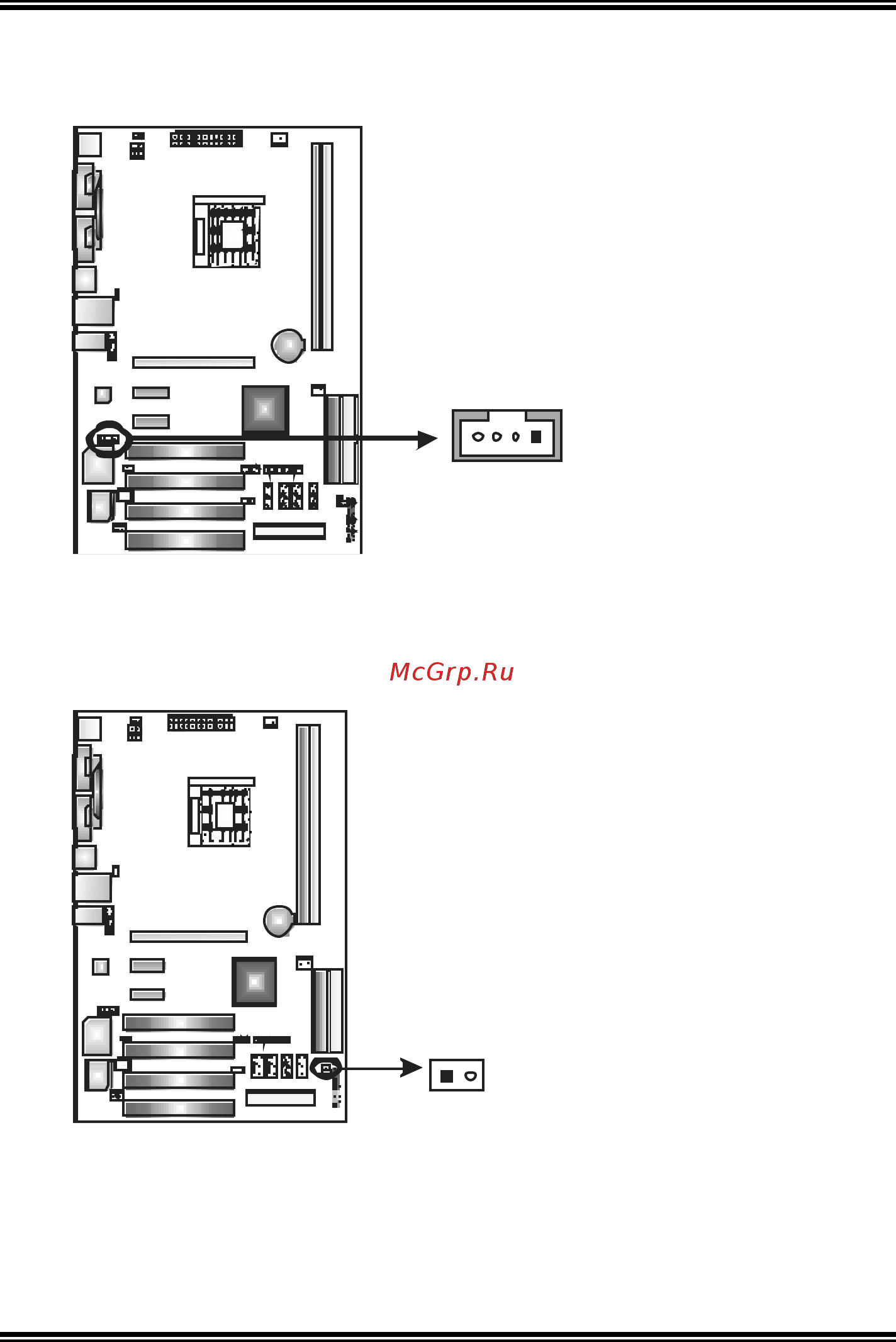

CD-ROM Audio-in Connector: JCDIN1

This connector allows user to connect the audio source f rom the v ariety dev ices,

like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..

Assignment

1 Left channel input

2 Ground

3 Ground

4 Right channel input

Case Open Headers: JCI1

This connector allows system to monitor PC case open status. If the signal has

been triggered, it will record to the CMOS and show the message on next

boot-up.

Assignment

1 Case open signal

JCI1

2 Ground
